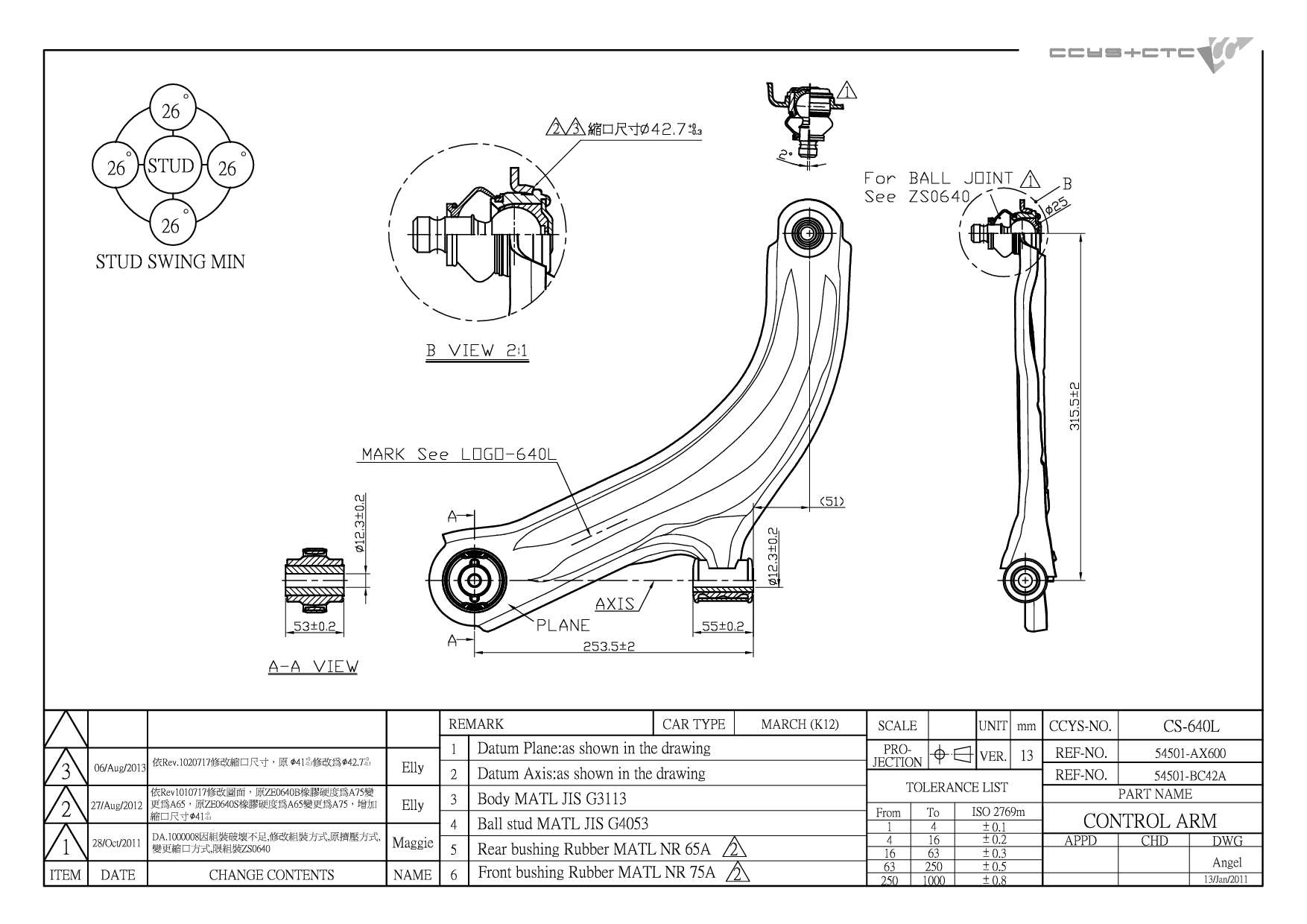

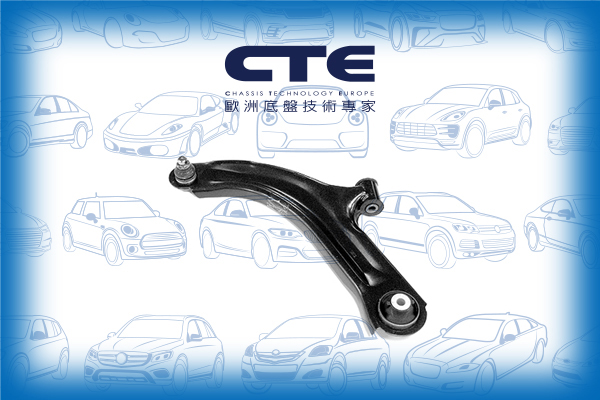

CS-640L
| Designation | Control Arm |
| Position | FRONT LOWER LH |
| OE No. | 40NI069 / 54501-8Y50A / 54501-8Y50B / 54501-AX00B / 54501-AX00C / 54501-AX00E / 54501-AX600 / 54501-AX60B / 54501-BC41A / 54501-BC42A |
| Length | 383.5 mm |
| Width | 392.3 mm |
| Height | 76.8 mm |
| Net Weight | 2.27 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |

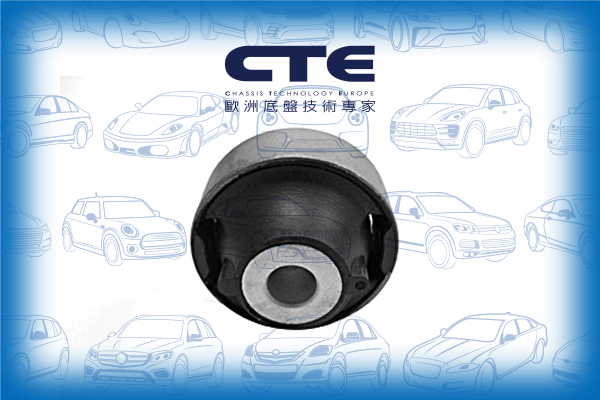

CBH06048 | FRONT LOWER ARM REAR | 54570-AX600 |
|
 |
CBH06049 | FRONT LOWER ARM INNER | 54560-AX600 82 00 183 569 850040613 |
|
 |

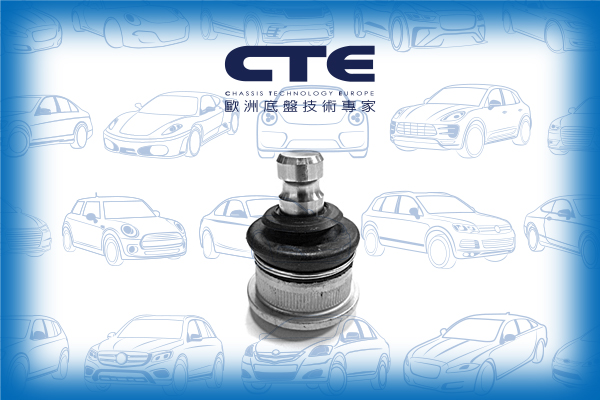

CBJ06022 | FRONT LOWER LH/ RH | 40160-AX000 54500-AX600 54500-AX60B 54500-BC41A 54500-BC42A 54501-AX600 54501-AX60B 54501-BC41A 54501-BC42A 60 40 135 517 |
|
 |

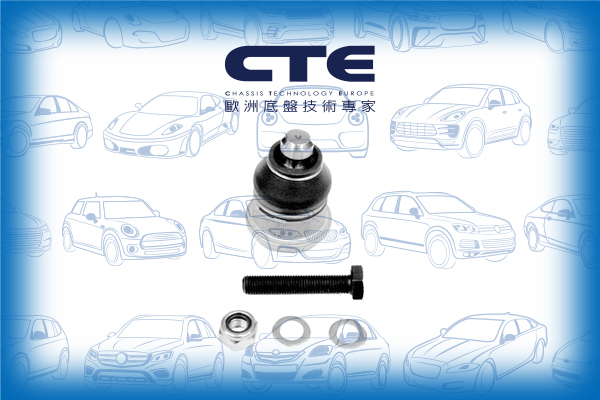

CBJ06022A | FRONT LOWER LH/RH | 40160-AX000 54500-AX600 54500-AX60B 54500-BC41A 54500-BC42A 54501-AX600 54501-AX60B 54501-BC41A 54501-BC42A 60 40 135 517 |
|
 |
CS-640L | FRONT LOWER LH | 40NI069 54501-8Y50A 54501-8Y50B 54501-AX00B 54501-AX00C 54501-AX00E 54501-AX600 54501-AX60B 54501-BC41A 54501-BC42A |
|
 |

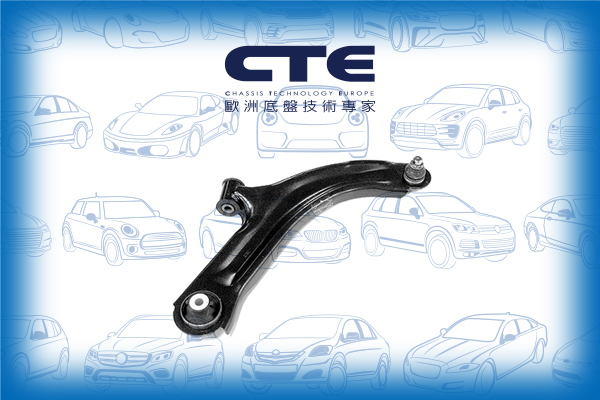

CS-640R | FRONT LOWER RH | 40NI070 54500-8Y50A 54500-8Y50B 54500-AX00B 54500-AX00E 54500-AX600 54500-AX60B 54500-BC41A 54500-BC42A |
|
 |
CSL06056 | FRONT (A= 247.5MM) | 54611-BH01A 54618-9U004 54618-AX600 54618-BC40A 55 11 079 16R 55 11 081 47R 82 00 127 308 82 00 605 381 82 01 079 463 |
|
 |
CTE06007L | FRONT AXLE LH (C= M12X1.25) | 48520-3U025 48527-1U61A D8520-EW00A MQ700059 |
|
 |
CTE06007R | FRONT AXLE RH (C= M12X1.25) | 48640-3U025 48647-1U61A D8640-EW00A MQ700060 |
| Model (Year) |
|---|
|
MICRA C+C III (K12) | MARCH MICRA III (K12) | MARCH |
