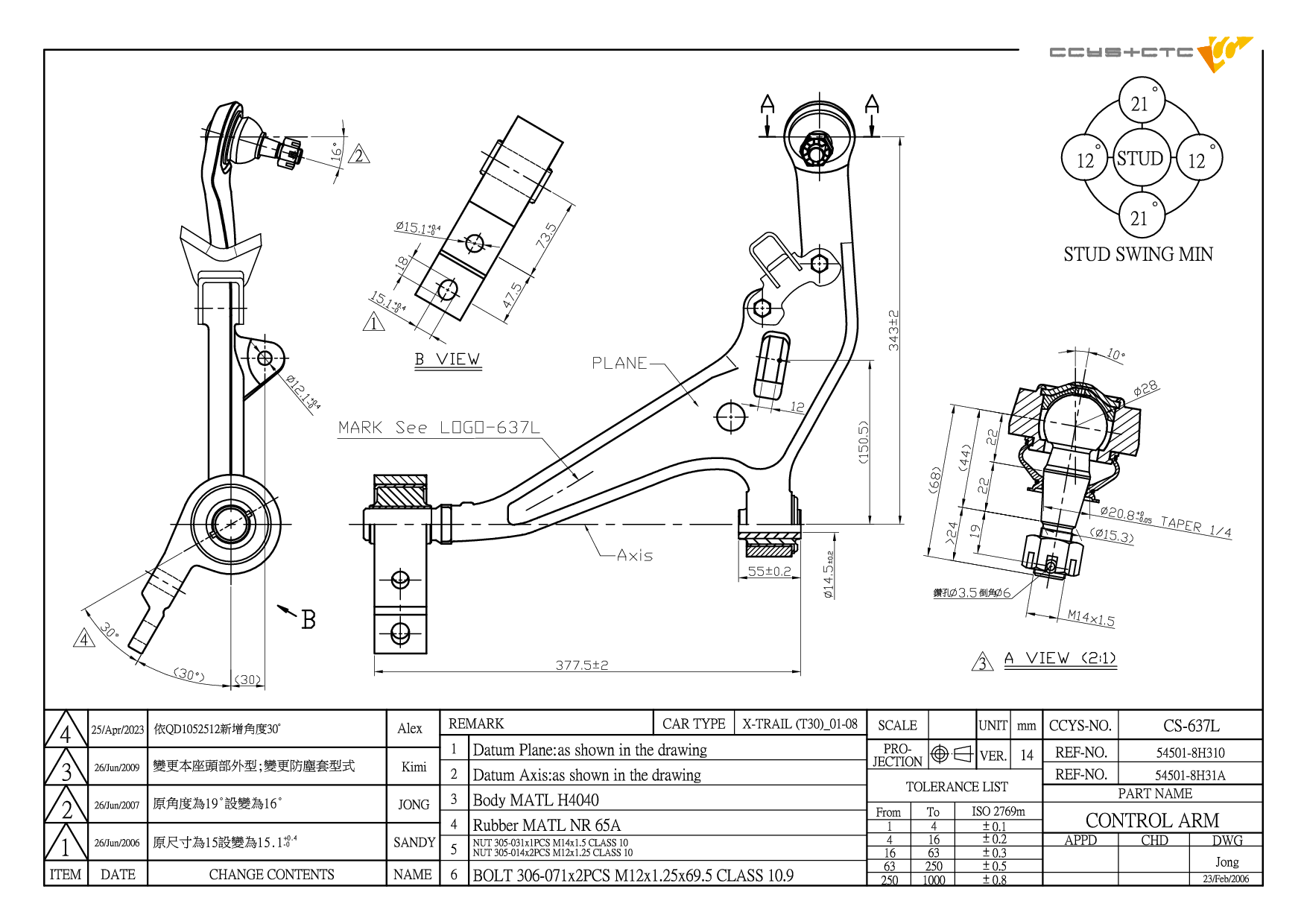

CS-637L
| Designation | Control Arm |
| Position | FRONT LOWER LH |
| OE No. | 54501-8H310 / 54501-8H31A |
| Length | 442.8 mm |
| Width | 498.1 mm |
| Height | 153.1 mm |
| Net Weight | 4.08 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH06039 | FRONT LOWER ARM INNER | 54500-8H310 54500-8H31A 54501-8H310 54501-8H31A |
|
 |
CBH06045 | FRONT LOWER ARM REAR | 54500-8H310 54500-8H31A 54501-8H310 54501-8H31A 54550-8H300 |
|
 |
CBH06062 | REAR AXLE, LEFT, RIGHT | 54476-8H300 |
|
 |
CRE06028 | D= M14X1.5 , C= M16X1.0 | 48521-4M500 48521-4M525 48521-4M526 48521-4M527 48521-4M528 48521-4M529 48521-4M585 48521-4M586 48521-4M587 48521-4M588 48521-8H300 48521-8H325 48521-8H326 48521-8H327 48521-8H328 48521-8H385 48521-8H386 48521-AR000 48521-AR025 48521-AR026 48521-AR027 485 |
|
 |
CS-637L | FRONT LOWER LH | 54501-8H310 54501-8H31A |
|
 |
CS-637R | FRONT LOWER RH | 54500-8H310 54500-8H31A |
|
 |
CSL06008 | REAR (A= 116MM) | 15196366 56261-50J00 56261-86J00 56261-86J25 56261-90J01 56262-50J00 8-97214-822-0 8-97214-822-1 8-97944-575-0 97944575 |
|
 |
CSL06060L | FRONT LH (A= 65MM) | 45750-09000 45750-09001 54668-8H300 54668-AD000 |
|
 |
CSL06060R | FRONT RH (A= 65MM) | 45751-09000 45751-09001 54618-8H300 54618-AD000 |
|
 |
CSL06066 | REAR (A= 115.6MM) | 56261-EQ000 |
|
 |
CTE06008 | FRONT AXLE LH/ RH (C= M14X1.5) | 48520-0P725 48520-0P726 48520-0W025 48520-3S525 D8520-0P725 D8520-VK90A |
| Model (Year) |
|---|
|
X-TRAIL I (T30) |
