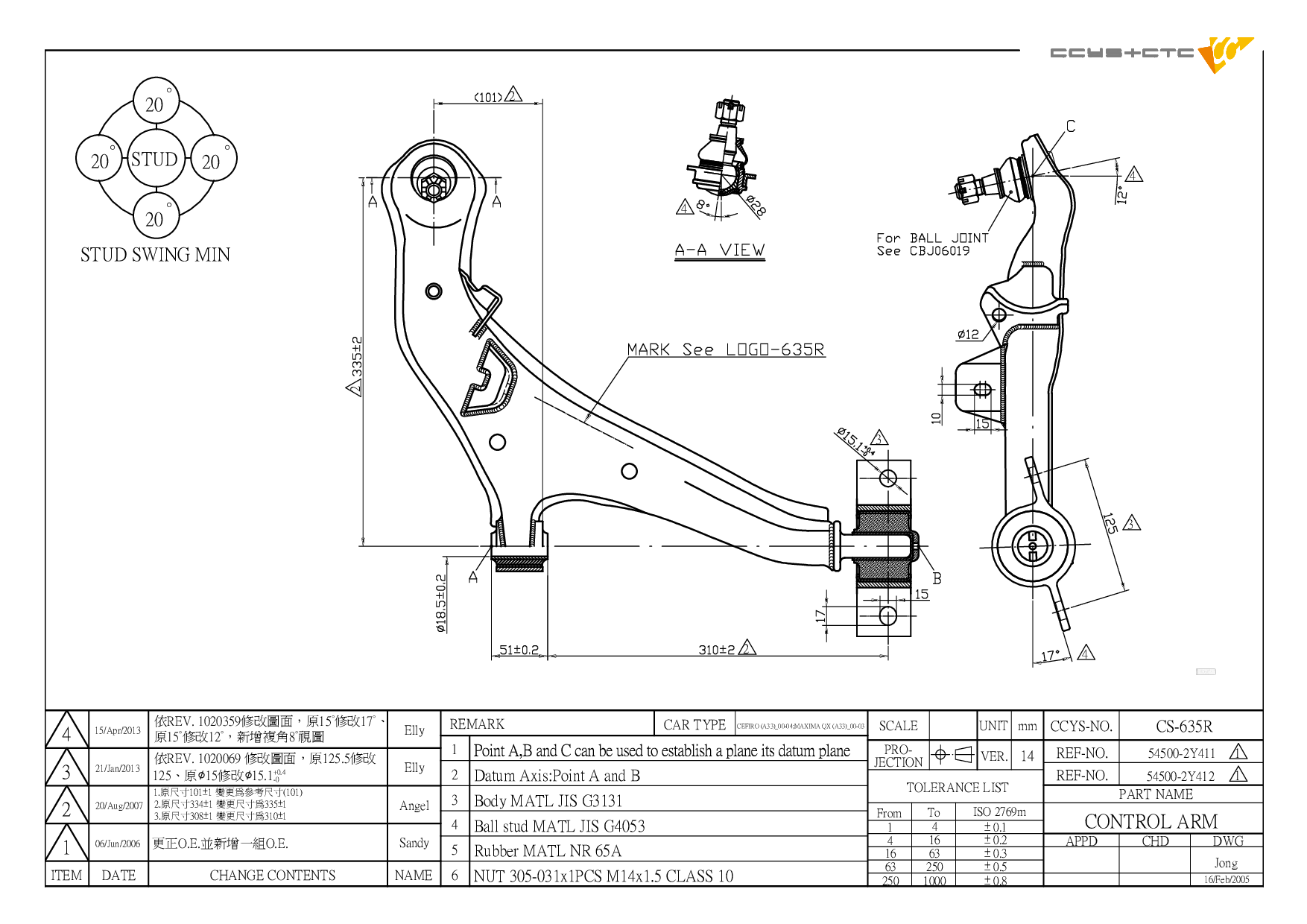

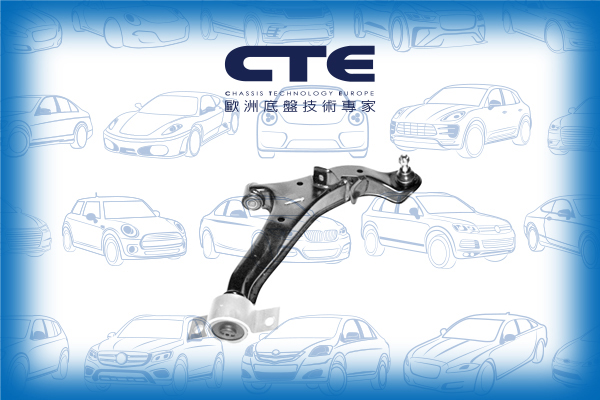

CS-635R
| Designation | Control Arm |
| Position | FRONT LOWER RH |
| OE No. | 54500-2Y400 / 54500-2Y410 / 54500-2Y411 / 54500-2Y412 / 54500-2Y420 / 54500-2Y470 / 54500-5Y720 / 54500-6Y301 |
| Length | 451.3 mm |
| Width | 487.8 mm |
| Height | 109.5 mm |
| Net Weight | 4.83 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBJ06008 | FRONT LOWER LH/ RH | 40160-31U00 40160-39U00 40160-41U00 40160-41U01 40160-41U02 40161-41U00 40161-41U01 40161-41U02 |
|
 |

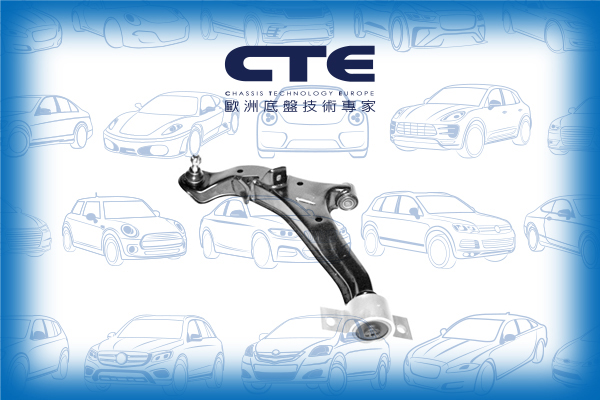

CS-635L | FRONT LOWER LH | 54501-2Y400 54501-2Y410 54501-2Y411 54501-2Y412 54501-2Y420 54501-2Y470 54501-5Y720 54501-6Y301 |
|
 |
CS-635R | FRONT LOWER RH | 54500-2Y400 54500-2Y410 54500-2Y411 54500-2Y412 54500-2Y420 54500-2Y470 54500-5Y720 54500-6Y301 |
| Model (Year) |
|---|
|
I30 |
| Model (Year) |
|---|
|
CEFIRO III Saloon (A33) MAXIMA / MAXIMA QX IV (A32) MAXIMA / MAXIMA QX IV Station Wagon (A32) MAXIMA / MAXIMA QX V (A33) |
