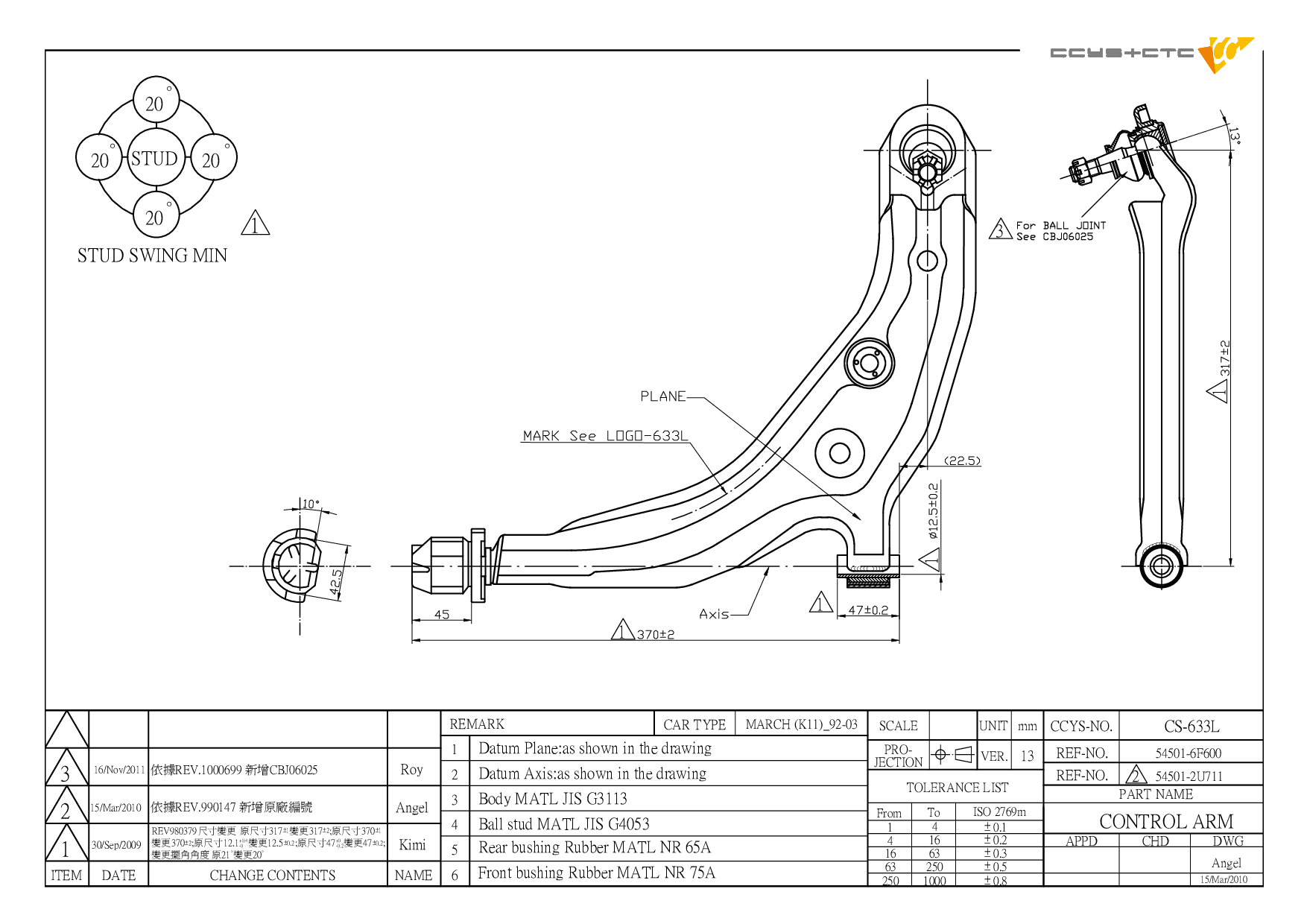

CS-633L
| Designation | Control Arm |
| Position | FRONT LOWER LH (B= 13.1mm) |
| OE No. | 54501-2U001 / 54501-2U711 / 54501-6F600 / 54501-72B01 |
| Length | 426.9 mm |
| Width | 365.6 mm |
| Height | 96 mm |
| Net Weight | 2.8 kg |
NISSAN MICRA II (K11) 1.0i 1.3i 16V Construction Year from 02.1998
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH06010 | FRONT LOWER ARM REAR | 54476-41B02 54479-41B02 |
|
 |
CBH06011 | FRONT LOWER ARM INNER | 54560-17B01 |
|
 |
CBH06031 | FRONT LOWER ARM REAR | 54500-2U001 54500-2U711 54500-6F600 54500-72B01 54501-2U001 54501-2U711 54501-6F600 54501-72B01 |
|
 |
CBH06044 | FRONT LOWER ARM INNER | 54500-2U001 54500-2U711 54500-6F600 54500-72B01 54501-2U001 54501-2U711 54501-6F600 54501-72B01 |
|
 |
CBJ06004 | FRONT LOWER LH/ RH | 40160-21B00 40160-4F100 40160-4F105 |
|
 |
CBJ06012 | FRONT LOWER LH/ RH | 1954431 40160-0F000 40160-3T425 40160-3T426 40160-50W00 40160-50W01 40160-50W10 40160-50W25 40160-93G00 40160-93G25 40160-93G26 40160-S0W25 40161-50W01 40161-93G26 50160-50W10 |
|
 |
CBJ06025 | FRONT LOWER LH/ RH (B= 13.1MM) | 40160-2U711 40160-6F600 |
|
 |
CS-609L | FRONT LOWER LH (B= 12.35MM) | 54501-44B00 54501-4F101 54501-4F102 54501-4F105 54501-4F150 |
|
 |
CS-609R | FRONT LOWER RH (B= 12.35MM) | 54500-44B00 54500-4F101 54500-4F102 54500-4F105 54500-4F150 |
|
 |
CS-633L | FRONT LOWER LH (B= 13.1MM) | 54501-2U001 54501-2U711 54501-6F600 54501-72B01 |
|
 |
CS-633R | FRONT LOWER RH (B= 13.1MM) | 54500-2U001 54500-2U711 54500-6F600 54500-72B01 |
|
 |
CSL06008 | REAR (A= 116MM) | 15196366 56261-50J00 56261-86J00 56261-86J25 56261-90J01 56262-50J00 8-97214-822-0 8-97214-822-1 8-97944-575-0 97944575 |
|
 |
CSL06015 | REAR (A= 91MM) | 20470-AE000 20470-AE001 20470-AE00C 20470-AE010 56261-0E000 56261-47B01 56261-4F701 56261-4F702 56261-4F710 56261-4F725 56261-6F600 |
|
 |
CSL06018 | FRONT | 54618-47B00 54618-47B01 54618-47B0A 54630-28B00 |
|
 |
CTE06005 | FRONT AXLE LH/ RH (C= M12X1.25) | 48520-01B25 48520-17B25 48520-41B25 |
| Model (Year) |
|---|
|
MICRA II (K11) | MARCH | VERITA / MARCH | VERITA |
