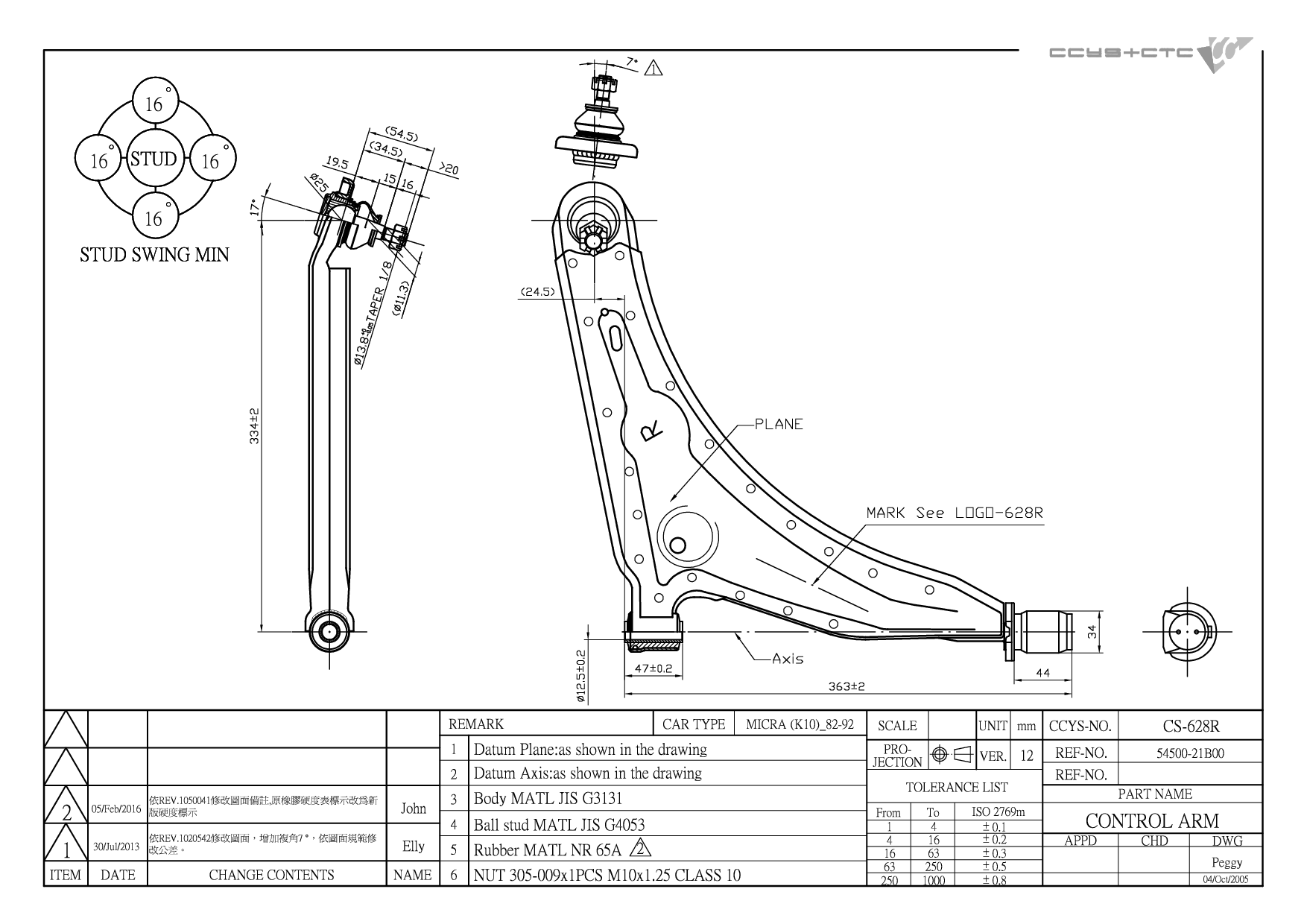

CS-628R
| Designation | Control Arm |
| Position | FRONT LOWER RH |
| OE No. | 54100-04B00 / 54500-21B00 |
| Length | 418 mm |
| Width | 366 mm |
| Height | 90 mm |
| Net Weight | 2.3 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH06011 | FRONT LOWER ARM INNER | 54560-17B01 |
|
 |

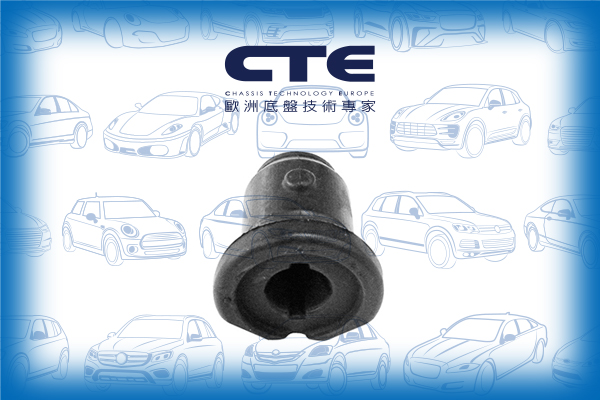

CBH06043 | FRONT LOWER ARM REAR | ||
 |

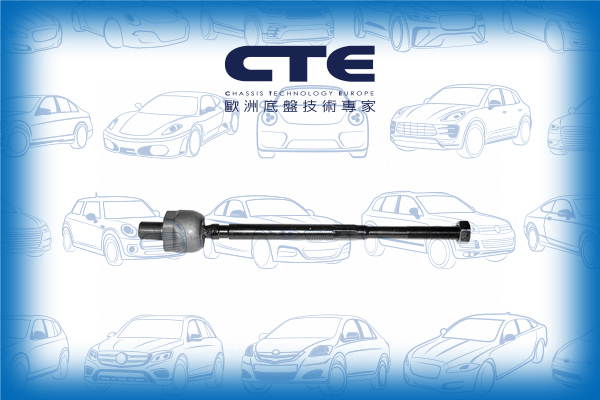

CRE06003 | D= M12X1.25 , C= M16X1.0 | 48521-35F00 48521-70A00 48521-70A06 48521-D0100 |
|
 |

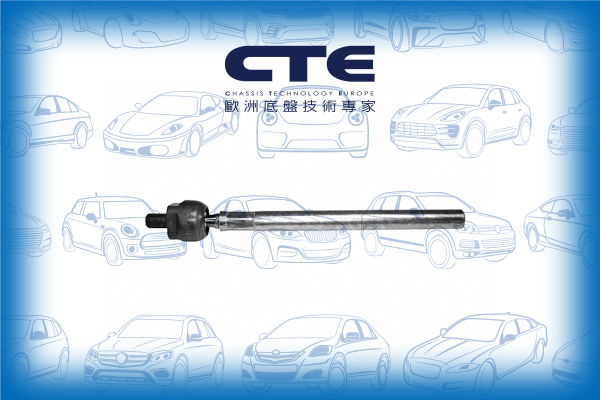

CRE06009 | FRONT AXLE LH/RH INNER | 48521-A0300 48521-A03G0 48521-A05G0 |
|
 |

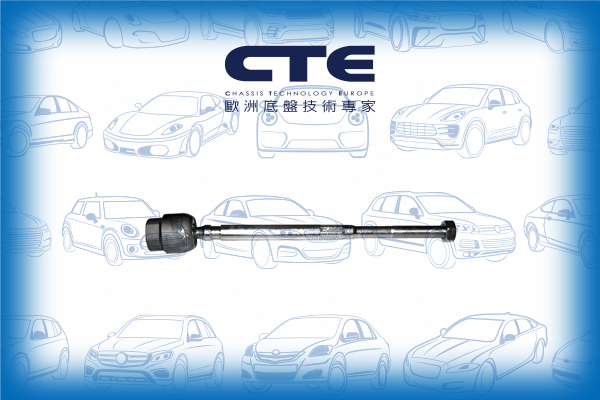

CRE06023 | D= M12X1.25 , C= M18X1.0 | 48521-01B25 48521-17B00 48521-17B25 |
|
 |

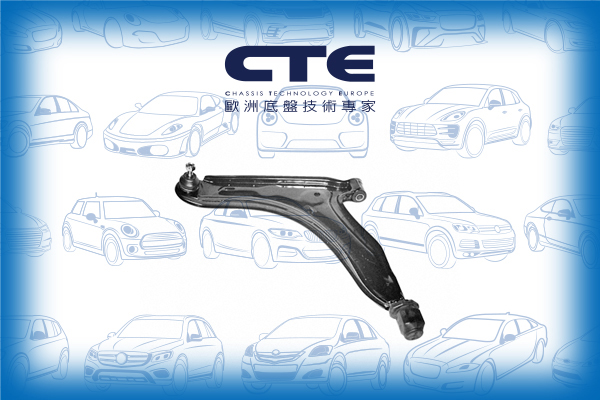

CS-628L | FRONT LOWER LH | 54101-04B00 54501-21B00 |
|
 |
CS-628R | FRONT LOWER RH | 54100-04B00 54500-21B00 |
|
 |
CSL06015 | REAR (A= 91MM) | 20470-AE000 20470-AE001 20470-AE00C 20470-AE010 56261-0E000 56261-47B01 56261-4F701 56261-4F702 56261-4F710 56261-4F725 56261-6F600 |
|
 |
CTE06005 | FRONT AXLE LH/ RH (C= M12X1.25) | 48520-01B25 48520-17B25 48520-41B25 |
| Model (Year) |
|---|
|
MICRA I (K10) | MARCH |
