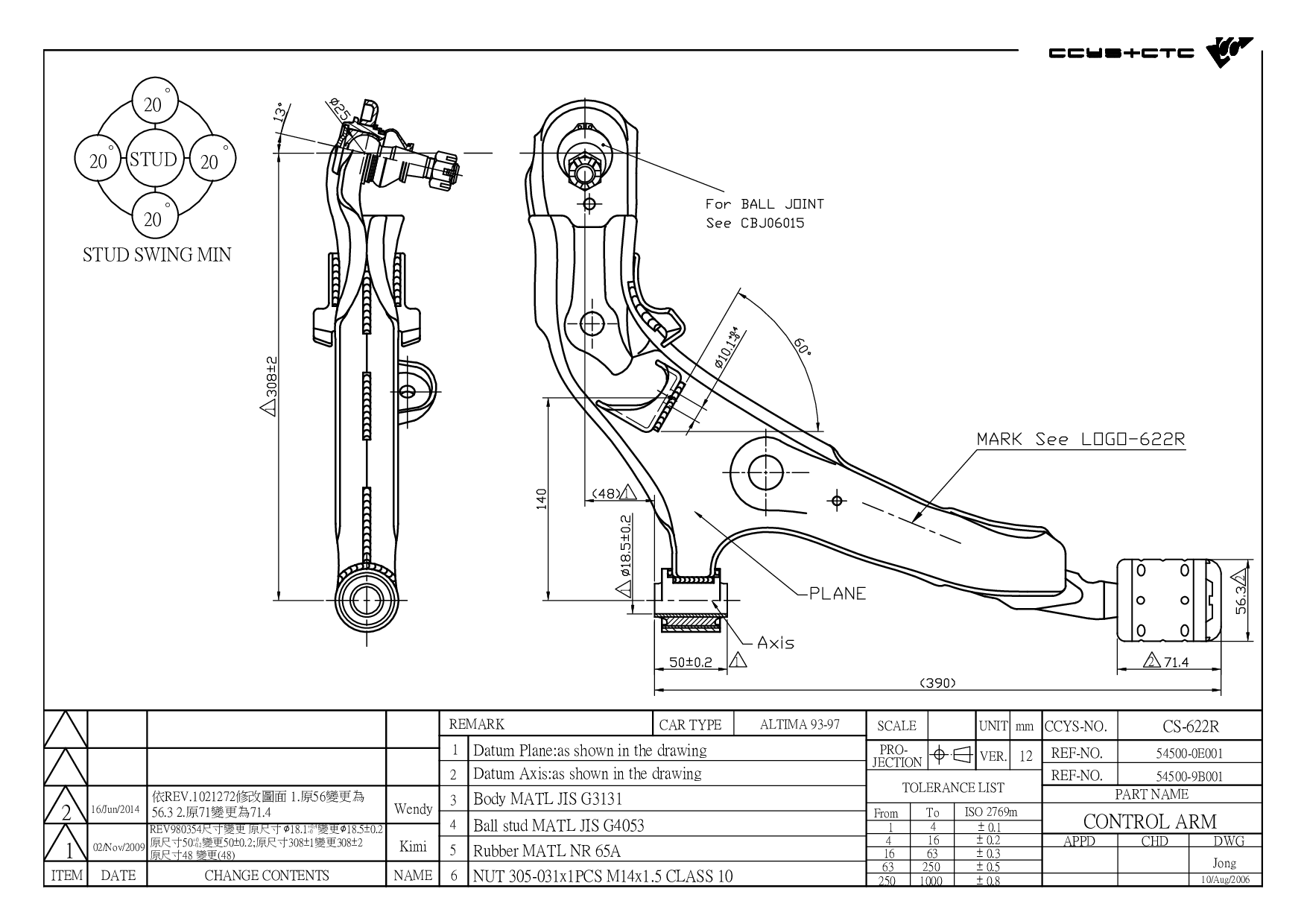

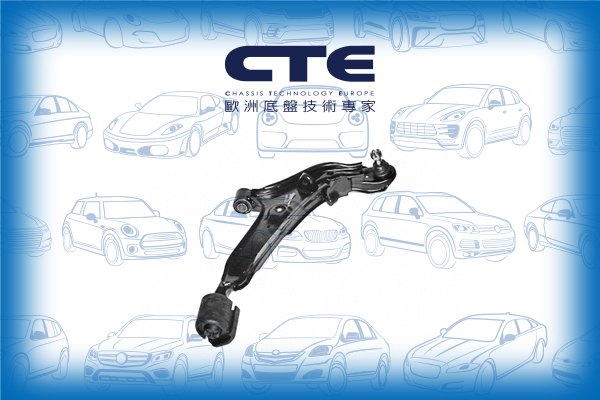

CS-622R
| Designation | Control Arm |
| Position | FRONT LOWER RH |
| OE No. | 54500-0E001 / 54500-2B010 / 54500-9B000 / 54500-9B001 |
| Length | 480 mm |
| Width | 372 mm |
| Height | 101 mm |
| Net Weight | 4.2 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH06007 | FRONT LOWER ARM INNER | 54560-50A00 54560-50Y10 |
|
 |
CBH06014 | FRONT LOWER ARM REAR | 54570-0M010 54570-0M020 |
|
 |
CBJ06006 | FRONT LOWER LH/ RH | 1N00-99-356 40160-00001 40160-0M010 40160-0M020 40160-0M060 40160-50Y00 40160-50Y02 40160-50Y0R 40160-50Y10 40160-50Y20 40160-52Y00 40160-52Y10 40160-52Y20 40160-52Y60 40160-60Y00 40160-60Y10 40160-60Y20 40160-69Y00 40160-69Y10 40160-F4200 40160-Y02G0 401 |
|
 |
CRE06007 | D= M12X1.25 , C= M16X1.0 | 48521-50Y00 48521-50Y25 48521-50Y26 48521-50Y27 48521-Y02G0 |
|
 |
CRE06013 | D= M12X1.25 , C= M16X1.0 | 48521-1M210 48521-1M225 48521-1M226 |
|
 |
CS-612L | FRONT LOWER LH | 54501-0M010 54501-0M020 54501-0M060 54501-0M065 54501-0N615 54501-0N620 54501-4B000 54501-F4300 |
|
 |
CS-612R | FRONT LOWER RH | 54500-0M010 54500-0M020 54500-0M060 54500-0M065 54500-0N615 54500-0N620 54500-4B000 54500-F4300 |
|
 |

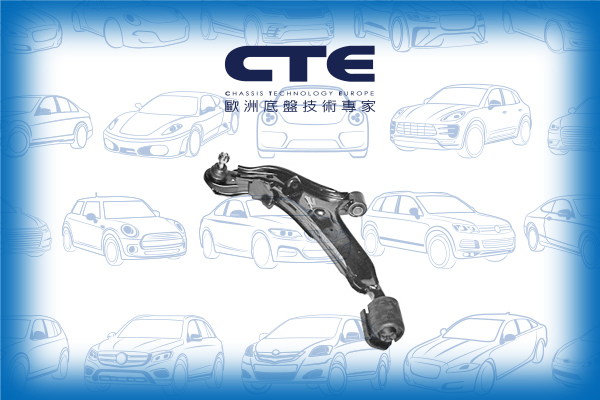

CS-622L | FRONT LOWER LH | 54501-0E001 54501-2B010 54501-9B000 54501-9B001 |
|
 |
CS-622R | FRONT LOWER RH | 54500-0E001 54500-2B010 54500-9B000 54500-9B001 |
|
 |
CSL06010 | FRONT (A= 84.5MM) | 54618-50Y00 54618-60005 54618-60U05 54618-D5000 |
|
 |
CSL06012 | FRONT (A= 84.5MM) | 54618-D5010 54618-D5015 |
| Model (Year) |
|---|
|
ALMERA I (N15) | PULSAR | SENTRA ALMERA I Hatchback (N15) | PULSAR BLUEBIRD (U13, U14) | ALTIMA PULSAR I Hatchback (N15) |
| Model (Year) |
|---|
|
BLUEBIRD (G10) |
