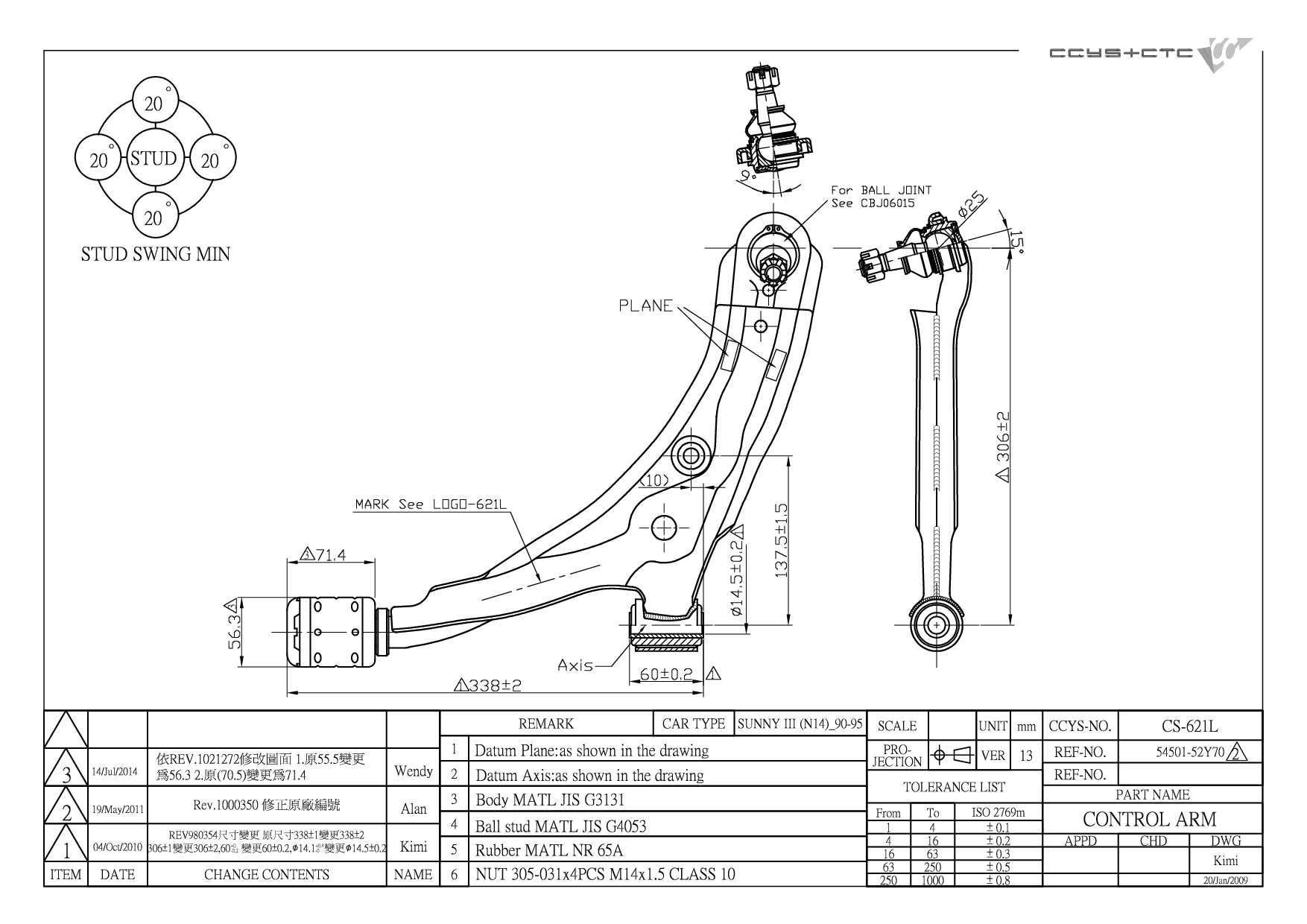

CS-621L
| Designation | Control Arm |
| Position | FRONT LOWER LH |
| OE No. | 54501-52Y70 |
| Length | 434 mm |
| Width | 378 mm |
| Height | 85 mm |
| Net Weight | 3.6 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH06007 | FRONT LOWER ARM INNER | 54560-50A00 54560-50Y10 |
|
 |
CBH06008 | FRONT LOWER ARM REAR | 54570-50Y11 54570-69Y10 |
|
 |
CBH06014 | FRONT LOWER ARM REAR | 54570-0M010 54570-0M020 |
|
 |
CBJ06006 | FRONT LOWER LH/ RH | 1N00-99-356 40160-00001 40160-0M010 40160-0M020 40160-0M060 40160-50Y00 40160-50Y02 40160-50Y0R 40160-50Y10 40160-50Y20 40160-52Y00 40160-52Y10 40160-52Y20 40160-52Y60 40160-60Y00 40160-60Y10 40160-60Y20 40160-69Y00 40160-69Y10 40160-F4200 40160-Y02G0 401 |
|
 |
CRE06007 | D= M12X1.25 , C= M16X1.0 | 48521-50Y00 48521-50Y25 48521-50Y26 48521-50Y27 48521-Y02G0 |
|
 |
CRE06008 | D= M12X1.25 , C= M16X1.5 | 48521-Q5601 |
|
 |
CS-607L | FRONT LOWER LH | 54501-50Y10 54501-52Y10 54501-52Y15 54501-52Y60 54501-69Y10 |
|
 |
CS-607R | FRONT LOWER RH | 54500-50Y10 54500-52Y10 54500-52Y15 54500-52Y60 54500-69Y10 |
|
 |
CS-621L | FRONT LOWER LH | 54501-52Y70 |
|
 |
CS-621R | FRONT LOWER RH | 54500-52Y70 |
|
 |
CSL06010 | FRONT (A= 84.5MM) | 54618-50Y00 54618-60005 54618-60U05 54618-D5000 |
|
 |
CSL06012 | FRONT (A= 84.5MM) | 54618-D5010 54618-D5015 |
|
 |
CSL06029 | REAR (A= 175MM) | 54618-58Y10 54618-58Y20 54618-58Y21 54618-58Y60 |
| Model (Year) |
|---|
|
SUNNY III (N14, B13) | SENTRA | PULSAR SUNNY III Hatchback (N14) | SENTRA SUNNY III Liftback (N14) |
