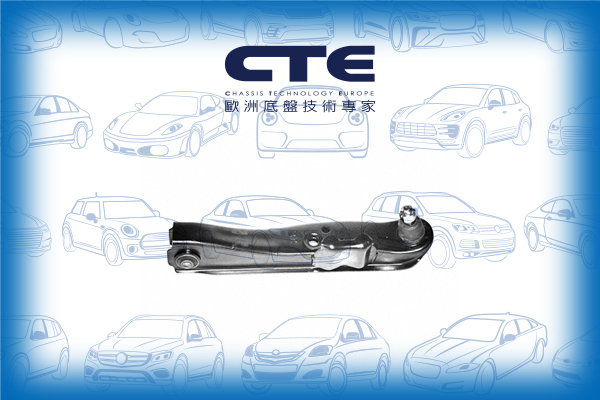

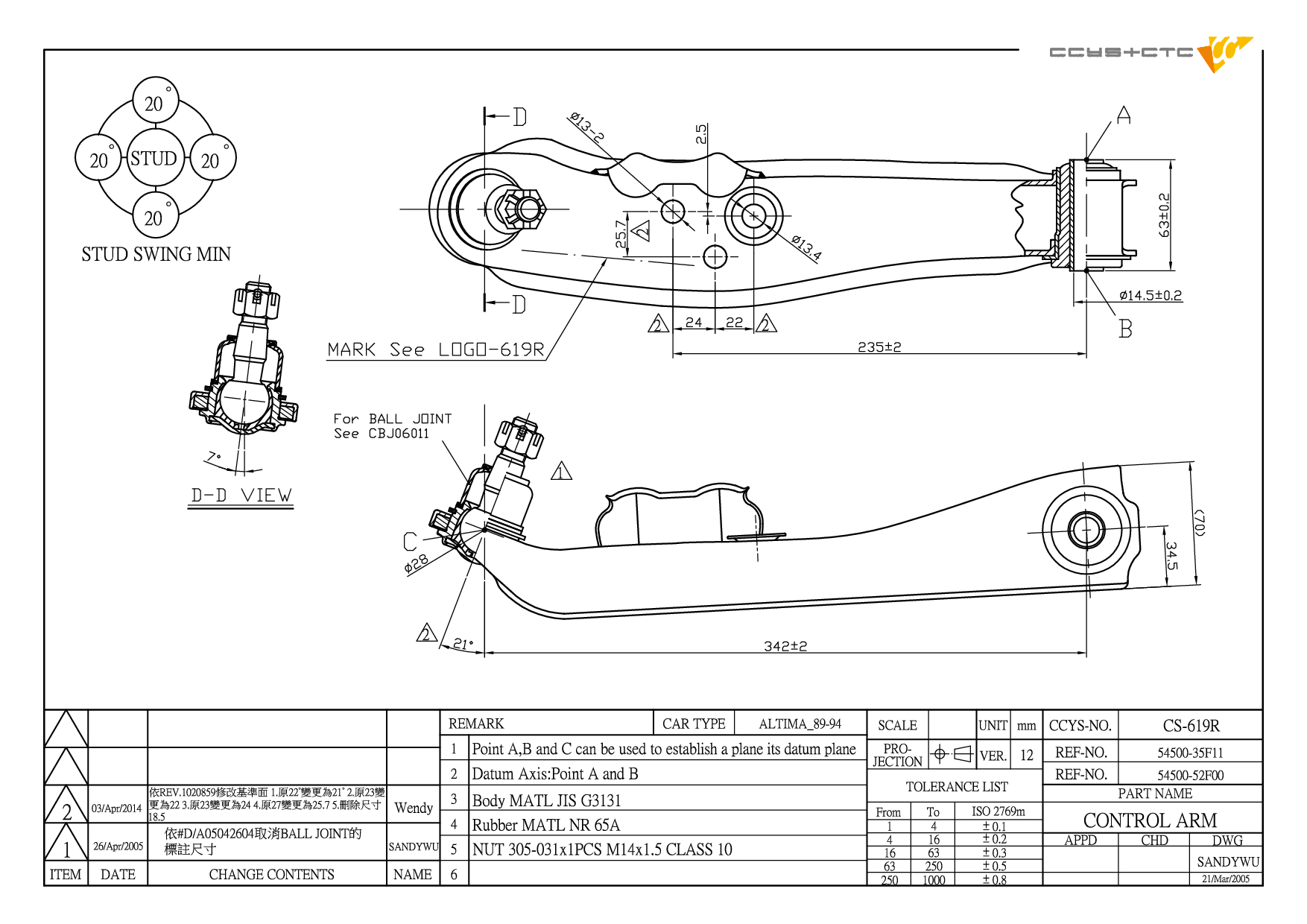

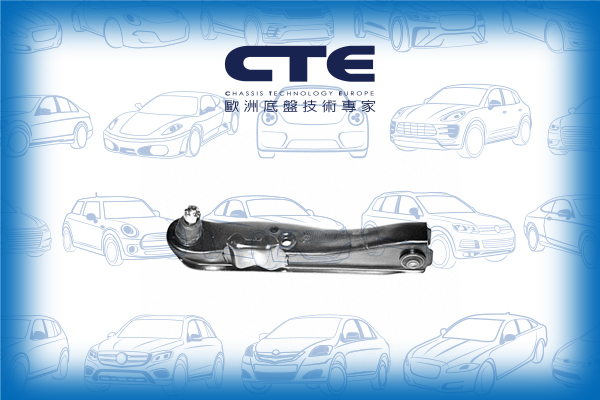

CS-619R
| Designation | Control Arm |
| Position | FRONT LOWER RH |
| OE No. | 54500-35F11 / 54500-52F00 |
| Length | 402.7 mm |
| Width | 96.2 mm |
| Height | 116.8 mm |
| Net Weight | 2 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |

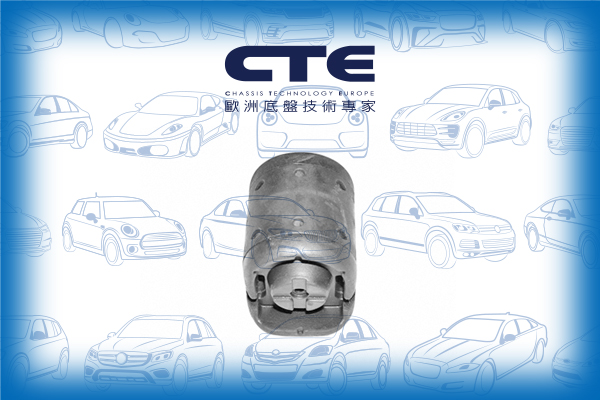

CBH06014 | FRONT LOWER ARM REAR | 54570-0M010 54570-0M020 |
|
 |
CBH06017 | FRONT LOWER ARM INNER | 54590-01E00 54590-85E00 |
|
 |

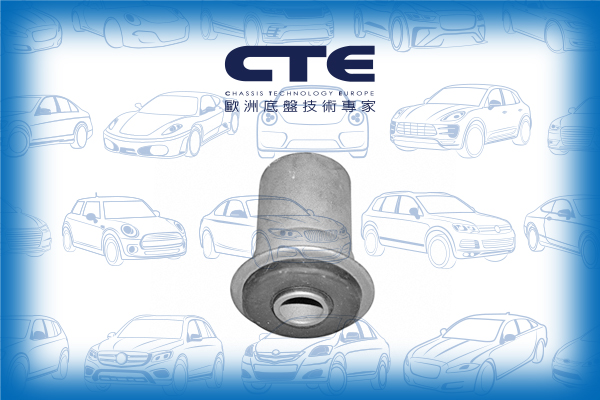

CBH06018 | FRONT LOWER ARM INNER | 54535-W1010 |
|
 |

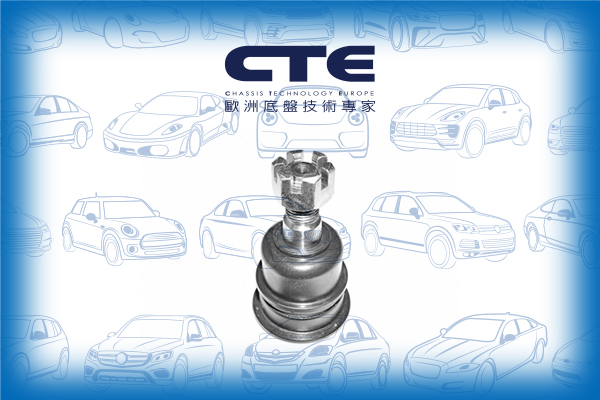

CBJ06011 | FRONT LOWER LH/ RH | ||
 |

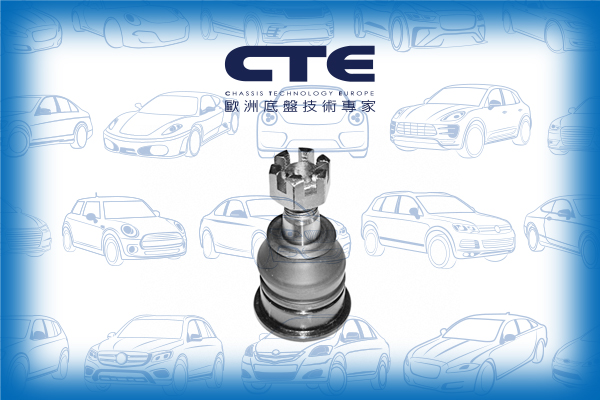

CBJ06015 | FRONT LOWER LH/ RH | 40160-2B000 |
|
 |
CS-619L | FRONT LOWER LH | 54501-35F11 54501-52F00 |
|
 |
CS-619R | FRONT LOWER RH | 54500-35F11 54500-52F00 |
|
 |
CS-653L | FRONT LOWER LH | 54501-JA00B 54501-JA00C |
|
 |
CS-653R | FRONT LOWER RH | 54500-JA00B 54500-JA00C |
|
 |
CS-658L | FRONT LOWERＬＨ | 54501-3TA0A 54501-3TA0B 54501-3TS0A 54501-3TS1A 54501-3TS2A 54501-9HP0A |
|
|
CS-658R | FRONT LOWER RH | 54500-3TA0A 54500-3TA0B 54500-3TS0A 54500-3TS1A 54500-3TS2A 54500-9HP0A |
|
 |

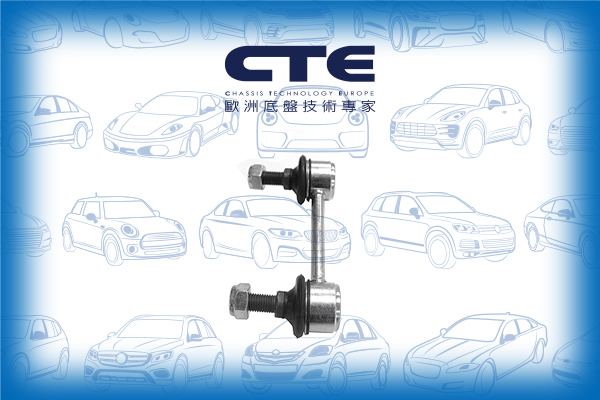

CSL06057 | REAR (A= 90MM) | 56261-0Z800 |
|
 |
CSL06058L | FRONT LH (A= 308MM) | 54668-8J000 54668-CN011 |
|
 |

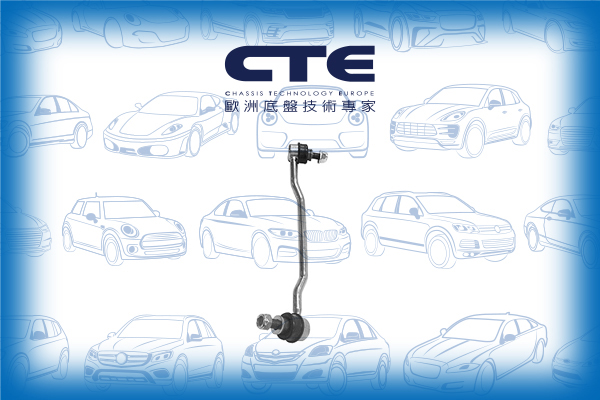

CSL06058R | FRONT RH (A= 308MM) | 54618-8J000 54618-CN011 |
| Model (Year) |
|---|
|
ALTIMA (L30) ALTIMA (L31) ALTIMA (L32) |
