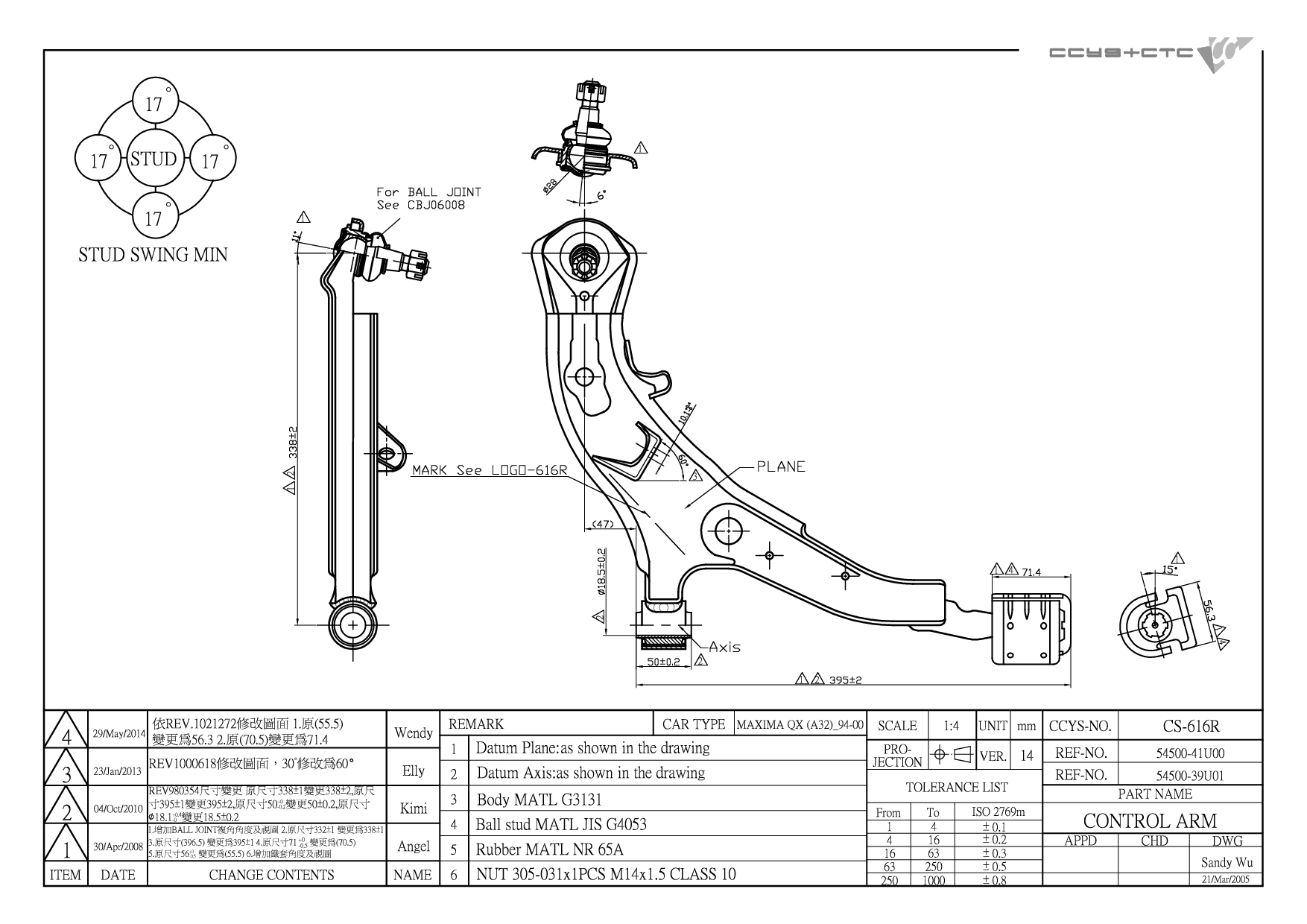

CS-616R
| Designation | Control Arm |
| Position | FRONT LOWER RH |
| OE No. | 54500-31U00 / 54500-39U01 / 54500-39U10 / 54500-39U11 / 54500-40U00 / 54500-41U00 / 54500-41U01 / 54500-41U02 |
| Length | 490.4 mm |
| Width | 391.4 mm |
| Height | 98.1 mm |
| Net Weight | 4.6 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH06014 | FRONT LOWER ARM REAR | 54570-0M010 54570-0M020 |
|
 |
CBJ06008 | FRONT LOWER LH/ RH | 40160-31U00 40160-39U00 40160-41U00 40160-41U01 40160-41U02 40161-41U00 40161-41U01 40161-41U02 |
|
 |
CRE06020 | D= M14X1.5 , C= M16X1.0 | 48521-0C000 48521-0C005 48521-0C025 48521-40U01 48521-40U25 |
|
 |
CS-616L | FRONT LOWER LH | 54501-31U00 54501-39U01 54501-39U10 54501-39U11 54501-40U00 54501-41U00 54501-41U01 54501-41U02 |
|
 |
CS-616R | FRONT LOWER RH | 54500-31U00 54500-39U01 54500-39U10 54500-39U11 54500-40U00 54500-41U00 54500-41U01 54500-41U02 |
|
 |

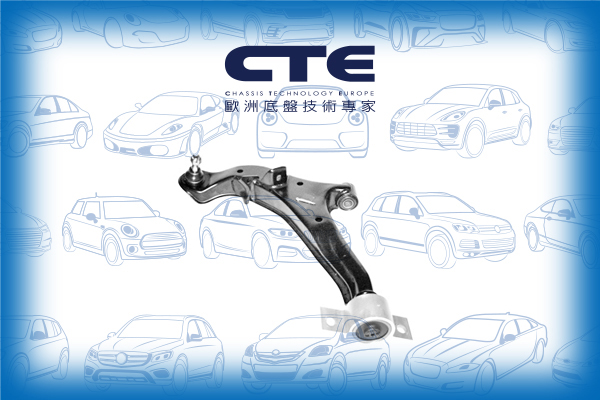

CS-635L | FRONT LOWER LH | 54501-2Y400 54501-2Y410 54501-2Y411 54501-2Y412 54501-2Y420 54501-2Y470 54501-5Y720 54501-6Y301 |
|
 |

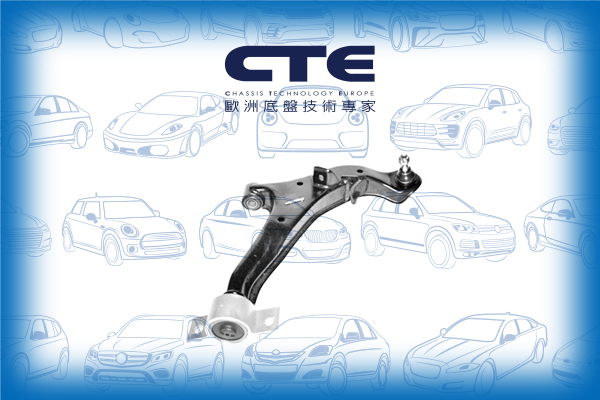

CS-635R | FRONT LOWER RH | 54500-2Y400 54500-2Y410 54500-2Y411 54500-2Y412 54500-2Y420 54500-2Y470 54500-5Y720 54500-6Y301 |
|
 |

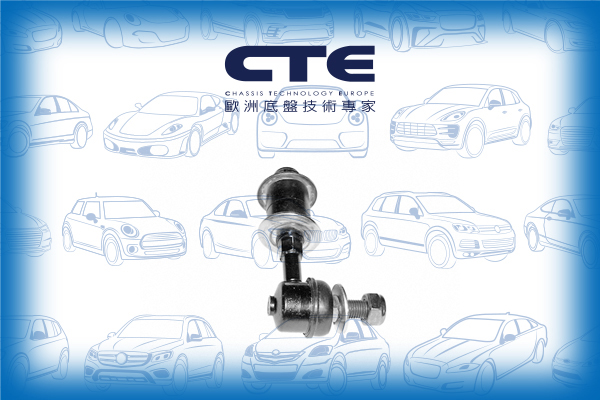

CSL06014 | FRONT (A= 96.8MM) | 54618-0E000 54618-WA000 |
|
 |

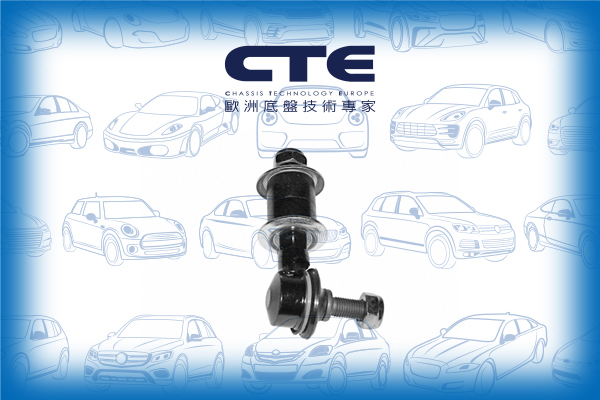

CSL06039 | REAR (A= 102MM) | 56260-51E15 |
| Model (Year) |
|---|
|
J30 |
| Model (Year) |
|---|
|
CEFIRO II Saloon (A32) MAXIMA / MAXIMA QX IV (A32) MAXIMA / MAXIMA QX IV Station Wagon (A32) |
