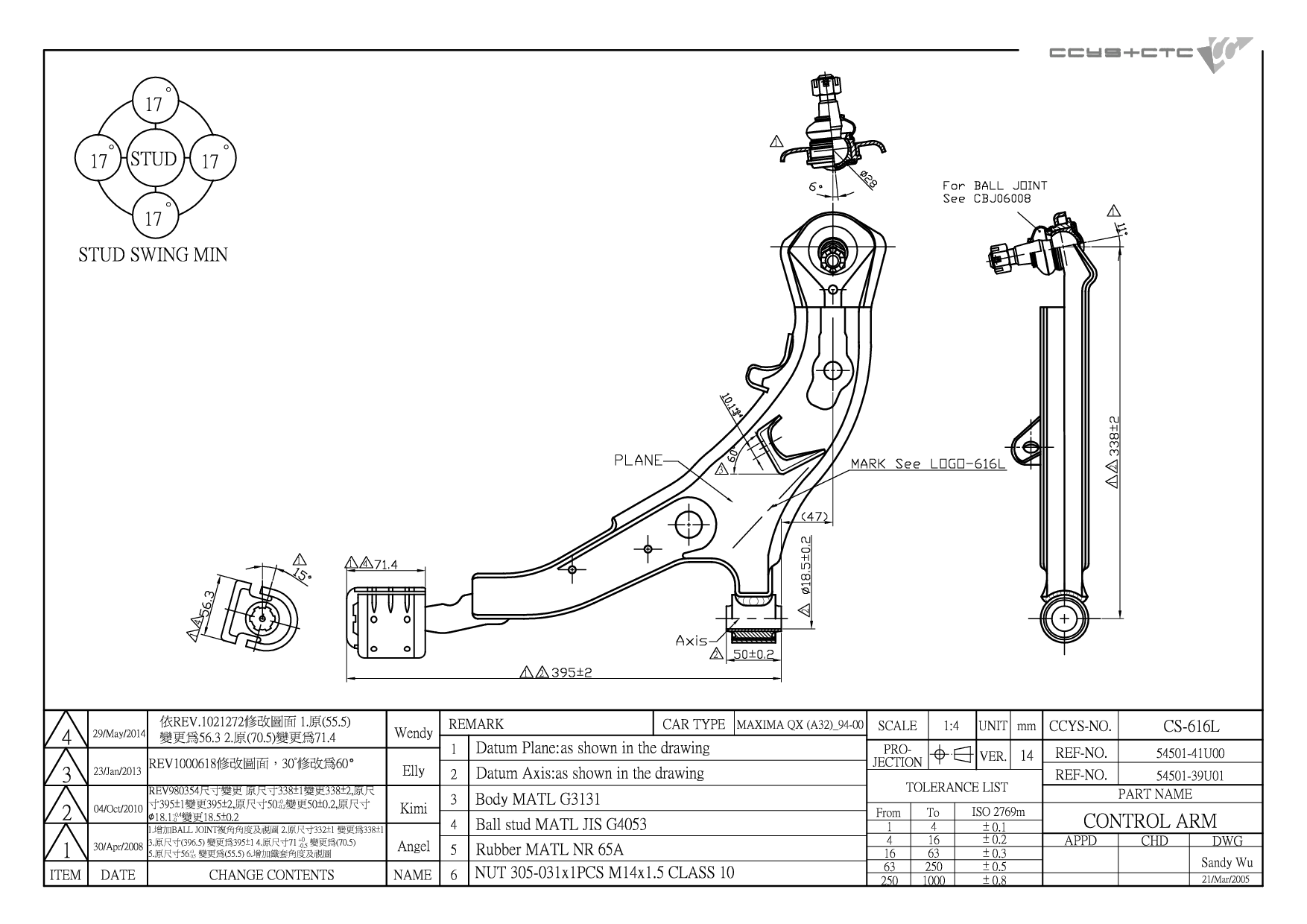

CS-616L
| Designation | Control Arm |
| Position | FRONT LOWER LH |
| OE No. | 54501-31U00 / 54501-39U01 / 54501-39U10 / 54501-39U11 / 54501-40U00 / 54501-41U00 / 54501-41U01 / 54501-41U02 |
| Length | 490.4 mm |
| Width | 391.4 mm |
| Height | 98.1 mm |
| Net Weight | 4.6 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |

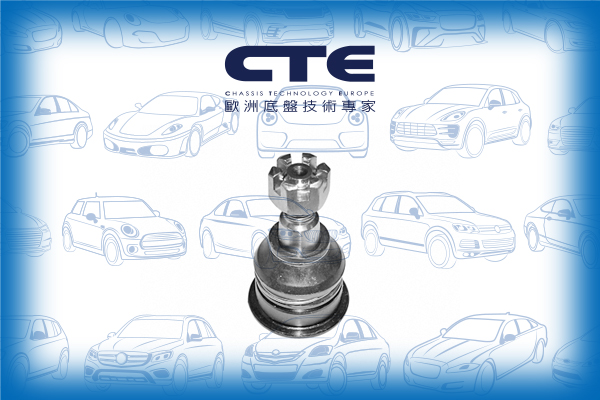

CBJ06008 | FRONT LOWER LH/ RH | 40160-31U00 40160-39U00 40160-41U00 40160-41U01 40160-41U02 40161-41U00 40161-41U01 40161-41U02 |
|
 |

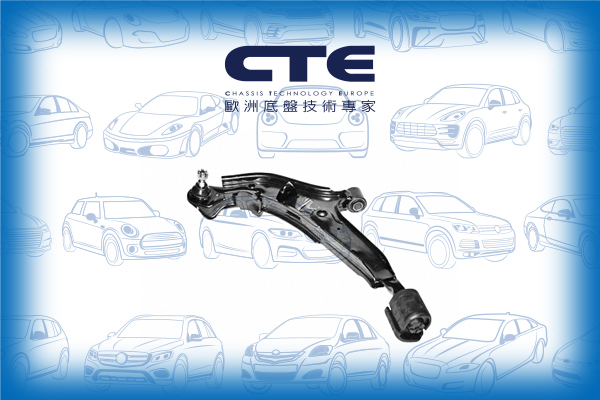

CS-616L | FRONT LOWER LH | 54501-31U00 54501-39U01 54501-39U10 54501-39U11 54501-40U00 54501-41U00 54501-41U01 54501-41U02 |
|
 |

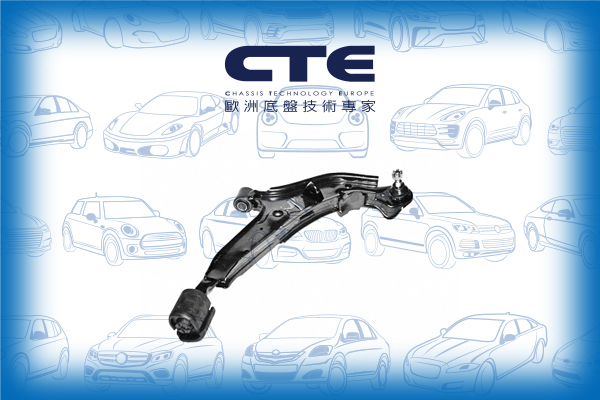

CS-616R | FRONT LOWER RH | 54500-31U00 54500-39U01 54500-39U10 54500-39U11 54500-40U00 54500-41U00 54500-41U01 54500-41U02 |
| Model (Year) |
|---|
|
J30 |
| Model (Year) |
|---|
|
CEFIRO II Saloon (A32) MAXIMA / MAXIMA QX IV (A32) MAXIMA / MAXIMA QX IV Station Wagon (A32) |
