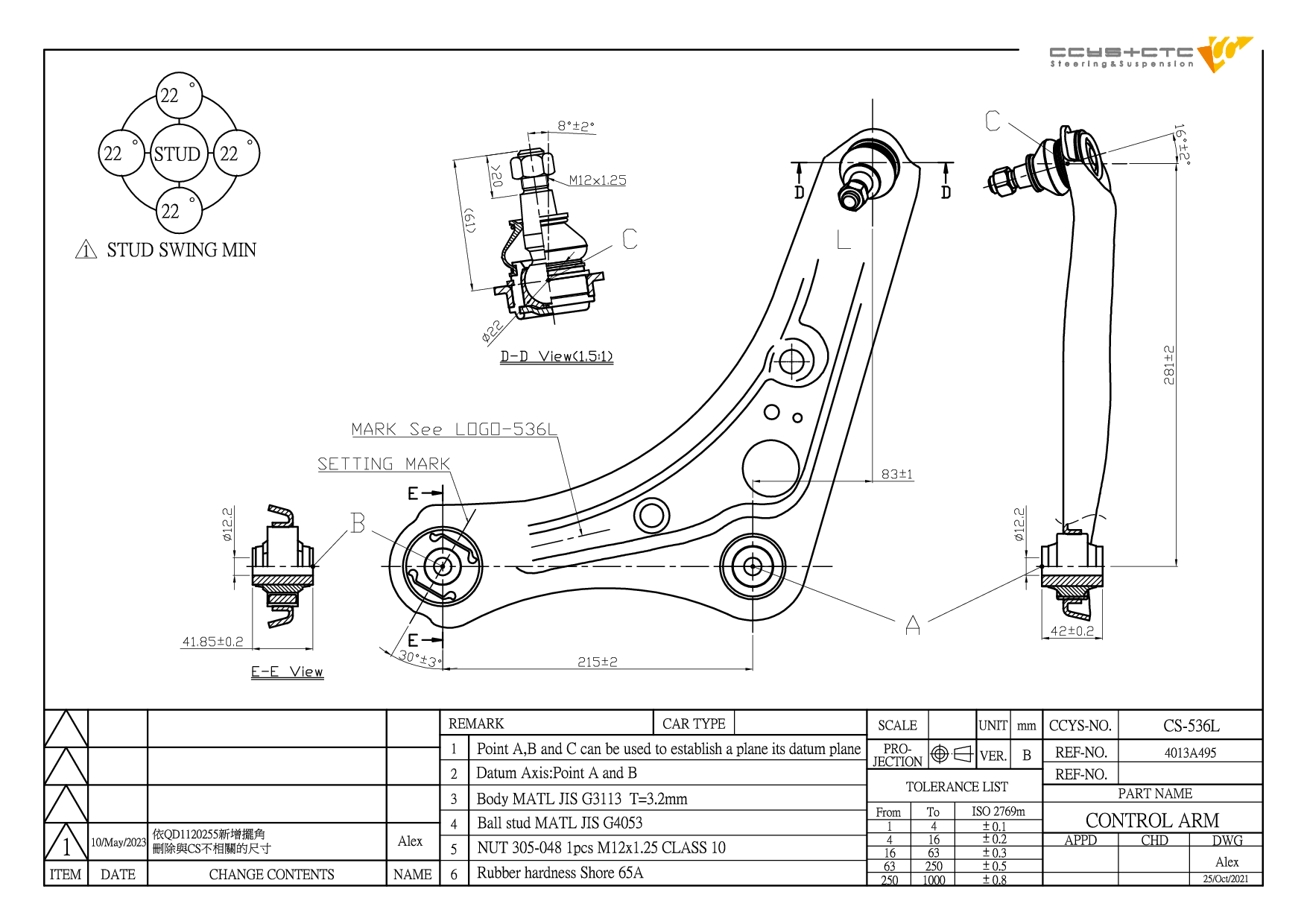

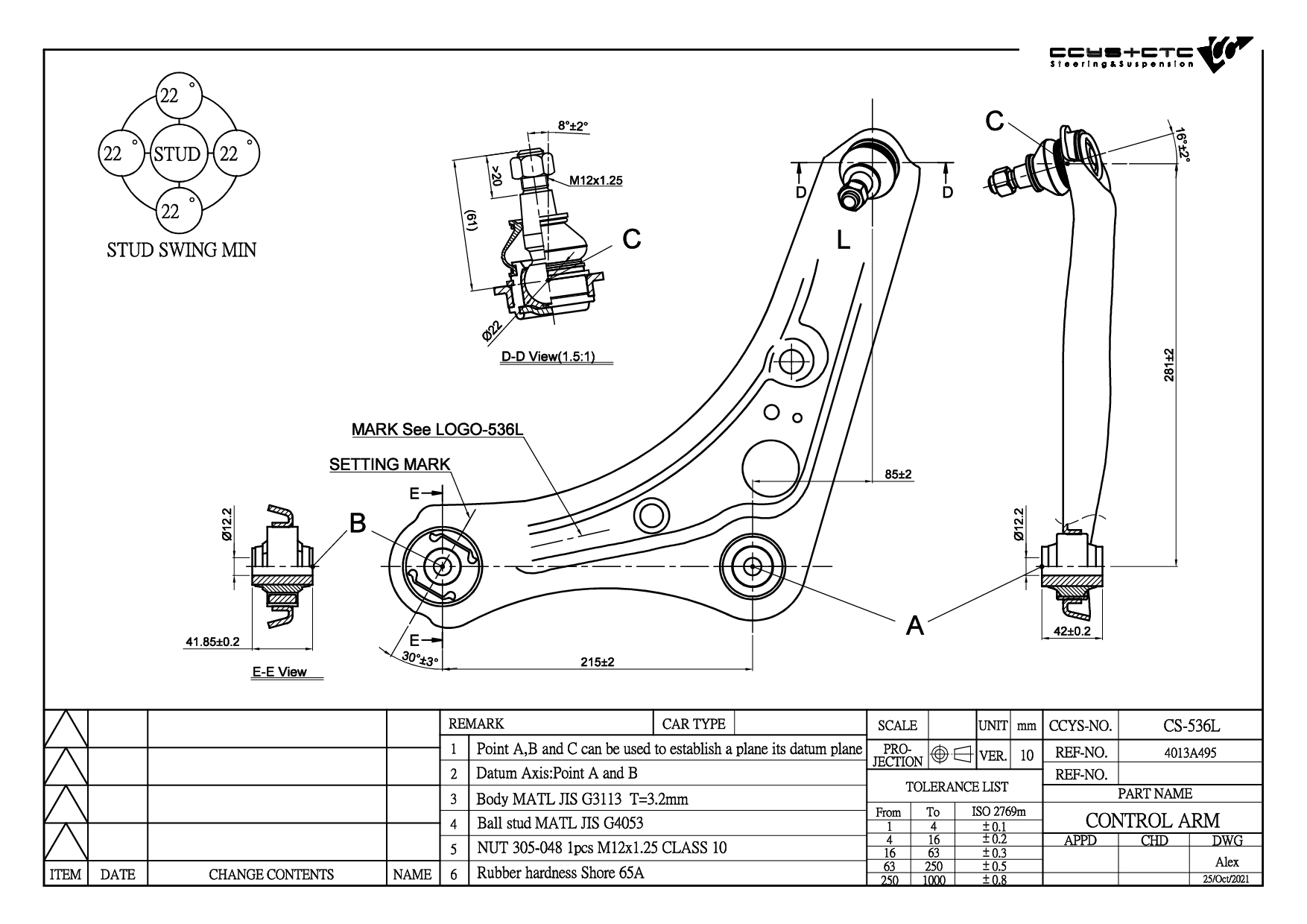

CS-536L
| Designation | Control Arm |
| Position | FRONT LOWER LH |
| OE No. | 4013A495 / 4013A639 / 54505-6A00G / 54505-6A00J / MQ715265 |
| Length | 0 mm |
| Width | 0 mm |
| Height | 0 mm |
| Net Weight | 0 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH05027 | FRONT LOWER ARM REAR | 4013A495 4013A496 4013A639 4013A640 54504-6A00E 54504-6A00G 54505-6A00G 54505-6A00J MQ715264 MQ715265 |
|
|
CBH05028 | FRONT LOWER ARM INNER | 4013A495 4013A496 4013A639 4013A640 54504-6A00E 54504-6A00G 54505-6A00G 54505-6A00J MQ715264 MQ715265 |
|
 |
CS-536L | FRONT LOWER LH | 4013A495 4013A639 54505-6A00G 54505-6A00J MQ715265 |
|
 |
CS-536R | FRONT LOWER RH | 4013A496 4013A640 54504-6A00E 54504-6A00G MQ715264 |
| Model (Year) |
|---|
|
eK Hatchback (B11W) eK SPACE (B11A) |
| Model (Year) |
|---|
|
DAYZ (B21W) |
