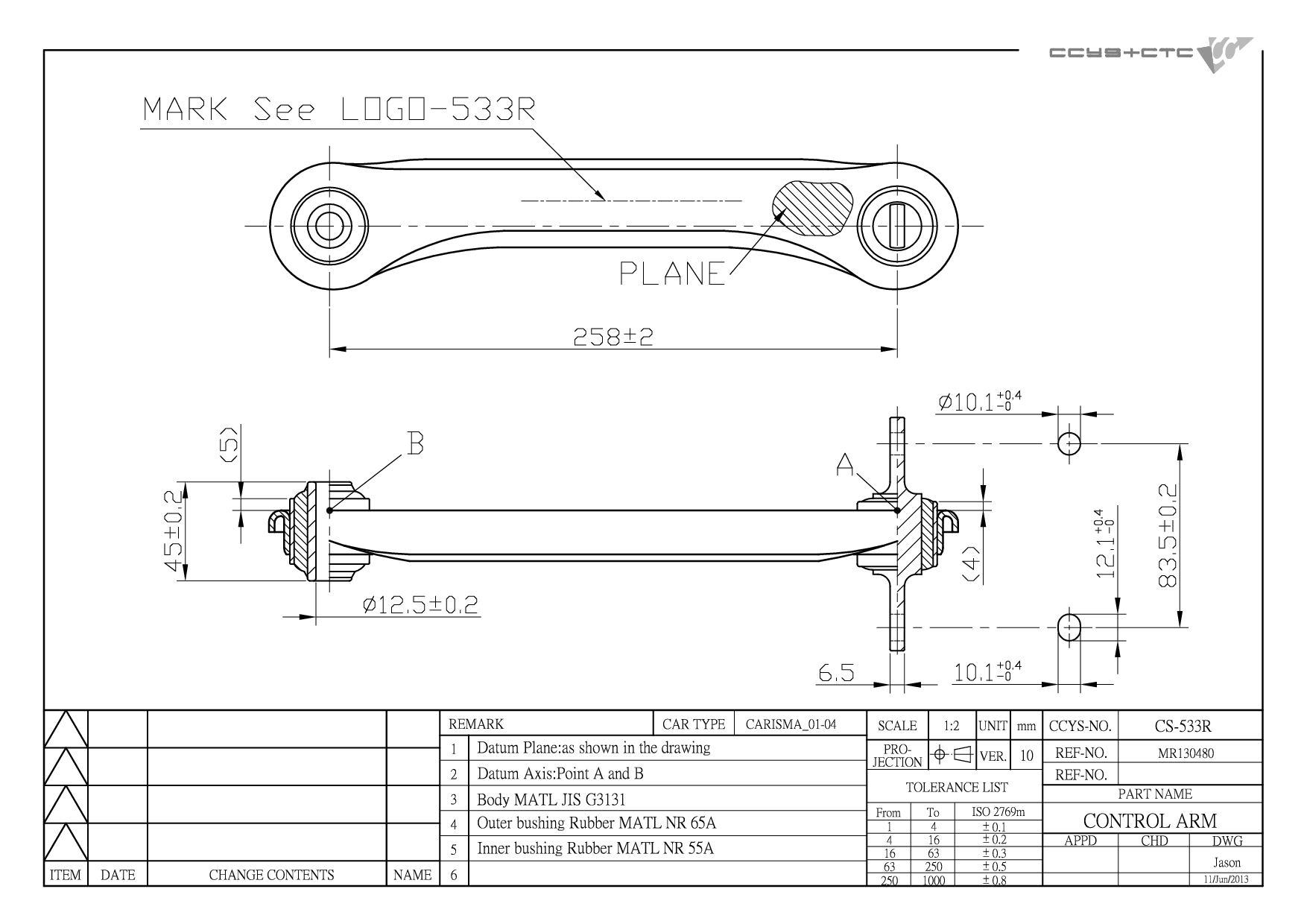

CS-533R
| Designation | Control Arm |
| Position | REAR UPPER RH |
| OE No. | MR 130480 |
| Length | 314 mm |
| Width | 60 mm |
| Height | 106 mm |
| Net Weight | 0.82 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CS-523L | FRONT LOWER LH (A= 319MM) | MR 911570 PW 820083 |
|
 |
CS-523R | FRONT LOWER RH (A= 319MM) | MR 911569 PW 820084 |
|
 |
CS-532L | FRONT LOWER LH (A= 324MM) | MR 297241 MR 916133 |
|
 |
CS-532R | FRONT LOWER RH (A= 324MM) | MR 297242 MR 916134 |
|
 |
CS-533L | REAR UPPER LH | MR 130479 |
|
 |
CS-533R | REAR UPPER RH | MR 130480 |
|
 |
CSL05021 | FRONT AXLE LH/RH (A=145.5MM) | 48819-20030 MR 392730 MR 954888 |
|
 |
CSL17009 | REAR (A= 108MM) | 30852103 30852103 S1 30871765 30873101 30884359 30884359 S1 30896525 M884359 MME272118 MR272118 MR272118 S1 |
|
 |
CTE17002 | FRONT AXLE LH/ RH (C= M12X1.25) | 30870695 308706951 30875012 3817 A6 4422A028 4422A054 48520-6A0A0 48520-6A0A1 510185 56820-28000 MB241982 MB489407 MB527169 MB535996 MB597605 MB598023 MB912076 MR465092 MR476457 MR485672 MR535996 MR598023 PW500414 PW510185 |
| Model (Year) |
|---|
|
CARISMA (DA_) CARISMA Saloon (DA_) SPACE STAR MPV (DG_A) |
