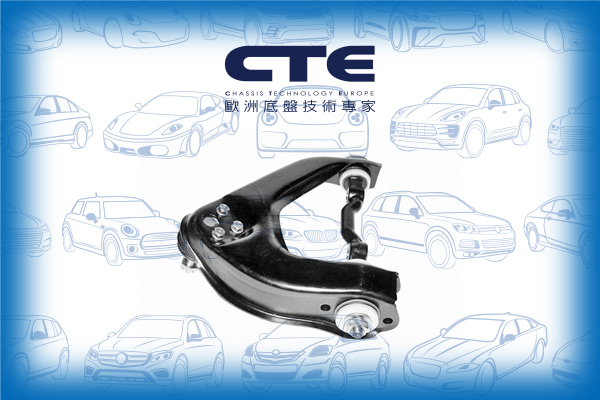

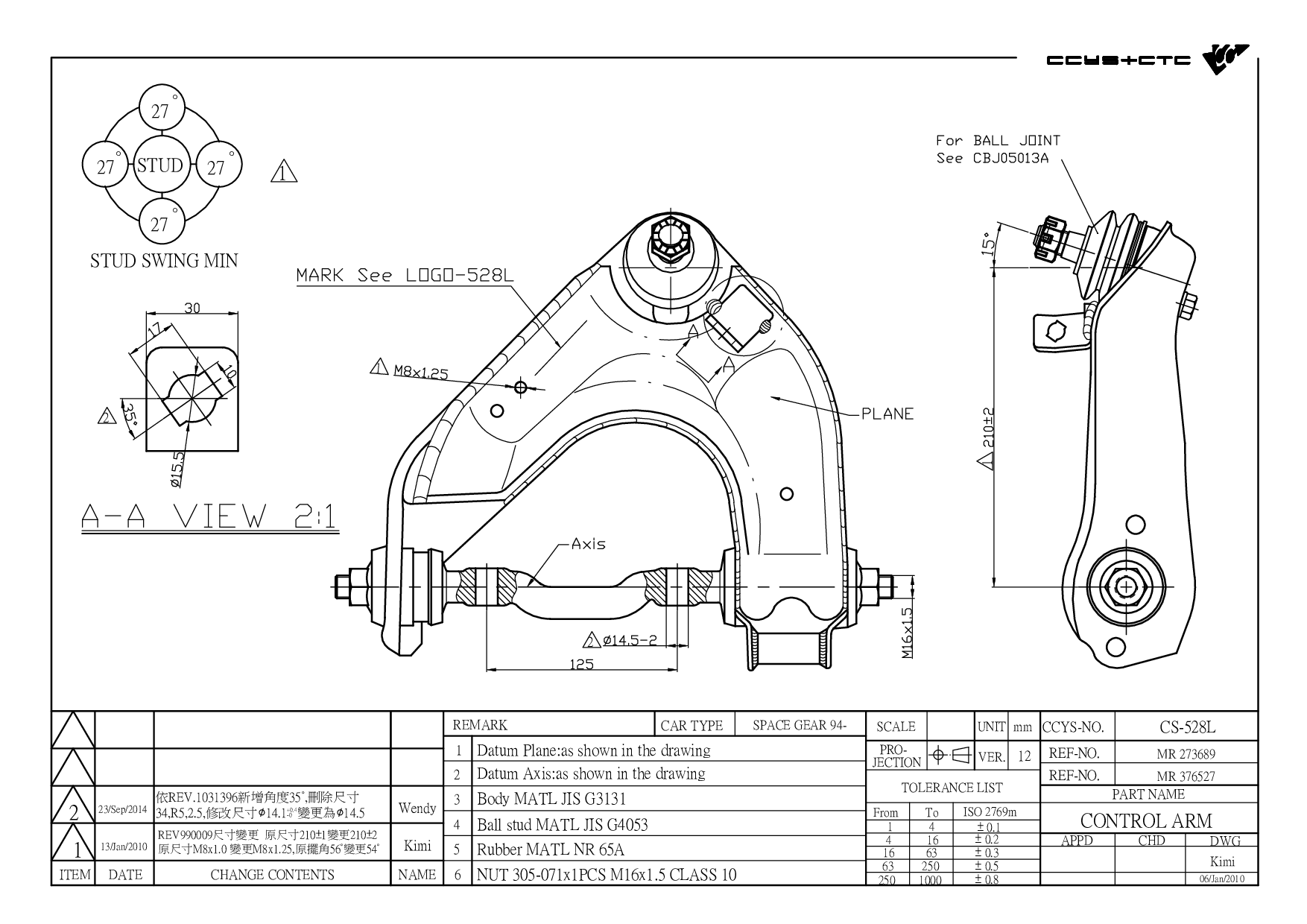

CS-528L
| Designation | Control Arm |
| Position | FRONT UPPER LH |
| OE No. | 54410-43000 / 54410-43001 / 54410-43002 / 54410-43003 / 54410-43004 / 54410-43005 / 54410-4B000 / MR 162691 / MR 273689 / MR 373689 / MR 376527 |
| Length | 366 mm |
| Width | 300 mm |
| Height | 106 mm |
| Net Weight | 5.5 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBJ05013A | FRONT LOWER LH/ RH | 54417-43000 54417-43A00 54417-43A01 54417-47000 54417-4A000 54417-4AA00 54417-4BA00 54457-43001 MB527349 MB527350 MB5273849 MB5273850 MB527530 MB598547-01 MB598548-01 MR178817 MR241623 |
|
 |
CS-528L | FRONT UPPER LH | 54410-43000 54410-43001 54410-43002 54410-43003 54410-43004 54410-43005 54410-4B000 MR 162691 MR 273689 MR 373689 MR 376527 |
|
 |

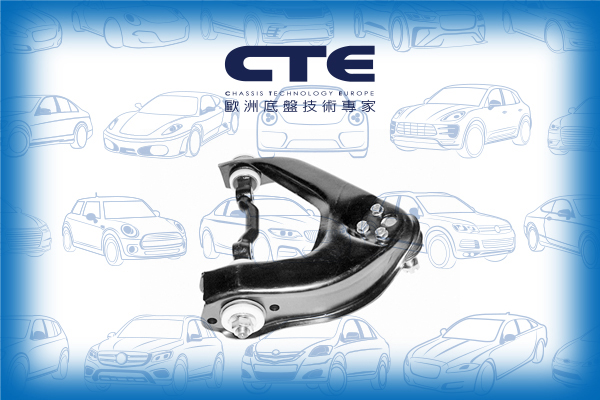

CS-528R | FRONT UPPER RH | 54430-43000 54430-43001 54430-43002 54430-43003 54430-43004 54430-43005 54430-4B000 MR 162692 MR 273690 MR 376528 |
|
 |
CSL05012 | REAR (A= 114MM) | 4056A037 MB 809355 MR 112394 MR 267875 MR 403771 MR 476595 PW521020 |
|
 |
CSL05014 | REAR (A= 113MM) | 4056A037 MB 809355 MR 112394 MR 267875 MR 403771 MR 476595 PW521020 |
|
 |

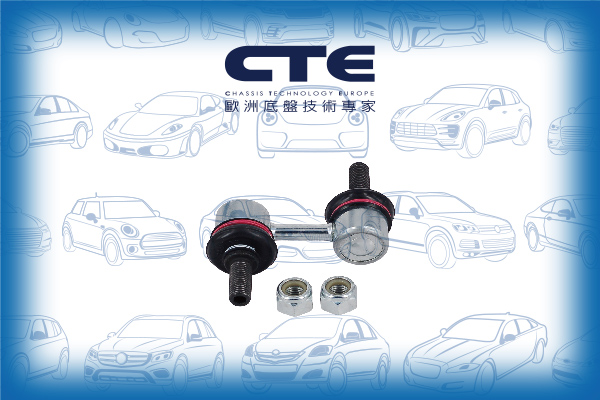

CSL05045 | FRONT AXLE LH/RH | MR 150705 MR 267874 |
| Model (Year) |
|---|
|
H-1 / STAREX Bus (A1) | SATELLITE | H200 H100 Bus (P) | GRACE | H150 | H100 / GRACE H100 Platform/Chassis H100 Platform/Chassis (HR) | PORTER 2 H100 Platform/Chassis | STAREX H100 Van | GRACE | H150 | H100 / GRACE |
| Model (Year) |
|---|
|
L400 Bus (PD_W, PC_W, PA_V, PB_V, PA_W) L400 Van (PD_W, PC_W, PB_V, PA_W, PA_V) | DELICA |
