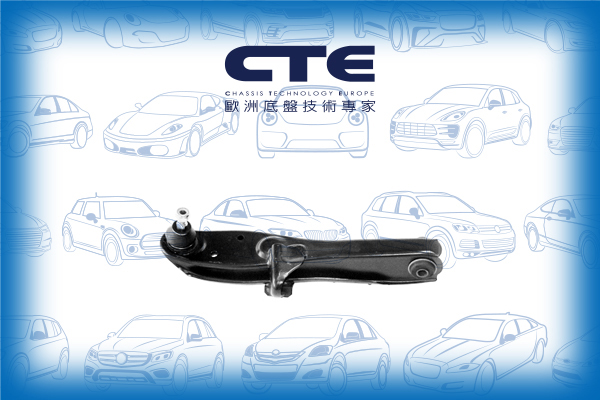

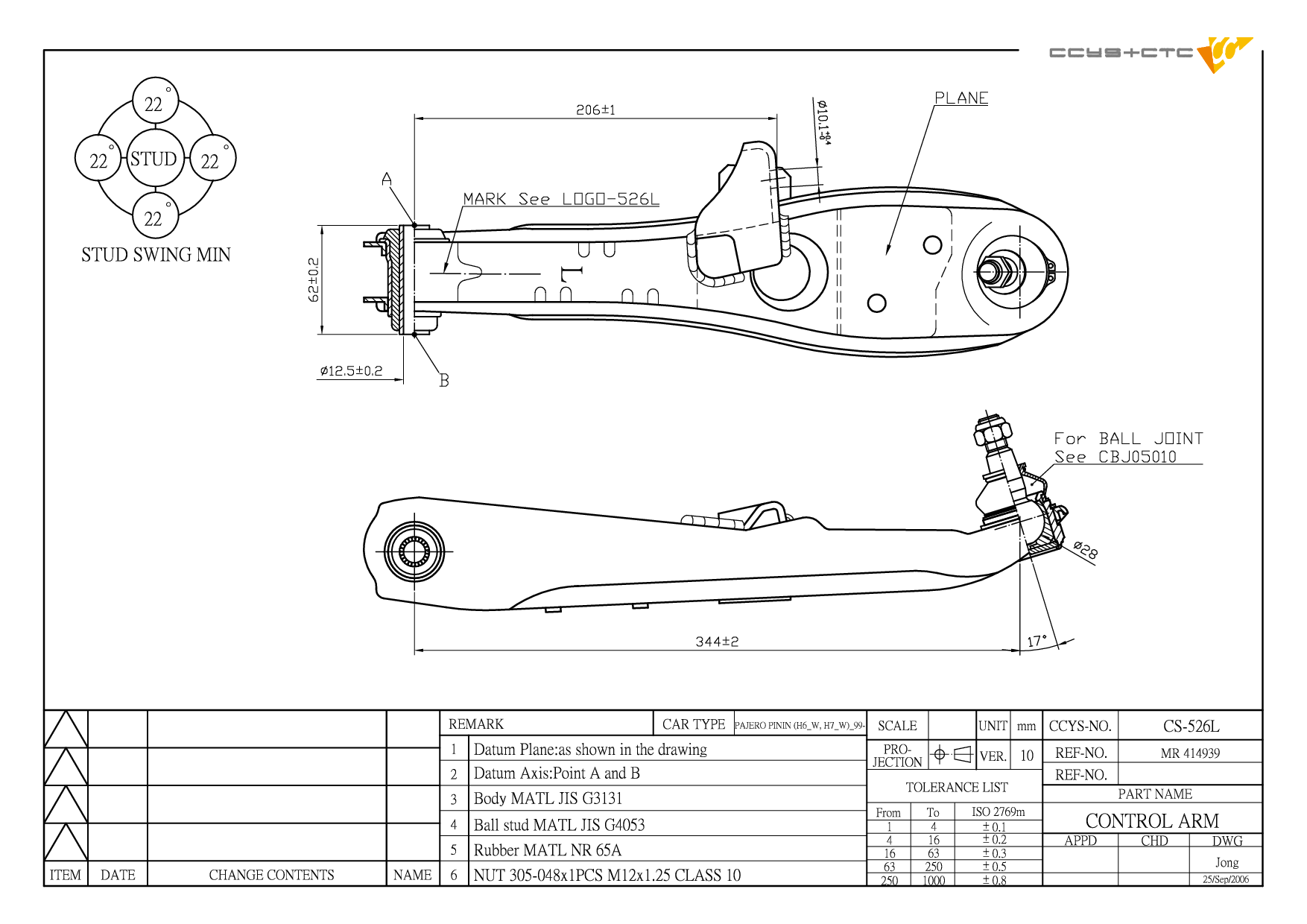

CS-526L
| Designation | Control Arm |
| Position | FRONT LOWER LH |
| OE No. | MR 414939 / MR566555 |
| Length | 400 mm |
| Width | 122.4 mm |
| Height | 111.2 mm |
| Net Weight | 1.95 kg |
MITSUBISHI (H6_W)
(H7_W) Construction Year to 06.2000
(H7_W) Construction Year to 06.2000
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |

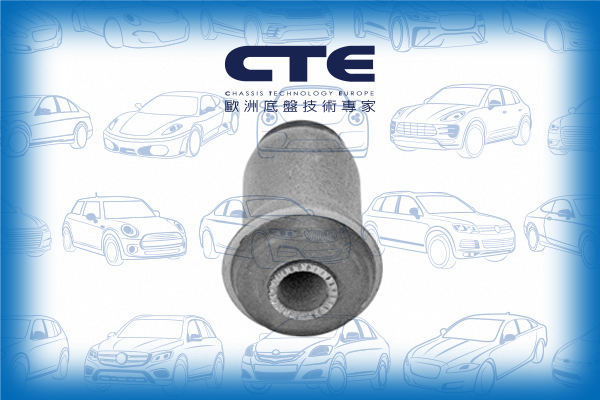

CBH05021 | FRONT LOWER ARM INNER | MR319067 |
|
 |
CBJ05010 | FRONT LOWER LH/ RH | 4013A033 4013A034 4013A175 AW 311699 MB 133618 MB 241883 MB 349963 MB 349964 MB 518041 MB 518042 MB 518205 MB 518712 MB 518713 MB 518960 MB 518961 MB 573093 MB 573094 MB 573098 MB 860817 MB 860818 MB 891787 MB 891788 MN 133617 |
|
 |
CS-526L | FRONT LOWER LH | MR 414939 MR566555 |
|
 |

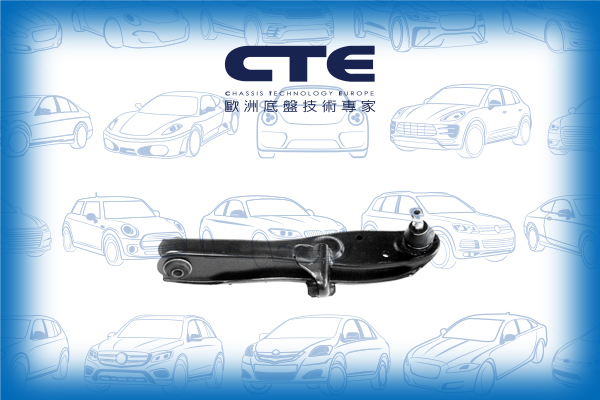

CS-526R | FRONT LOWER RH | MR 414940 MR566556 |
|
 |
CSL05007 | REAR (A= 61MM) | 4056A014 MB 518892 MB 573043 MB 892982 |
|
 |
CTE26001 | FRONT AXLE LH/ RH (C= M14X1.5) | 56820-22000 56820-25000 56820-28500 56820-28520 56820-29500 56820-2F000 56820-37000 56820-37010 56820-3B000 57780-3B000 |
| Model (Year) |
|---|
|
PAJERO III (V7_W, V6_W) | SHOGUN | MONTERO | PAJERO/SHOGUN PAJERO PININ I (H6_W, H7_W) | IO | SHOGUN PININ | MONTERO IO |
