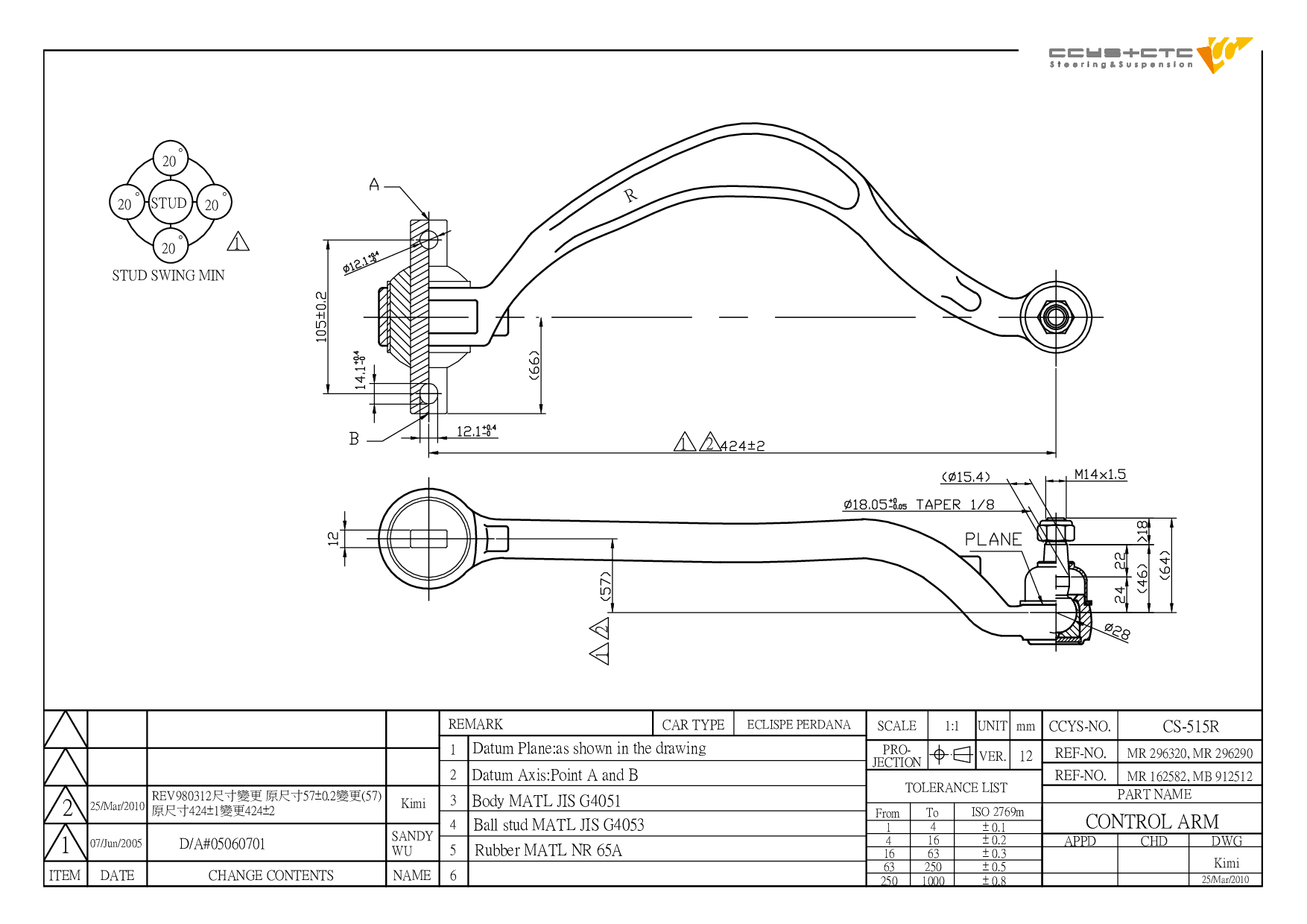

CS-515R
| Designation | Control Arm |
| Position | FRONT LOWER RH |
| OE No. | MB 912512 / MB 912514 / MR 162582 / MR 162584 / MR 296288 / MR 296290 / MR 296292 / MR 296320 |
| Length | 485.2 mm |
| Width | 197.7 mm |
| Height | 106 mm |
| Net Weight | 3.6 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH05011 | FRONT LOWER ARM OUTER | 51810-SH3-000 51810-SH3-003 51810-SH3-004 52365-ST3-G02 RBX100680 |
|
 |
CBH05012 | FRONT LOWER ARM INNER | MB 912509 MB 912510 MR 162579 MR 162580 MR 296295 MR 296296 |
|
 |
CBH05013 | FRONT LOWER ARM INNER | MB 912511 MB 912512 MR 162581 MR 162582 MR 296289 MR 296290 MR 296319 MR 296320 |
|
 |
CBH05014 | FRONT UPPER ARM KITS | ||
 |
CBJ05005 | FRONT UPPER LH/ RH | MB 912505-1 MB 912506-1 MR 162803-1 MR 162804-1 |
|
 |
CRE05011 | D= M14X1.5 , C= M16X1.5 | MB 501721 MB 532281 MR 131856 |
|
 |
CRE05016 | D= M14X1.5 , C= M16X1.5 | MB 403872 MB 949343 MR 198987 MR 333166 MR 403872 MR 594674 |
|
 |
CS-514L | FRONT LOWER LH | MB 912509 MR 162579 MR 165279 MR 296295 MR 325005 MR 325577 MR 972465 MR 972465A MR 972469 |
|
 |
CS-514R | FRONT LOWER RH | MB 912510 MR 162580 MR 165280 MR 296296 MR 325004 MR 325576 MR 972466 MR 972466A MR 972470 |
|
 |
CS-515L | FRONT LOWER LH | MB 162581 MB 912511 MB 912513 MR 162581 MR 162583 MR 296287 MR 296289 MR 296293 MR 296319 |
|
 |
CS-515R | FRONT LOWER RH | MB 912512 MB 912514 MR 162582 MR 162584 MR 296288 MR 296290 MR 296292 MR 296320 |
|
 |
CS-516L | FRONT UPPER LH | MB 912505 MB162803 MB912507 MR 162803 |
|
 |
CS-516R | FRONT UPPER RH | MB 912506 MB162804 MB912508 MR 162804 |
|
 |
CSL05006 | FRONT (A= 120MM) | 4056-A026 MB 892981 |
|
 |
CSL05007 | REAR (A= 61MM) | 4056A014 MB 518892 MB 573043 MB 892982 |
|
 |
CTE05003 | FRONT AXLE LH/ RH (C= M14X1.5) | MB 910859 |
|
 |
CTE05006 | FRONT AXLE LH/ RH (C= M14X1.5) | MB 192430 MB 489434 MB 564991 MB 573885 MB 616286 MB 912519 |
|
 |
CTE26001 | FRONT AXLE LH/ RH (C= M14X1.5) | 56820-22000 56820-25000 56820-28500 56820-28520 56820-29500 56820-2F000 56820-37000 56820-37010 56820-3B000 57780-3B000 |
| Model (Year) |
|---|
|
ECLIPSE I (D2_A) ECLIPSE II (D3_A) GALANT VII (E5_A, E7_A, E8_A) GALANT VII Saloon (E5_A, E7_A, E8_A) GALANT VIII (EA_) | GALANT / ASPIRE | ASPIRE GALANT VIII Estate (EA_, EC_) | LEGNUM |
