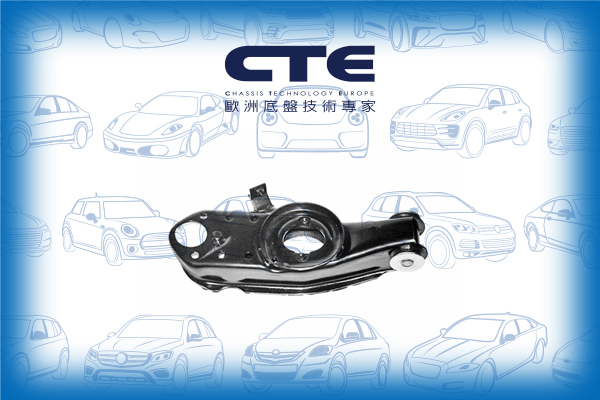

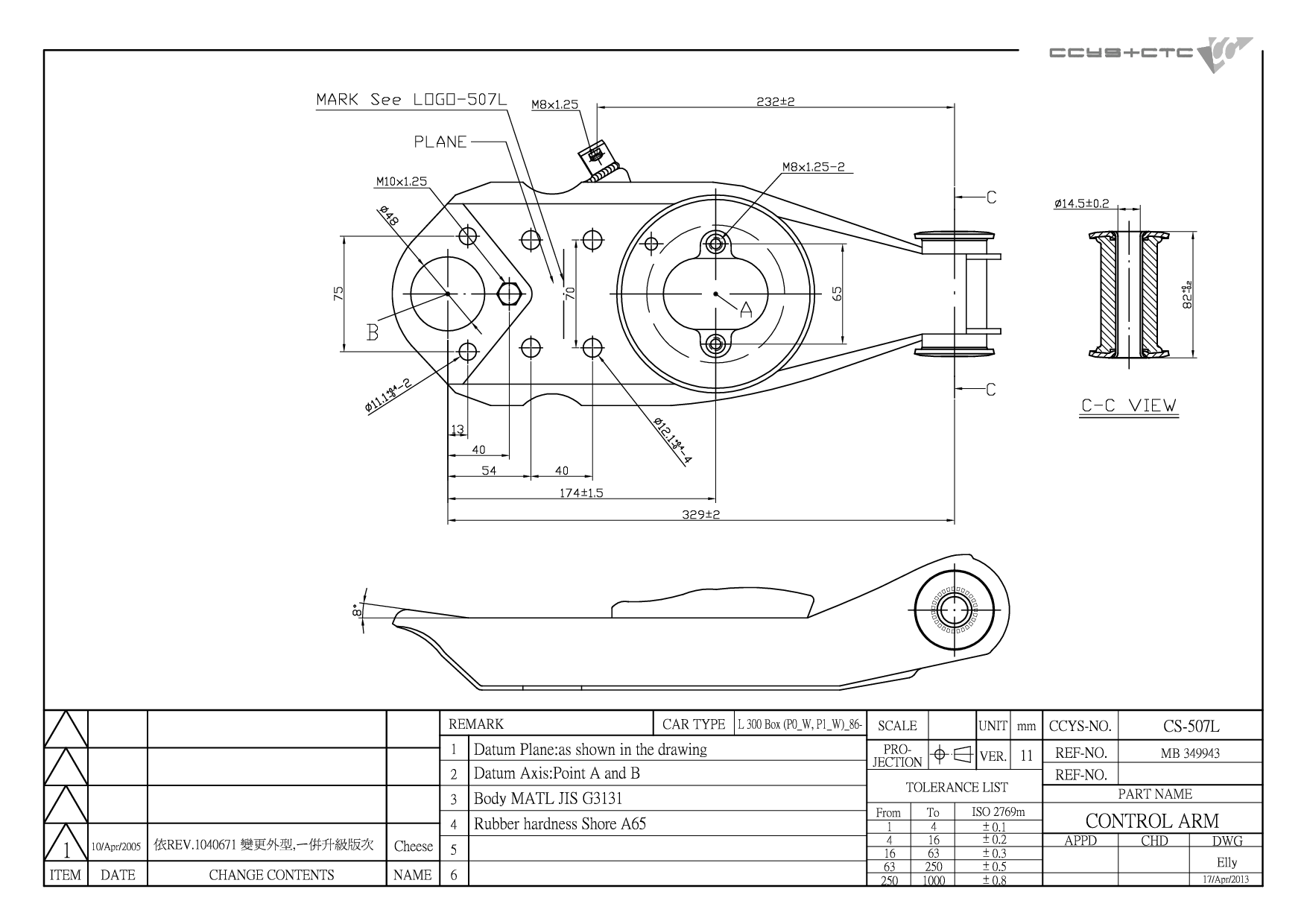

CS-507L
| Designation | Control Arm |
| Position | FRONT LOWER LH |
| OE No. | MB 349943 |
| Length | 401 mm |
| Width | 172 mm |
| Height | 88 mm |
| Net Weight | 2.8 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH05023 | FRONT UPPER ARM REAR | 54410-43005 54430-43005 MR 162691 MR 162692 MR 273689 MR 273690 MR 376527 MR 376528 MR 598547 MR 598548 |
|
 |

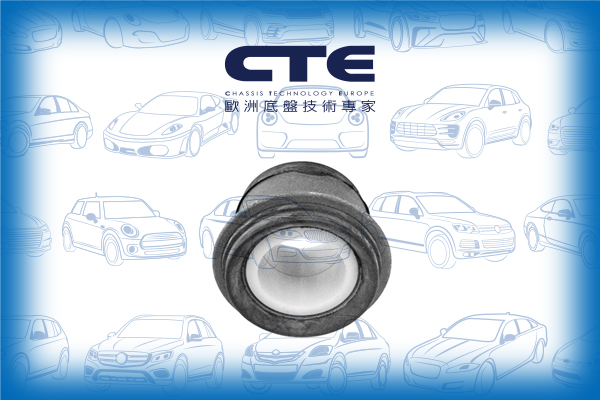

CBH05024 | FRONT UPPER ARM INNER | 54410-43005 54430-43005 MR 162691 MR 162692 MR 273689 MR 273690 MR 376527 MR 376528 MR 598547 MR 598548 |
|
 |
CBJ05003 | FRONT LOWER LH/ RH | 54417-44000 54431-44000 54510-43152-01 54510-4B010 54524-43000 54524-43001 54524-43002 54540-43152-01 MB 430112 MB 430113 MB 527383 MB 527383-01 MB 527384 MB 527384-01 MB 598017 MB 598018 |
|
 |
CBJ05013A | FRONT LOWER LH/ RH | 54417-43000 54417-43A00 54417-43A01 54417-47000 54417-4A000 54417-4AA00 54417-4BA00 54457-43001 MB527349 MB527350 MB5273849 MB5273850 MB527530 MB598547-01 MB598548-01 MR178817 MR241623 |
|
 |
CRE26008 | D= M14X1.5 , C= M16X1.5 | 56540-22000 56540-24001 |
|
 |
CS-506L | FRONT LOWER LH | 54510-43150 54510-43151 54510-43152 54510-4B000 54510-4B001 54510-4F000 MB 430112 MB 527383 MB 598017 |
|
 |
CS-506R | FRONT LOWER RH | 54540-43150 54540-43151 54540-43152 54540-4B000 54540-4B001 54540-4F000 MB 430113 MB 527384 MB 598018 |
|
 |
CS-507L | FRONT LOWER LH | MB 349943 |
|
 |

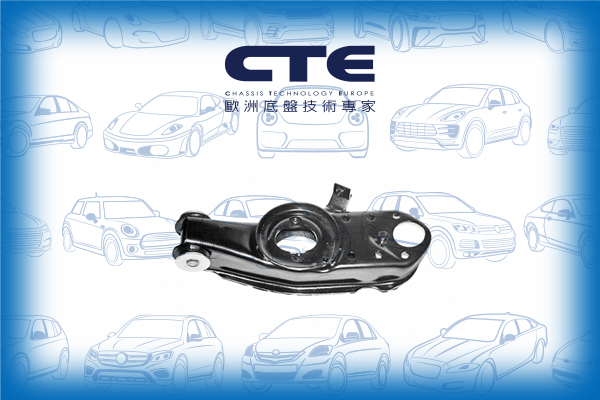

CS-507R | FRONT LOWER RH | MB 349944 |
|
 |
CS-528L | FRONT UPPER LH | 54410-43000 54410-43001 54410-43002 54410-43003 54410-43004 54410-43005 54410-4B000 MR 162691 MR 273689 MR 373689 MR 376527 |
|
 |
CS-528R | FRONT UPPER RH | 54430-43000 54430-43001 54430-43002 54430-43003 54430-43004 54430-43005 54430-4B000 MR 162692 MR 273690 MR 376528 |
|
 |
CTE05007 | FRONT AXLE LH/ RH (C= M14X1.5) | 56820 4A600 56820-47300 5682047500 56820-4A000 56872-43000 56872-43010 MB 347599 MB 527650 MB 864164 MR376500 |
| Model (Year) |
|---|
|
H100 Bus (P) | GRACE | H150 | H100 / GRACE H100 Van | GRACE | H150 | H100 / GRACE |
| Model (Year) |
|---|
|
L 300 / DELICA II Bus (L03_P/G, L0_2P) L 300 / DELICA II Platform/Chassis (L03_P) | L300 | BIG MINI L 300 / DELICA II Van (L03_P) |
