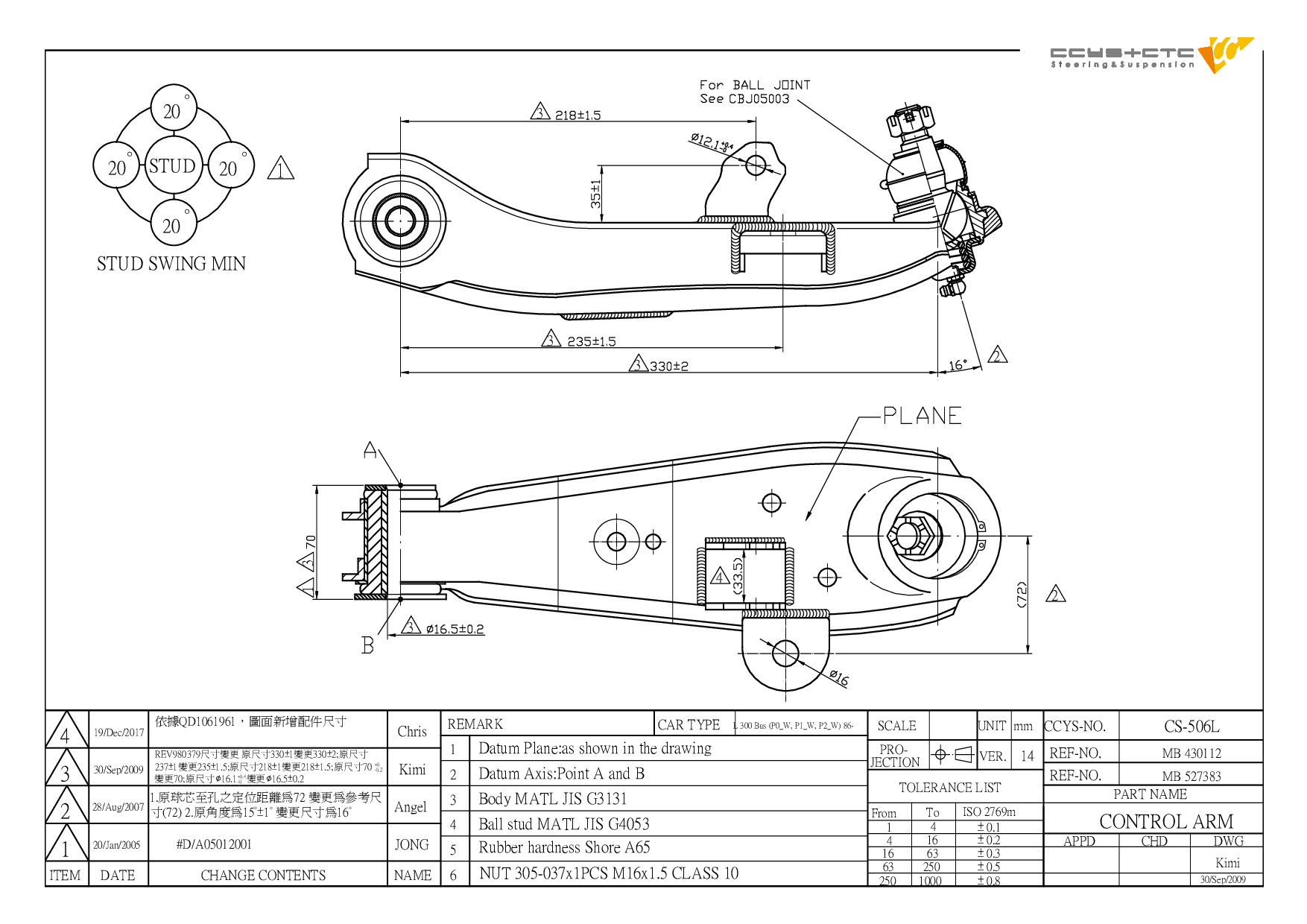

CS-506L
| Designation | Control Arm |
| Position | FRONT LOWER LH |
| OE No. | 54510-43150 / 54510-43151 / 54510-43152 / 54510-4B000 / 54510-4B001 / 54510-4F000 / MB 430112 / MB 527383 / MB 598017 |
| Length | 404.3 mm |
| Width | 152.6 mm |
| Height | 132 mm |
| Net Weight | 3.3 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBJ05003 | FRONT LOWER LH/ RH | 54417-44000 54431-44000 54510-43152-01 54510-4B010 54524-43000 54524-43001 54524-43002 54540-43152-01 MB 430112 MB 430113 MB 527383 MB 527383-01 MB 527384 MB 527384-01 MB 598017 MB 598018 |
|
 |
CS-506L | FRONT LOWER LH | 54510-43150 54510-43151 54510-43152 54510-4B000 54510-4B001 54510-4F000 MB 430112 MB 527383 MB 598017 |
|
 |
CS-506R | FRONT LOWER RH | 54540-43150 54540-43151 54540-43152 54540-4B000 54540-4B001 54540-4F000 MB 430113 MB 527384 MB 598018 |
| Model (Year) |
|---|
|
GRACE Bus GRACE Van H-1 / STAREX Bus (A1) | SATELLITE | H200 H100 Bus (P) | GRACE | H150 | H100 / GRACE H100 Platform/Chassis (HR) | PORTER 2 H100 Platform/Chassis | STAREX H100 Van | GRACE | H150 | H100 / GRACE |
| Model (Year) |
|---|
|
L 300 III Bus (P0_W, P1_W, P2_W, P3_W) | DELICA L 300 III Platform/Chassis (P1_T ) | DELICA L 300 III Van (P0_V, P1_V, P2_V) | DELICA |
