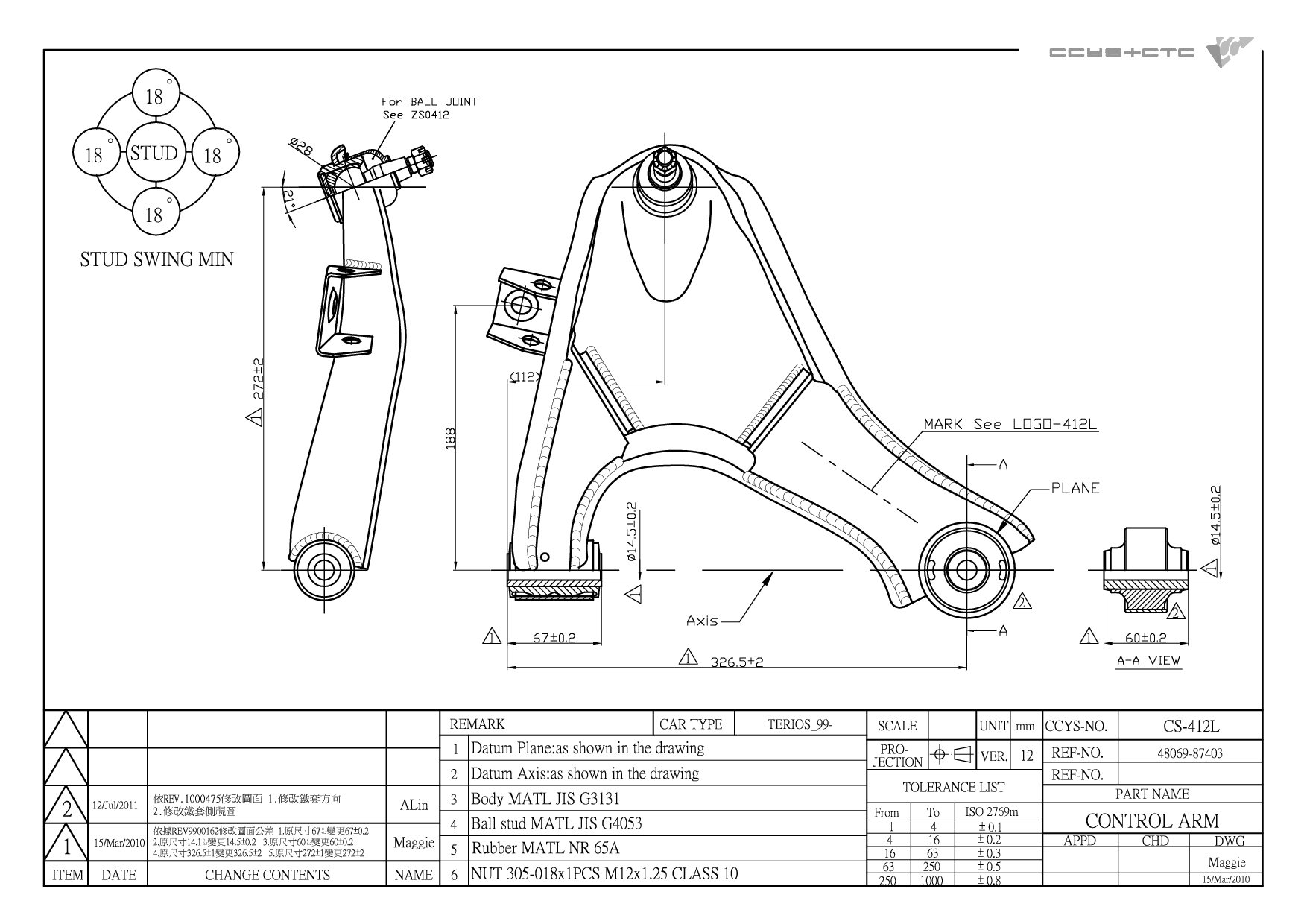

CS-412L
| Designation | Control Arm |
| Position | FRONT LOWER LH |
| OE No. | 43069-87401 / 48069-87401 / 48069-87402 / 48069-87403 / 48069-87405 |
| Length | 374.3 mm |
| Width | 323.3 mm |
| Height | 102.7 mm |
| Net Weight | 1.8 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH04009 | FRONT LOWER ARM REAR | 43068-87401 43069-87401 48068-87401 48068-87402 48068-87403 48068-87405 48069-87401 48069-87402 48069-87403 48069-87405 |
|
 |
CBH04010 | FRONT LOWER ARM INNER | 43068-87401 43069-87401 48068-87401 48068-87402 48068-87403 48068-87405 48069-87401 48069-87402 48069-87403 48069-87405 |
|
 |
CRE04007 | D= M12X1.25 , C= M11X1.5 | 45503-87501 |
|
 |
CS-412L | FRONT LOWER LH | 43069-87401 48069-87401 48069-87402 48069-87403 48069-87405 |
|
 |
CS-412R | FRONT LOWER RH | 43068-87401 48068-87401 48068-87402 48068-87403 48068-87405 |
| Model (Year) |
|---|
|
TERIOS (J1_) | TARUNA TERIOS KID (J11_, J13_) |
