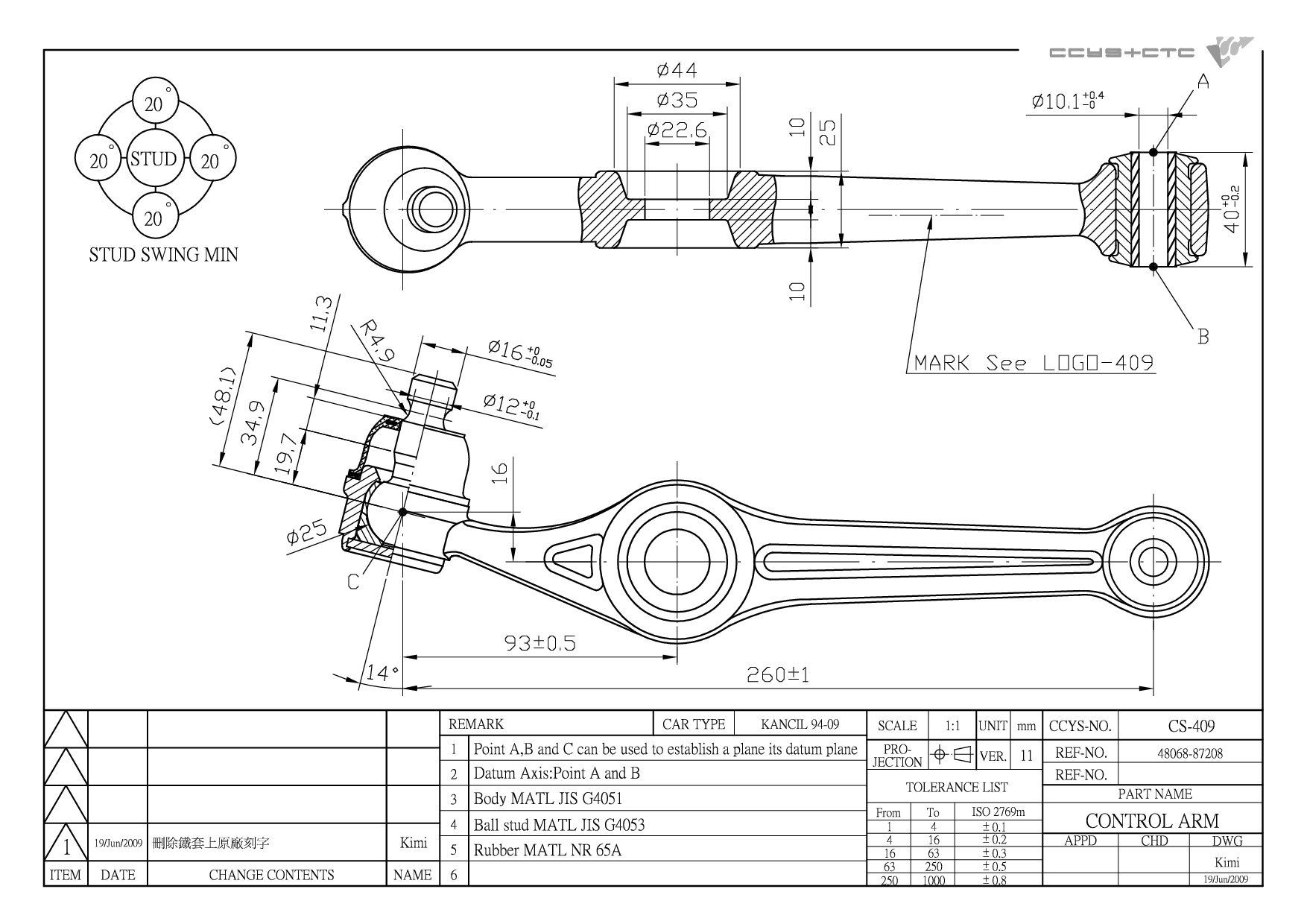

CS-409
| Designation | Control Arm |
| Position | FRONT LOWER LH/ RH |
| OE No. | 48068-87208 / 48068-87208-000 / 48068-87209 |
| Length | 314 mm |
| Width | 54 mm |
| Height | 95 mm |
| Net Weight | 1.37 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH04007 | FRONT LOWER ARM INNER | ||
 |

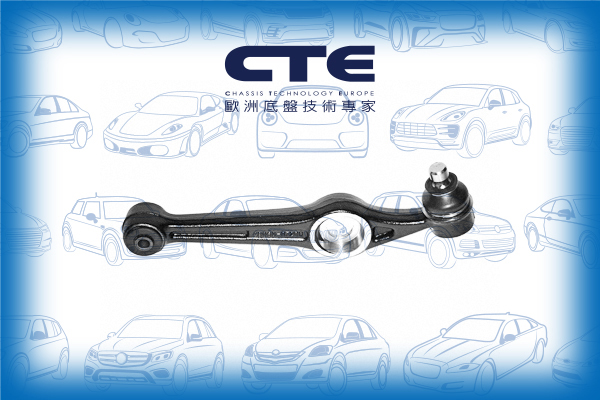

CS-409 | FRONT LOWER LH/ RH | 48068-87208 48068-87208-000 48068-87209 |
| Model (Year) |
|---|
|
CUORE I (L55, L60) | MIRA | MIRA / DOMINO CUORE II (L80, L81) | MIRA CUORE III (L200, L201) | MIRA CUORE IV (L501) | MIRA CUORE V (L7_) | MIRA MOVE (L6_) MOVE (L9_) |
| Model (Year) |
|---|
|
KANCIL | NIPPA |
