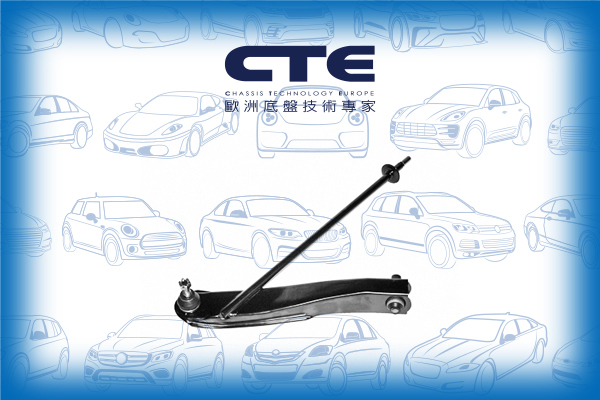

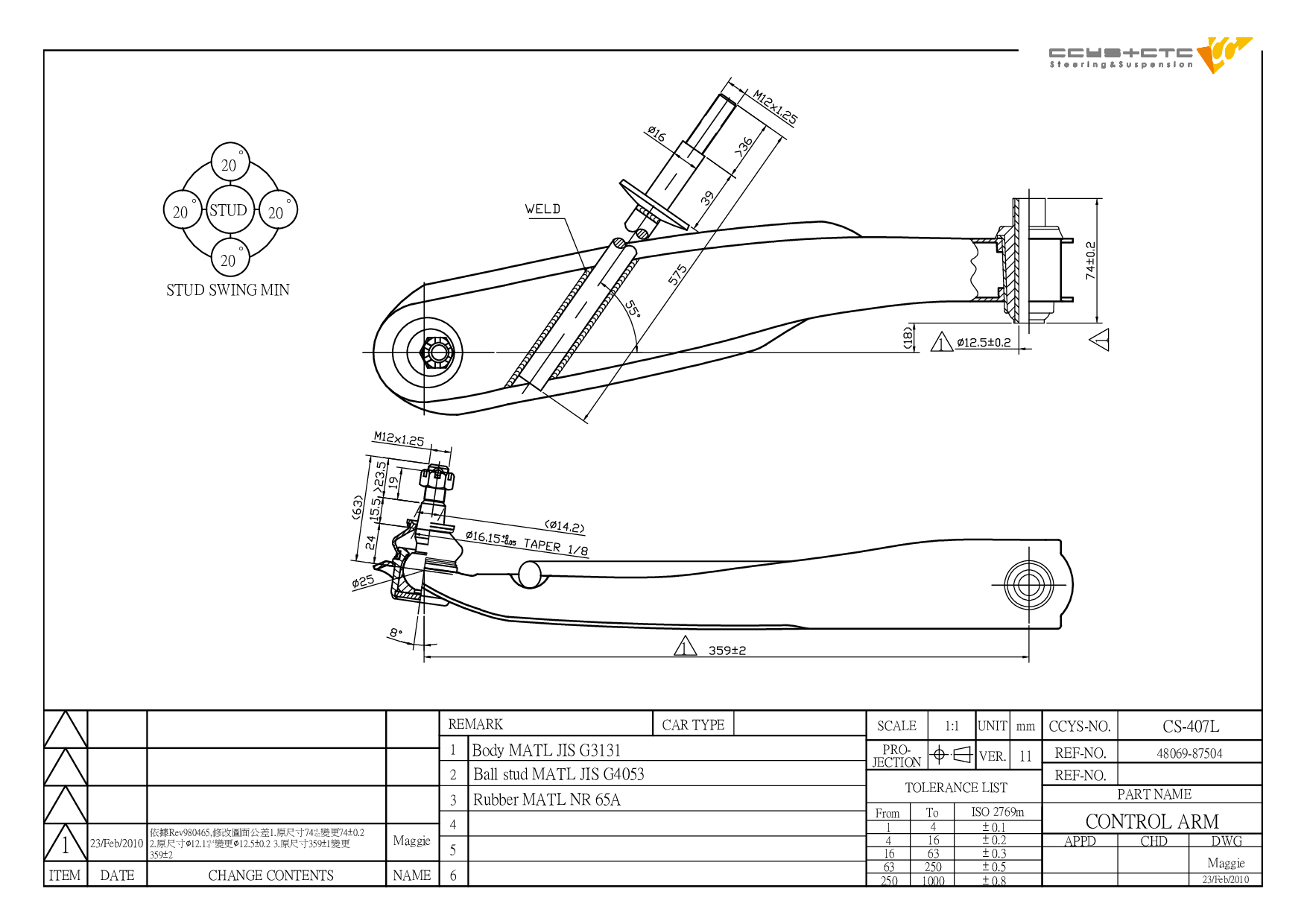

CS-407L
| Designation | Control Arm |
| Position | FRONT LOWER LH |
| OE No. | 48069-87504 / 48069-87504-000 / 48069-87511-000 |
| Length | 494 mm |
| Width | 428 mm |
| Height | 98 mm |
| Net Weight | 2.2 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH04006 | FRONT LOWER ARM INNER | 48068-87504 48068-87504-000 48068-87507 48068-87511-000 48068-87512 48068-87512000 48069-87504 48069-87504-000 48069-87507 48069-87511-000 48069-87512 48069-87512000 B006059 B006060 |
|
 |
CS-407L | FRONT LOWER LH | 48069-87504 48069-87504-000 48069-87511-000 |
|
 |

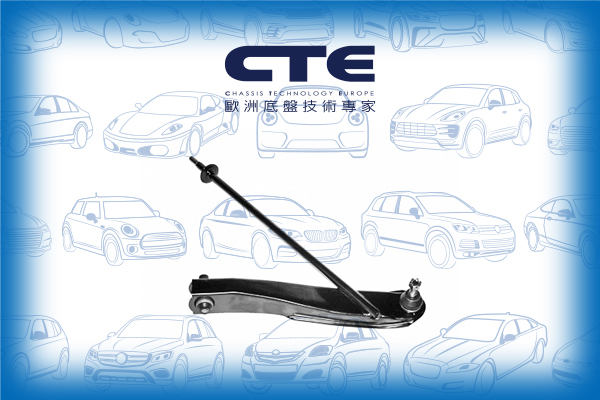

CS-407R | FRONT LOWER RH | 48068-87504 48068-87504-000 48068-87511-000 |
|
 |
CS-408L | FRONT LOWER LH | 48069-87507 48069-87512 48069-87512000 B006059 |
|
 |
CS-408R | FRONT LOWER RH | 48068-87507 48068-87512 48068-87512000 B006060 |
| Model (Year) |
|---|
|
HIJET Bus HIJET Platform/Chassis (_U20) HIJET Van (S85) HIJET Van (S8_) |
