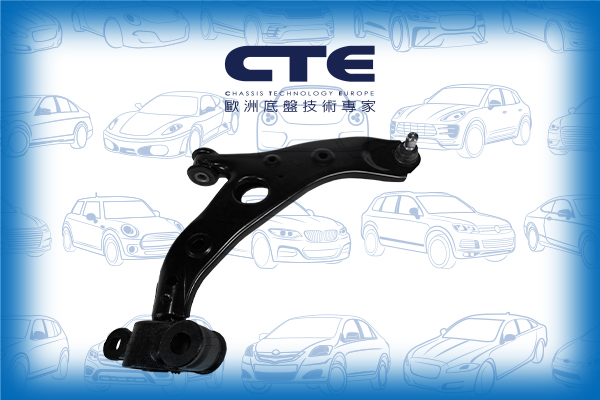

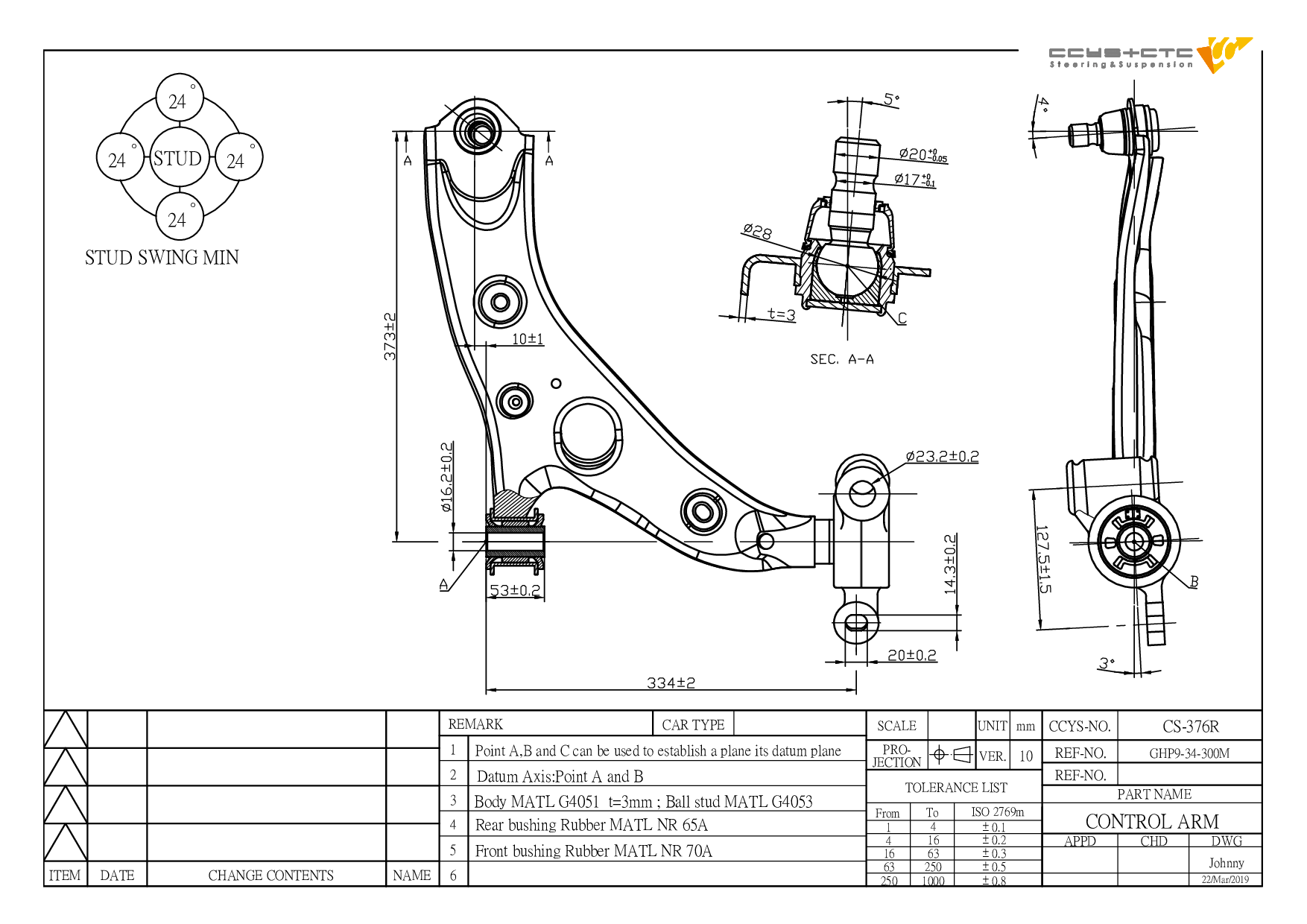

CS-376R
| Designation | Control Arm |
| Position | FRONT LOWER RH |
| OE No. | G46C-34-300 / G46C-34-300B / G46C-34-300E / G46C-34-300F / G46C-34-300G / G46C-34-300H / G46C-34-300J / GHP9-34-300 / GHP9-34-300A / GHP9-34-300B / GHP9-34-300C / GHP9-34-300D / GHP9-34-300E / GHP9-34-300F / GHP9-34-300G / GHP9-34-300H / GHP9-34-300J / GHP9-34-300K / GHP9-34-300L / GHP9-34-30 |
| Length | 373.29 mm |
| Width | 336 mm |
| Height | 97 mm |
| Net Weight | 5.3 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH03085 | FRONT LOWER ARM INNER | B45A-34-300 B45A-34-300A B45A-34-300C B45A-34-300D B45A-34-300E B45A-34-350 B45A-34-350D B45A-34-350E B45G-34-300 B45G-34-300A B45G-34-300C B45G-34-300E B45G-34-350E B60P-34-300 B60P-34-300B B60P-34-300D B60P-34-300E B60P-34-300F B60P-34-300G B60P-34-350 |
|
 |
CBH03104 | FRONT LOWER ARM REAR | D09H-34-300C D09H-34-350C D10E-34-300 D10E-34-300B D10E-34-350 D10E-34-350B D10E-35-460 DA7H-34-300B DA7H-34-350B |
|
|
CBH03105 | FRONT LOWER ARM INNER | D09H-34-300C D09H-34-350C D10E-34-300 D10E-34-350 D10E-34-470 DA7H-34-300B DA7H-34-350B |
|
 |

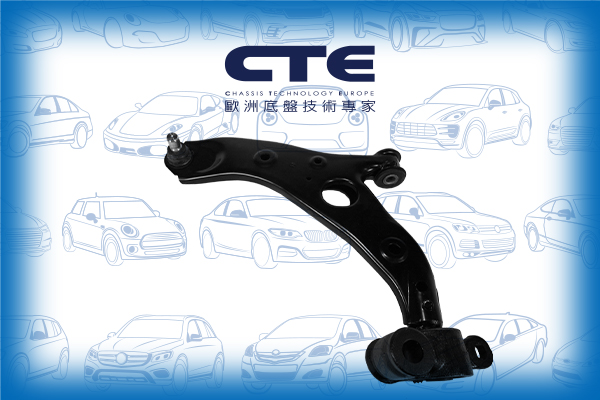

CS-376L | FRONT LOWER LH | G46C-34-350 G46C-34-350B G46C-34-350E G46C-34-350F G46C-34-350G G46C-34-350H G46C-34-350J GHP9-34-350 GHP9-34-350A GHP9-34-350B GHP9-34-350C GHP9-34-350D GHP9-34-350E GHP9-34-350F GHP9-34-350G GHP9-34-350H GHP9-34-350J GHP9-34-350K GHP9-34-350L GHP9-34-35 |
|
 |
CS-376R | FRONT LOWER RH | G46C-34-300 G46C-34-300B G46C-34-300E G46C-34-300F G46C-34-300G G46C-34-300H G46C-34-300J GHP9-34-300 GHP9-34-300A GHP9-34-300B GHP9-34-300C GHP9-34-300D GHP9-34-300E GHP9-34-300F GHP9-34-300G GHP9-34-300H GHP9-34-300J GHP9-34-300K GHP9-34-300L GHP9-34-30 |
|
 |
CS-396L | FRONT LOWER LH | D10E-34-350 D10E-34-350A D10E-34-350B D24H-34-350 D24H-34-350A D24H-34-350B |
|
 |
CS-396R | FRONT LOWER RH | D10E-34-300 D10E-34-300A D10E-34-300B D24H-34-300 D24H-34-300A D24H-34-300B |
|
 |
CSL03076 | FRONT AXLE LH/ RH | K750507 KD35-34-170 MR589437 |
| Model (Year) |
|---|
|
6 Saloon (GJ, GL) | ATENZA |
