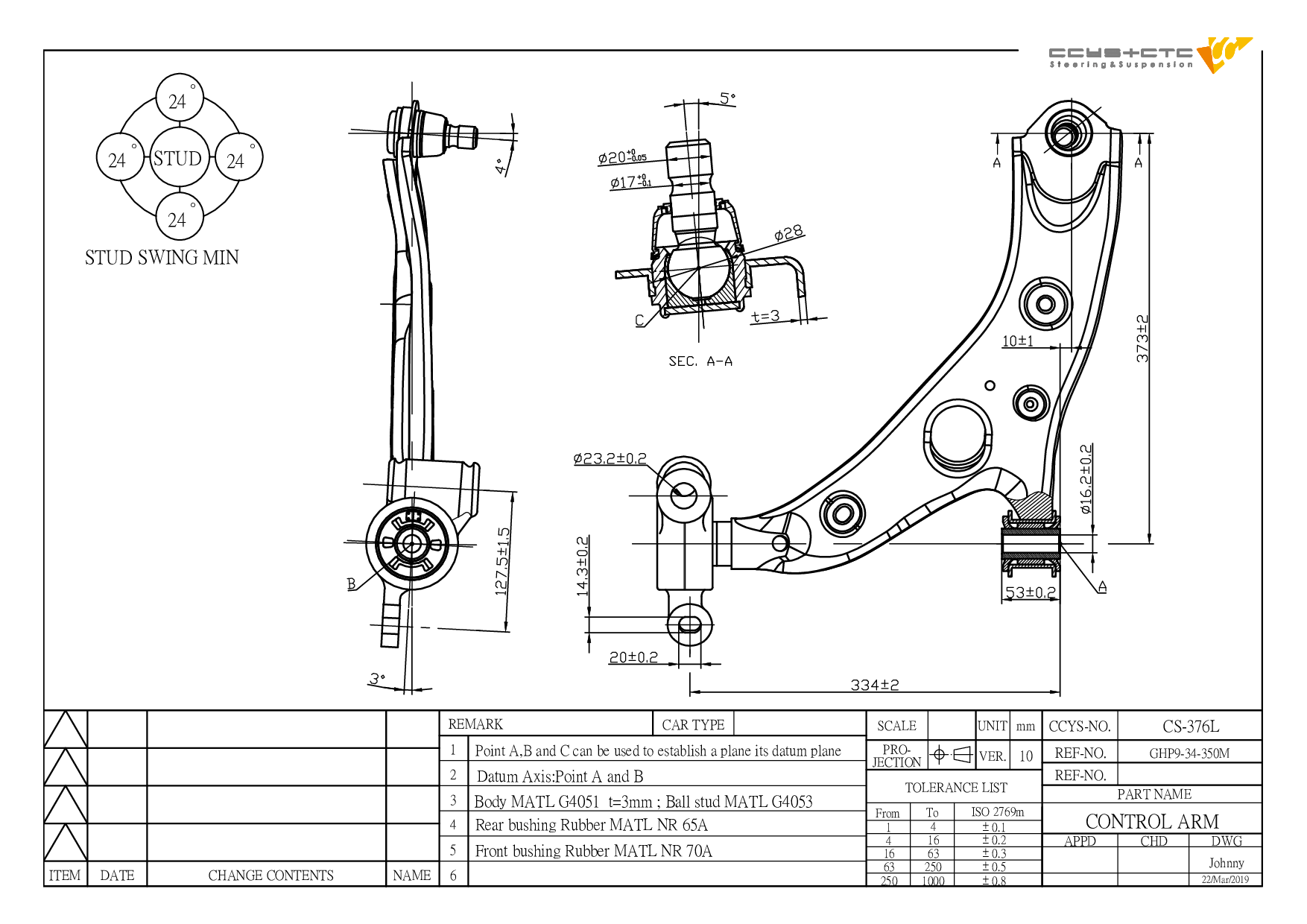

CS-376L
| Designation | Control Arm |
| Position | FRONT LOWER LH |
| OE No. | G46C-34-350 / G46C-34-350B / G46C-34-350E / G46C-34-350F / G46C-34-350G / G46C-34-350H / G46C-34-350J / GHP9-34-350 / GHP9-34-350A / GHP9-34-350B / GHP9-34-350C / GHP9-34-350D / GHP9-34-350E / GHP9-34-350F / GHP9-34-350G / GHP9-34-350H / GHP9-34-350J / GHP9-34-350K / GHP9-34-350L / GHP9-34-35 |
| Length | 373.29 mm |
| Width | 336 mm |
| Height | 97 mm |
| Net Weight | 5.3 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH03085 | FRONT LOWER ARM INNER | ||
 |
CS-376L | FRONT LOWER LH | G46C-34-350 G46C-34-350B G46C-34-350E G46C-34-350F G46C-34-350G G46C-34-350H G46C-34-350J GHP9-34-350 GHP9-34-350A GHP9-34-350B GHP9-34-350C GHP9-34-350D GHP9-34-350E GHP9-34-350F GHP9-34-350G GHP9-34-350H GHP9-34-350J GHP9-34-350K GHP9-34-350L GHP9-34-35 |
|
 |
CS-376R | FRONT LOWER RH | G46C-34-300 G46C-34-300B G46C-34-300E G46C-34-300F G46C-34-300G G46C-34-300H G46C-34-300J GHP9-34-300 GHP9-34-300A GHP9-34-300B GHP9-34-300C GHP9-34-300D GHP9-34-300E GHP9-34-300F GHP9-34-300G GHP9-34-300H GHP9-34-300J GHP9-34-300K GHP9-34-300L GHP9-34-30 |
| Model (Year) |
|---|
|
6 Saloon (GJ, GL) | ATENZA |
