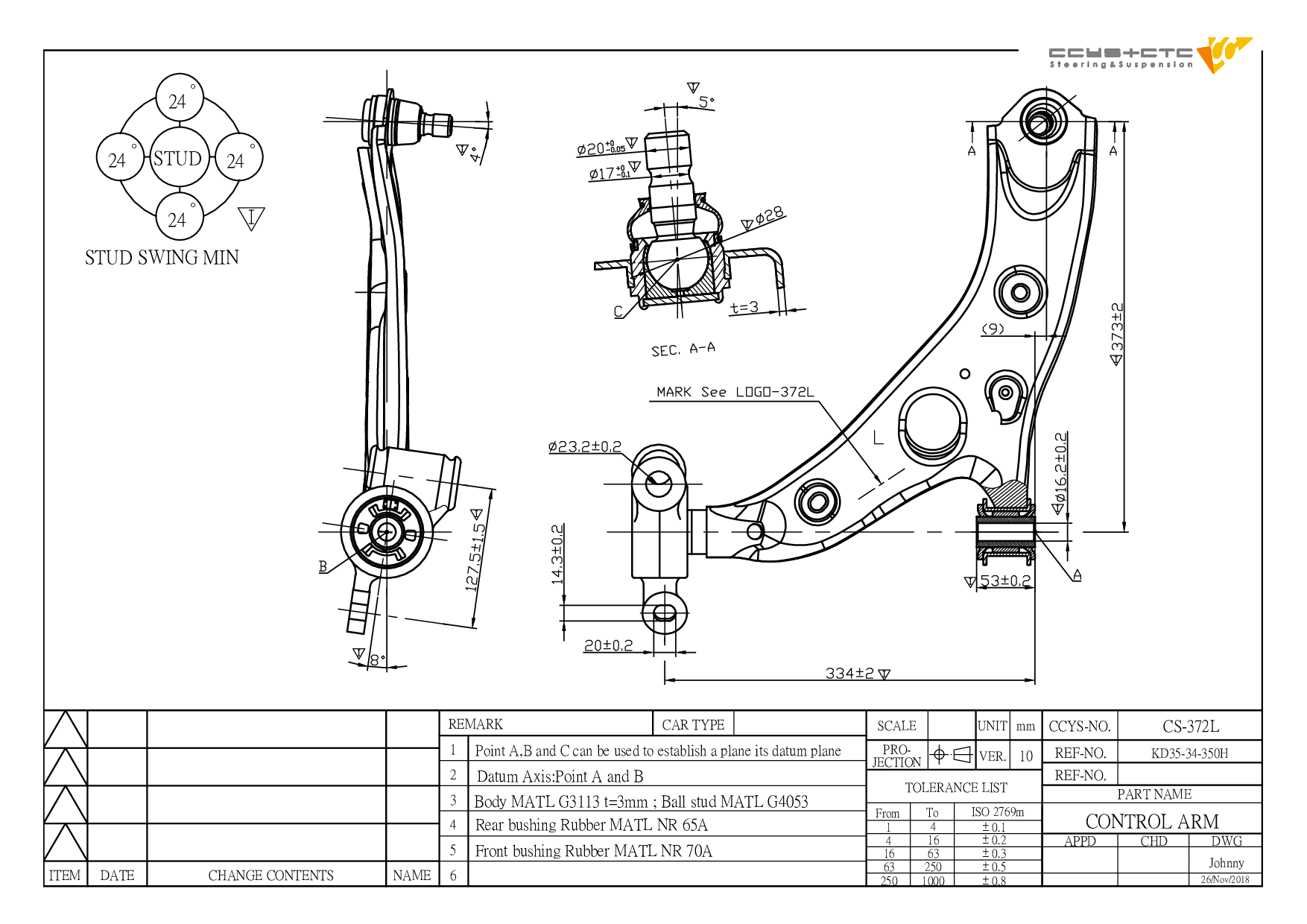

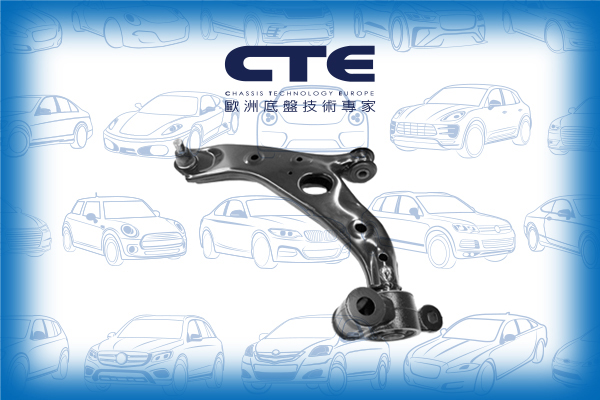

CS-372L
| Designation | Control Arm |
| Position | FRONT LOWER LH |
| OE No. | KD35-34-350D / KD35-34-350F / KD35-34-350G / KD35-34-350H / KD35-34-350P / KD53-34-350A / KD53-34-350D / KD53-34-350E |
| Length | 373.59 mm |
| Width | 335.18 mm |
| Height | 98 mm |
| Net Weight | 5.3 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH03084L | FRONT LOWER ARM LH REAR | ||
 |
CBH03084R | FRONT LOWER ARM RH REAR | ||
 |
CBH03085 | FRONT LOWER ARM INNER | KB7W-34-300C KB7W-34-300F KB7W-34-300H KB7W-34-350C KB7W-34-350F KB7W-34-350H KB8W-34-300C KB8W-34-300G KB8W-34-300H KB8W-34-350C KB8W-34-350G KB8W-34-350H KD35-34- 470E KD35-34-470 KD35-34-470C TK48-34- 470 TK48-34-470A |
|
 |
CBH03089 | FRONT LOWER ARM REAR | ||
 |

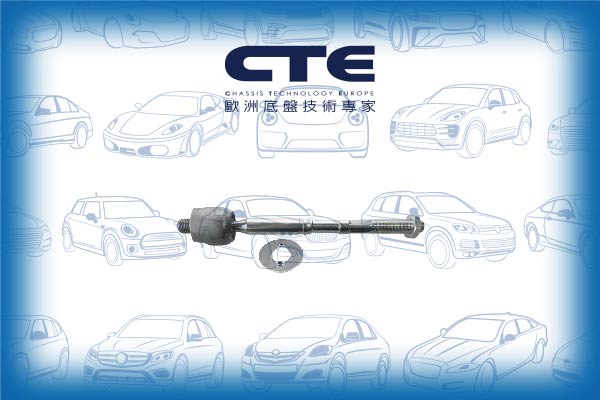

CRE02133 | FRONT AXLE LH/ RH | 45503-09100 45503-0B020 45503-29395 45503-29665 45503-49015 45503-49035 |
|
 |

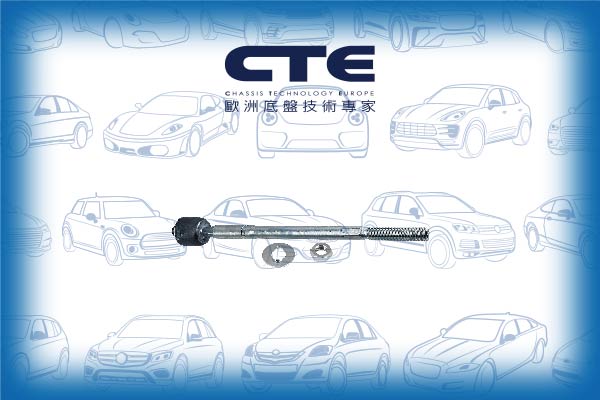

CRE02152 | FRONT AXLE LH/ RH | 45503-29665 45503-39165 |
|
 |
CS-372L | FRONT LOWER LH | KD35-34-350D KD35-34-350F KD35-34-350G KD35-34-350H KD35-34-350P KD53-34-350A KD53-34-350D KD53-34-350E |
|
 |

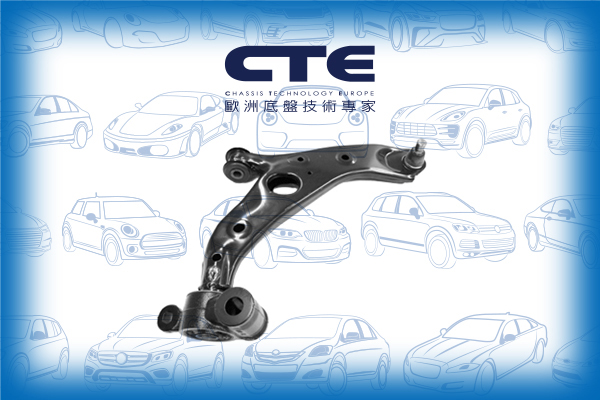

CS-372R | FRONT LOWER RH | KD35-34-300D KD35-34-300F KD35-34-300G KD35-34-300H KD35-34-300P KD53-34-300A KD53-34-300D KD53-34-300E |
| Model (Year) |
|---|
|
CX-5 (KE, GH) |
