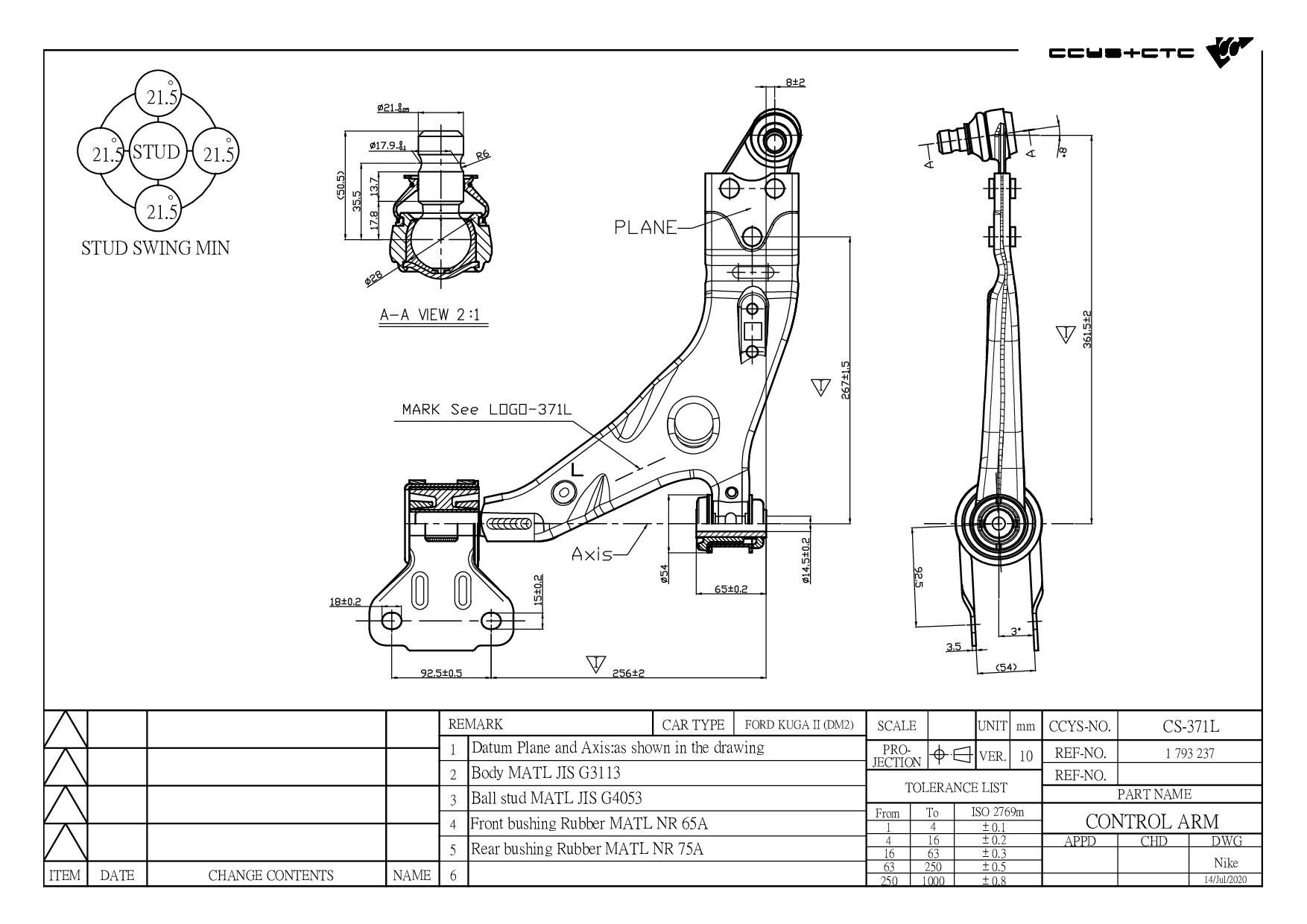

CS-371L
| Designation | Control Arm |
| Position | FRONT LOWER LH |
| OE No. | 1 781 660 / 1793237 / CV61 3A424 AAC / CV61-3A424-AAB |
| Length | 504 mm |
| Width | 402 mm |
| Height | 97 mm |
| Net Weight | 4.97 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |

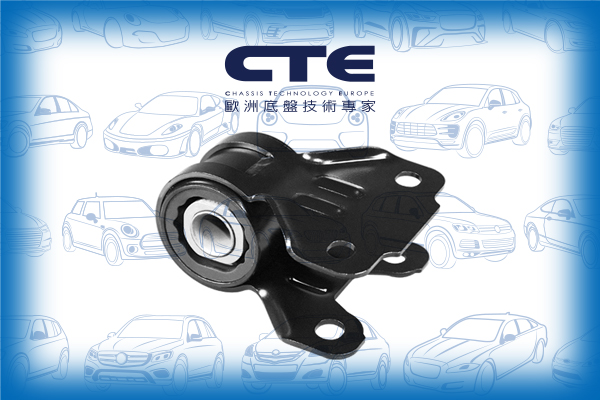

CBH03083 | FRONT LOWER ARM REAR | 1 781 658 1 781 660 1793236 1793237 1809551 B39D-34-300 B39D-34-350 BBM2-34-300 BBM2-34-300A BBM2-34-350 BBM2-34-350A CV61 3A423 AAC CV61 3A424 AAC CV61-3A262-AAA CV61-3A423-AAB CV61-3A424-AAB |
|
 |

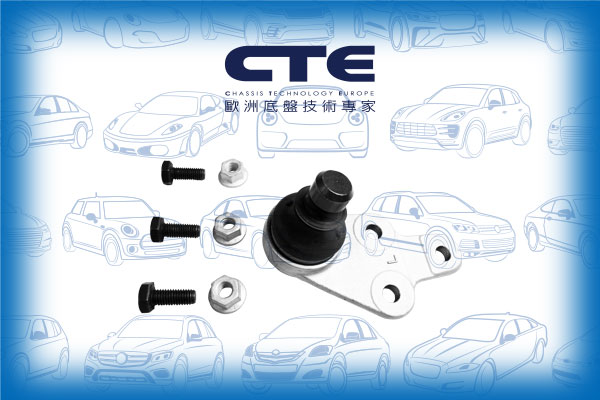

CBJ03023L | FRONT LOWER LH | 1 781 660 1793237 CV61 3A424 AAC CV61-6A424-AAB |
|
 |

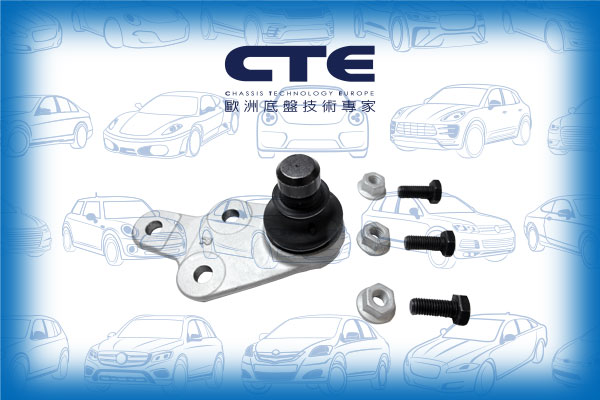

CBJ03023R | FRONT LOWER RH | 1 781 658 1793236 CV61 3A423 AAC CV61-3A423-AAB |
|
 |

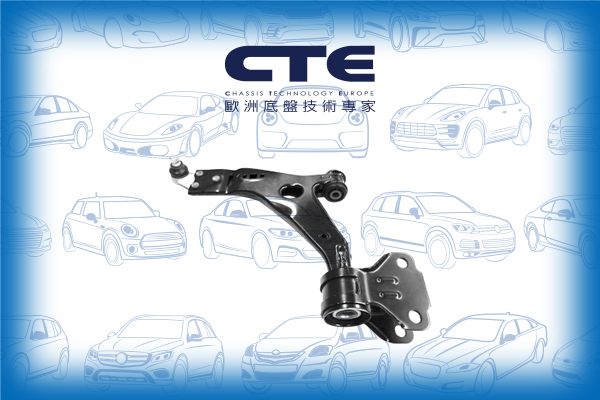

CS-371L | FRONT LOWER LH | 1 781 660 1793237 CV61 3A424 AAC CV61-3A424-AAB |
|
 |

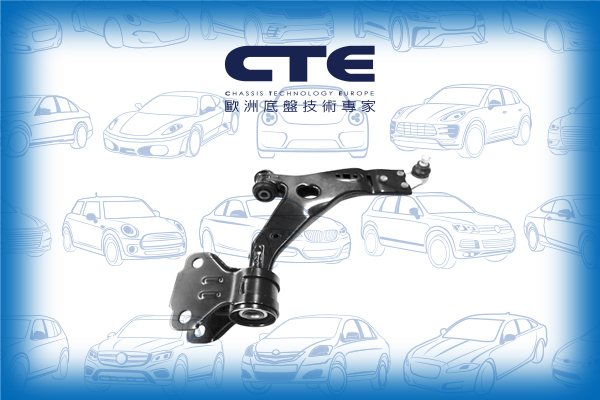

CS-371R | FRONT LOWER RH | 1 781 658 1793236 CV61 3A423 AAC CV61-3A423-AAB |
|
 |

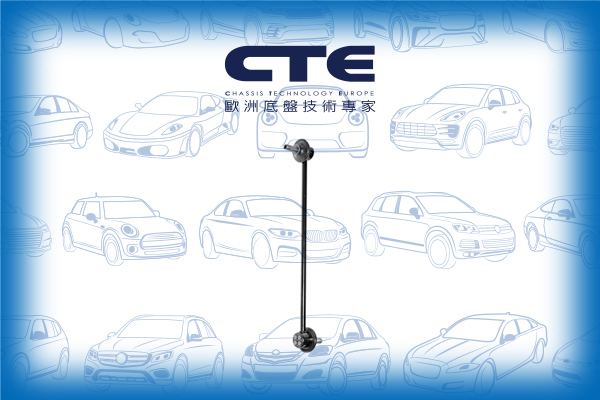

CSL03038 | FRONT (A= 306MM) | 1223792 1230909 1686594 1762149 1851900 31277652 31340273 3M513B438AA 3M513B438AB 8623576 AV61-3B438-AA AV61-3B438-BA B37F-34-170A BP4K-34-170 BP4K-34-170A BP4K-34-170B BP4K-34-170C BP4K-34-170D |
| Model (Year) |
|---|
|
KUGA II (DM2) | ESCAPE KUGA II VAN |
