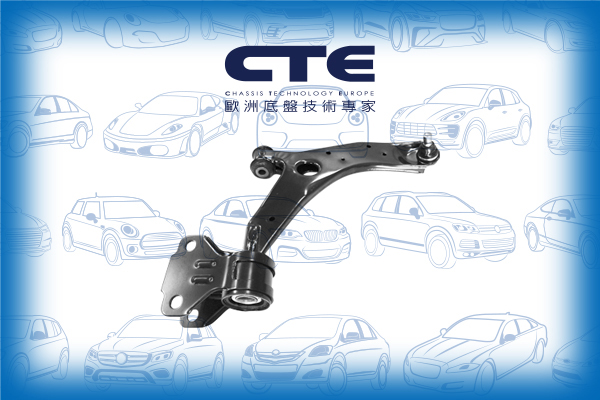

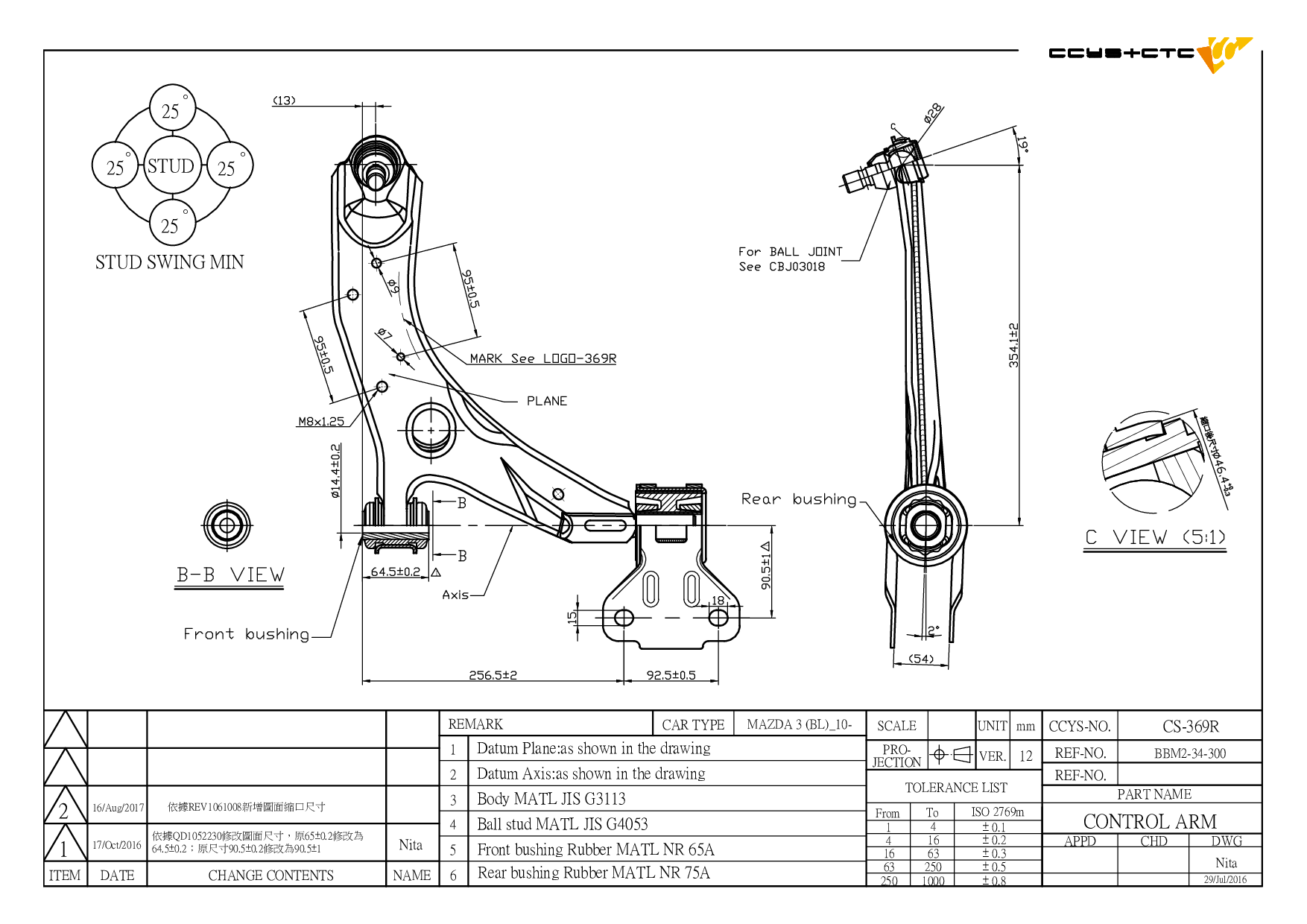

CS-369R
| Designation | Control Arm |
| Position | FRONT LOWER RH |
| OE No. | B39D-34-300 / B39D-34-300A / BBM2-34-300 / BBM2-34-300A |
| Length | 503.13 mm |
| Width | 340 mm |
| Height | 122 mm |
| Net Weight | 4.67 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH03020 | REAR LINK INNER/ OUTER | 6784590 6829045 93BB-5K653-AB |
|
 |
CBH03048 | REAR LINK | 1061668 1100983 1105524 1231455 1251941 1253734 13000384 13001121 30683067 3M51-5K653-AA 3M51-5K653-AB 3M51-5K653-AC 3M51-5K743-AC 98AG-5K743-AE 98AG-5K743-AF BBP3-28-500A BP4K-28-500A BP4K-28-500B BP4K-28-500C BP4K-28-500D BP4K-28-500E C236-28-500 C236-2 |
|
 |
CBH03083 | FRONT LOWER ARM REAR | 1 781 658 1 781 660 1793236 1793237 1809551 B39D-34-300 B39D-34-350 BBM2-34-300 BBM2-34-300A BBM2-34-350 BBM2-34-350A CV61 3A423 AAC CV61 3A424 AAC CV61-3A262-AAA CV61-3A423-AAB CV61-3A424-AAB |
|
 |
CS-341 | REAR AXLE LH/ RH | 1061668 1100983 1105524 1223958 1231455 1253735 1388327 1500111 30666300 30683067 3M51-5K743-AC 3M51-5K743-AD 3N61-5K743-BB 8646064 8V41-5K743-AA 98AG-5K743-AF BBP3-28-500A BP4K-28-500A BP4K-28-500B BP4K-28-500C BP4K-28-500D BP4K-28-500E C236-28-500 C236- |
|
 |
CS-347 | REAR UPPER LH/ RH | 1061659 1061662 1073252 1100977 1113289 1136072 1223897 1231457 1253737 1317609 1329730 1484033 1503993 1517403 1524422 1752736 1M515500AA 1M515500AB 1M51-5500-AC 2512873 3093462 31201356 31212503 31277305 3M515500BA 74 85 104 224 85104224 8671921 8M51-55 |
|
 |
CS-361 | REAR LOWER LH/ RH | 1223951 1231454 1253733 1335249 1548460 30639917 30666105 31277584 3M515K652AA 3M515K652AB 3M515K652AC 4M515K652CA 4M515K652CB 8646157 8646158 BBP3-28-300A BBP3-28-300B BBP3-28-300C BP4K-28-300A BP4K-28-300B BP4K-28-300C BP4K-28-300D BP4K-28-300E C236-28- |
|
 |

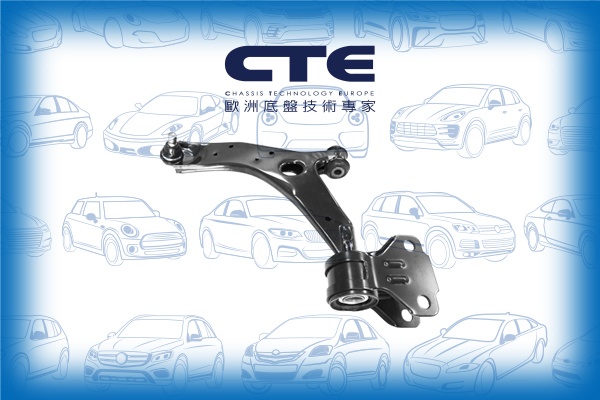

CS-369L | FRONT LOWER LH | B39D-34-350 B39D-34-350A BBM2-34-350 BBM2-34-350A |
|
 |
CS-369R | FRONT LOWER RH | B39D-34-300 B39D-34-300A BBM2-34-300 BBM2-34-300A |
|
 |
CSL03037 | REAR (A= 76MM) | 1223923 1231452 1253969 1304120 1310333 1335548 1469208 1734686 2408359 3M51 5C486 BE 3M515C486BC 3M515C486BD 3M515C486BF 3M5J-5C486-BF BP4K-28-170A BP4K-28-170C BP4K-28-170D BP4K-28-170E BP4K-28-170F BP4K-28-170G BP4K-28-170H |
| Model (Year) |
|---|
|
3 (BL) | AXELA 3 Saloon (BL) | AXELA |
