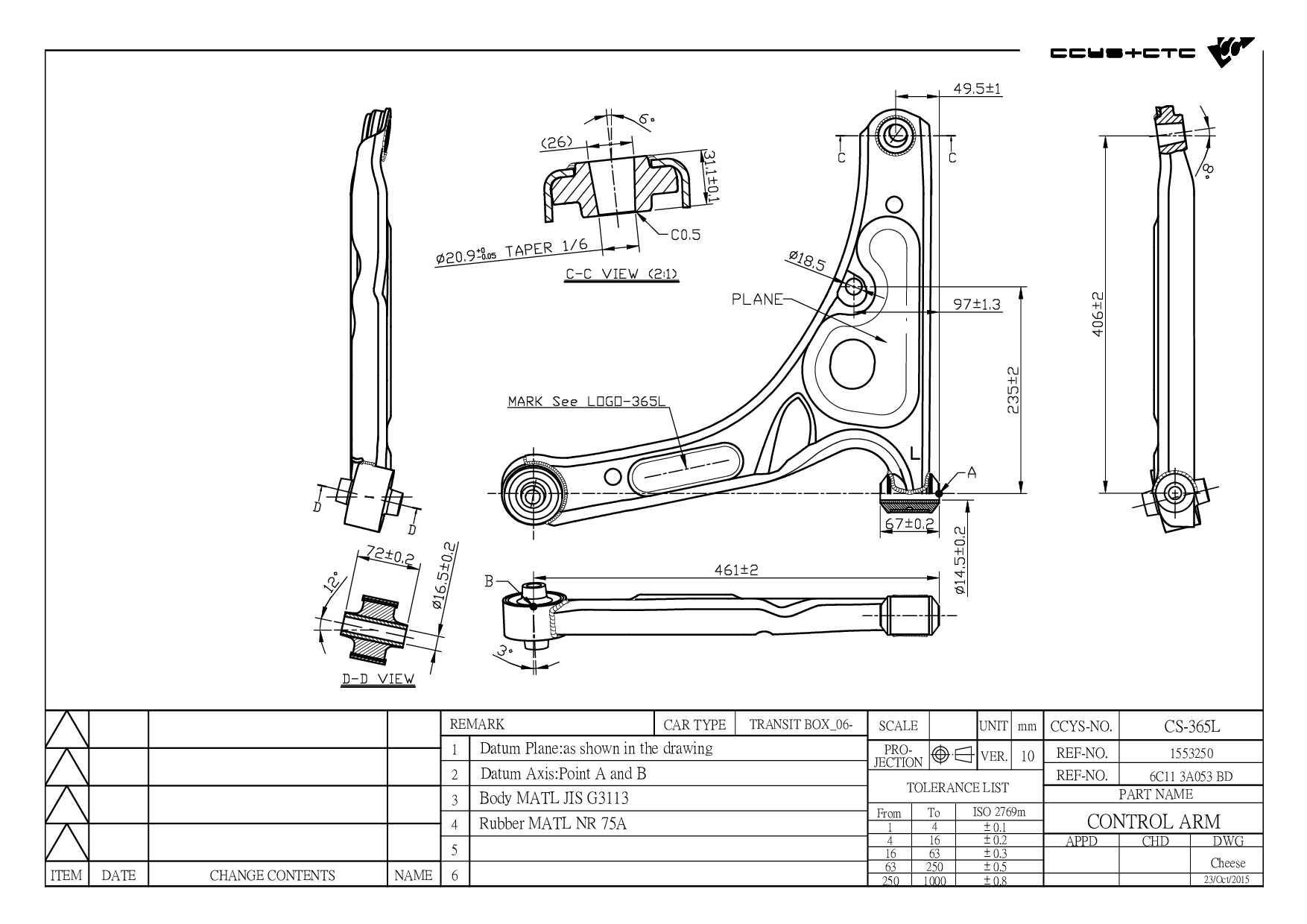

CS-365L
| Designation | Control Arm |
| Position | FRONT LOWER LH (H/Duty) |
| OE No. | 1371228 / 1438254 / 1495684 / 1553250 / 6C11 3A053 BA / 6C11 3A053 BB / 6C11 3A053 BC / 6C11 3A053 BD |
| Length | 497 mm |
| Width | 482 mm |
| Height | 76 mm |
| Net Weight | 6.42 kg |
FORD TRANSIT Bus (FD__,FB__,FS__,FZ__,FC__) Platform
Chassis (FM__,FN__,FF__) TOURNEO Bus Van (FA__) for vehicles with increased axle load
Chassis (FM__,FN__,FF__) TOURNEO Bus Van (FA__) for vehicles with increased axle load
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH03055 | FRONT LOWER ARM REAR | 1495717 4042024 4372132 4540787 6C16 3A262 AA YC15 3A262 AD YC15 3A262 AE YC15 3A262 AF |
|
 |

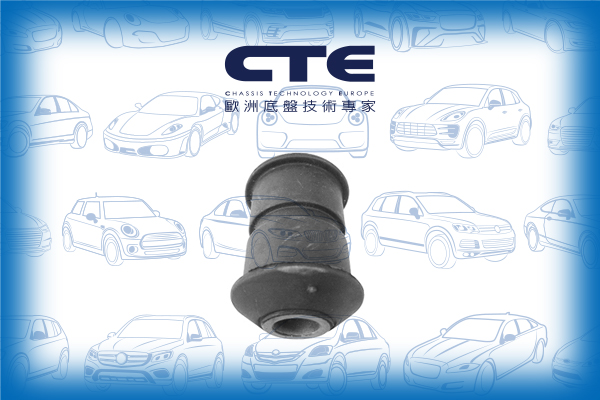

CBH03056 | LOWER FRONT AXLE LEFT/RIGHT | 4131788 |
|
 |
CRE03050L | LH D= M16X1.5 , C= M16X1.5 | 1370709 4059923 4602028 6C11-3L519-AA YC15-3L519-AA YC15-3L519-AB |
|
 |
CRE03050R | RH D= M16X1.5 , C= M20X1.5 | 1370710 4059924 4577976 6C11-3L519-BA YC15-3L519-BA YC15-3L519-BB |
|
 |
CS-345L | FRONT LOWER LH | 1438318 1438350 1495667 1553251 1735890 4042023 4140394 4164521 4372131 4540775 6C113A053EA 6C113A053EB 6C113A053FA 6C113A053FB 6C113A053FC YC153A053AH YC153A053AJ YC153A053AK YC153A053AL YC153A053AM |
|
 |
CS-345R | FRONT LOWER RH | 1438315 1438316 1495666 1553246 1735889 4042022 4140393 4164518 4372130 4540774 6C113A042EA 6C113A052EA 6C113A052EB 6C113A052FC YC153A052AH YC153A052AJ YC153A052AL YC153A052AM |
|
 |
CS-365L | FRONT LOWER LH (H/DUTY) | 1371228 1438254 1495684 1553250 6C11 3A053 BA 6C11 3A053 BB 6C11 3A053 BC 6C11 3A053 BD |
|
 |
CS-365R | FRONT LOWER RH (H/DUTY) | 1371231 1438253 1495683 1553239 6C11 3A052 BA 6C11 3A052 BB 6C11 3A052 BC 6C11 3A052 BD |
|
 |
CSL03065 | FRONT AXLE LH/RH | 1495685 1763714 2033148 3C11-3B438-AC 3C11-3B438-AD 4519467 BK21-3B438-AA BK21-3B438-AB |
| Model (Year) |
|---|
|
TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) TRANSIT TOURNEO Bus TRANSIT Van (FA_ _) |
