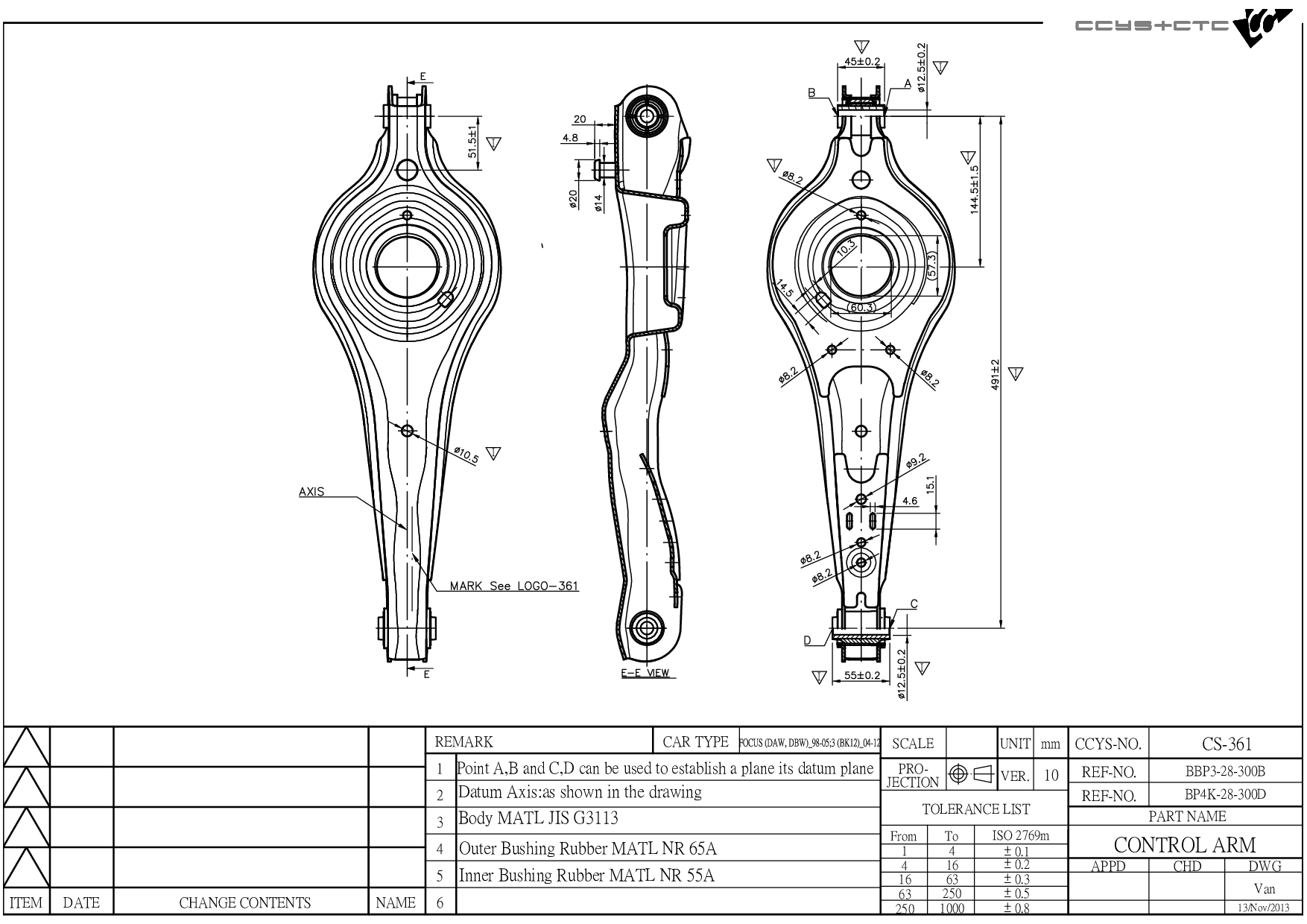

CS-361
| Designation | Control Arm |
| Position | REAR LOWER LH/ RH |
| OE No. | 1223951 / 1231454 / 1253733 / 1335249 / 1548460 / 30639917 / 30666105 / 31277584 / 3M515K652AA / 3M515K652AB / 3M515K652AC / 4M515K652CA / 4M515K652CB / 8646157 / 8646158 / BBP3-28-300A / BBP3-28-300B / BBP3-28-300C / BP4K-28-300A / BP4K-28-300B / BP4K-28-300C / BP4K-28-300D / BP4K-28-300E / C236-28- |
| Length | 552 mm |
| Width | 180 mm |
| Height | 84 mm |
| Net Weight | 3.02 kg |
(544) Vehicle Identification Number to 177139
(545) Vehicle Identification Number to 179147
(545) Vehicle Identification Number to 179147
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH03020 | REAR LINK INNER/ OUTER | 1041683 1093772 1116608 1220005 1325326 1S715500AA 1S715500AC 1S715K743CA 6710264 6784590 6829045 6829058 93BB5500AC 93BB5500AD 93BB5500AE 93BB-5K653-AB |
|
 |
CBH03033 | REAR | 1061670 1061670S2 1254368 1304124 30666331 30666821 3M51-5K896-AC 735839128 98AG-5K896-AB C2Y6-28-46X |
|
 |
CBH03034 | FRONT LOWER ARM INNER | 1061570 98AG-3063-AE |
|
 |
CBH03035 | FRONT LOWER ARM REAR | 1067918 2M51-3A262-AA 2M51-3A262-AB 98AG-3A262-AG 98AG-3A262-AH |
|
 |
CBH03048 | REAR LINK | 1061668 1100983 1105524 1231455 1251941 1253734 13000384 13001121 30683067 3M51-5K653-AA 3M51-5K653-AB 3M51-5K653-AC 3M51-5K743-AC 98AG-5K743-AE 98AG-5K743-AF BBP3-28-500A BP4K-28-500A BP4K-28-500B BP4K-28-500C BP4K-28-500D BP4K-28-500E C236-28-500 C236-2 |
|
 |

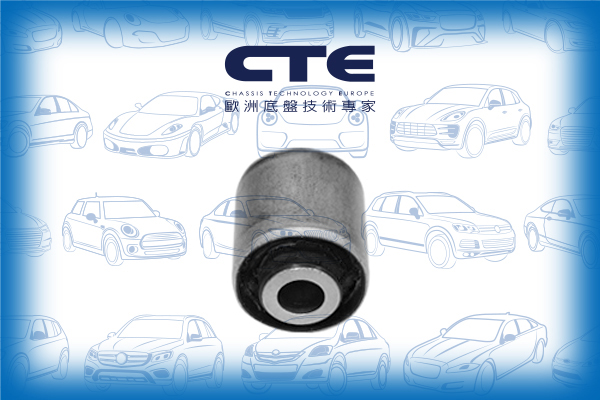

CBH03077 | REAR LOWER ARM OUTER | 1223951 1231454 1253733 1335249 1548460 30639917 30666105 31277584 3M515K652AA 3M515K652AB 3M515K652AC 4M515K652CA 4M515K652CB 8646157 8646158 BBP3-28-300A BBP3-28-300B BBP3-28-300C BP4K-28-300A BP4K-28-300B BP4K-28-300C BP4K-28-300D BP4K-28-300E C236-28- |
|
 |

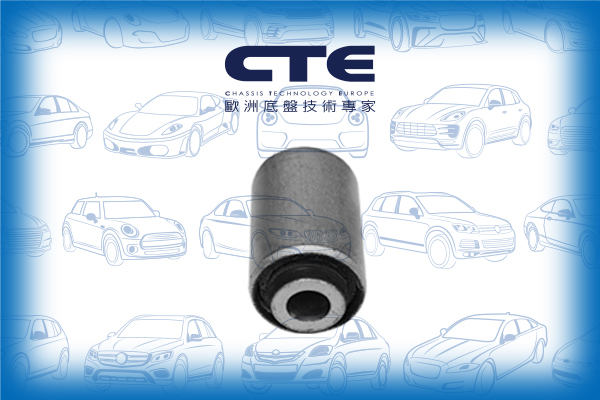

CBH03078 | REAR LOWER ARM INNER | 1223951 1231454 1253733 1335249 1548460 30639917 30666105 31277584 3M515K652AA 3M515K652AB 3M515K652AC 4M515K652CA 4M515K652CB 8646157 8646158 BBP3-28-300A BBP3-28-300B BBP3-28-300C BP4K-28-300A BP4K-28-300B BP4K-28-300C BP4K-28-300D BP4K-28-300E C236-28- |
|
 |
CBJ03012 | FRONT LOWER LH/ RH | 1679401 96FB3395AB 98AG-3042-ZZ 98AG-3051-ZZ 98AG-3395-AE ME98AG-3395-AA |
|
 |
CBJ03012A | FRONT LOWER LH/ RH | 1679401 96FB3395AB 98AG-3042-ZZ 98AG-3051-ZZ 98AG-3395-AE ME98AG-3395-AA |
|
 |
CRE03046 | D= M14X2.0 , C= M14X1.5 | 1085520 3043523 3707333 4083655 98AG-3L519-AA XS4C-3280-AB XS4C-3280-BA YS4C-3200-BA |
|
 |
CS-331L | FRONT LOWER LH | 1073215 1090738 1138161 1148932 1207974 1212810 1344968 2M513051BA 2M513051BB 2M513051BC 2M513051BD 2M513051BE 98AG3051AJ 98AG-3051-AK |
|
 |
CS-331R | FRONT LOWER RH | 1073214 1090730 1138160 1148931 1207973 1212809 1344966 2M513042BA 2M513042BB 2M513042BC 2M513042BD 2M513042BE 98AG3042AJ 98AG-3042-AK |
|
 |
CS-341 | REAR AXLE LH/ RH | 1061668 1100983 1105524 1223958 1231455 1253735 1388327 1500111 30666300 30683067 3M51-5K743-AC 3M51-5K743-AD 3N61-5K743-BB 8646064 8V41-5K743-AA 98AG-5K743-AF BBP3-28-500A BP4K-28-500A BP4K-28-500B BP4K-28-500C BP4K-28-500D BP4K-28-500E C236-28-500 C236- |
|
 |
CS-347 | REAR UPPER LH/ RH | 1061659 1061662 1073252 1100977 1113289 1136072 1223897 1231457 1253737 1317609 1329730 1484033 1503993 1517403 1524422 1752736 1M515500AA 1M515500AB 1M51-5500-AC 2512873 3093462 31201356 31212503 31277305 3M515500BA 74 85 104 224 85104224 8671921 8M51-55 |
|
 |
CS-361 | REAR LOWER LH/ RH | 1223951 1231454 1253733 1335249 1548460 30639917 30666105 31277584 3M515K652AA 3M515K652AB 3M515K652AC 4M515K652CA 4M515K652CB 8646157 8646158 BBP3-28-300A BBP3-28-300B BBP3-28-300C BP4K-28-300A BP4K-28-300B BP4K-28-300C BP4K-28-300D BP4K-28-300E C236-28- |
|
 |

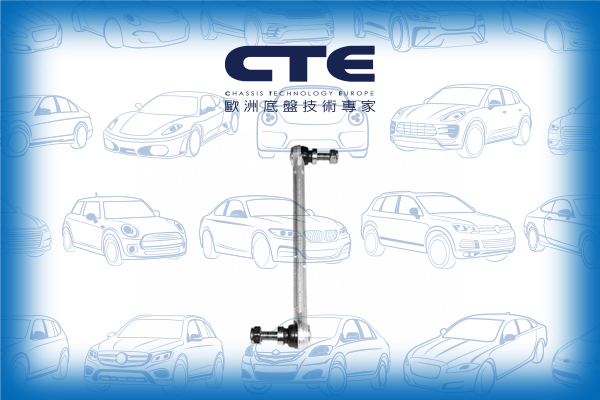

CSL03035 | FRONT (A= 235.5MM ALUM.) | 1004018 1061631 1067818 1071336 1107068 1107069 1111769 1130273 1135077 1209035 1209036 1471446 5S43-3B438-AA 6186082 6188004 6198621 95167261 98AG-3B438-AD YS41-3B438-AA YS41-3B438-AB YS41-3B438-BA YS4Z-5K484-AA YS71-3B438-AA |
|
 |
CSL03054 | REAR | 1061702 1061703 1136725 1203093 1487402 2M51-5E494-AA 2M51-5E494-AB 4056A052 98AG-5495-AB |
| Model (Year) |
|---|
|
C-MAX (DM2) FOCUS C-MAX (DM2) FOCUS I (DAW, DBW) FOCUS II (DA_, HCP, DP) FOCUS II Convertible FOCUS II Estate Van FOCUS II Saloon (DB_, FCH, DH) |
| Model (Year) |
|---|
|
3 (BK) | AXELA 3 (BL) | AXELA 3 Saloon (BK) | AXELA 3 Saloon (BL) 3 Saloon (BL) | AXELA 3 Saloon (BM_, BN_) | AXELA 323 C IV (BG) | FAMILIA 323 F IV (BG) | FAMILIAASTINA 323 S IV (BG) | PROTEGE | FAMILIA 5 (CR) | PREMACY 5 (CW) | PREMACY |
| Model (Year) |
|---|
|
C30 (533) S40 II (544) V50 (545) |
