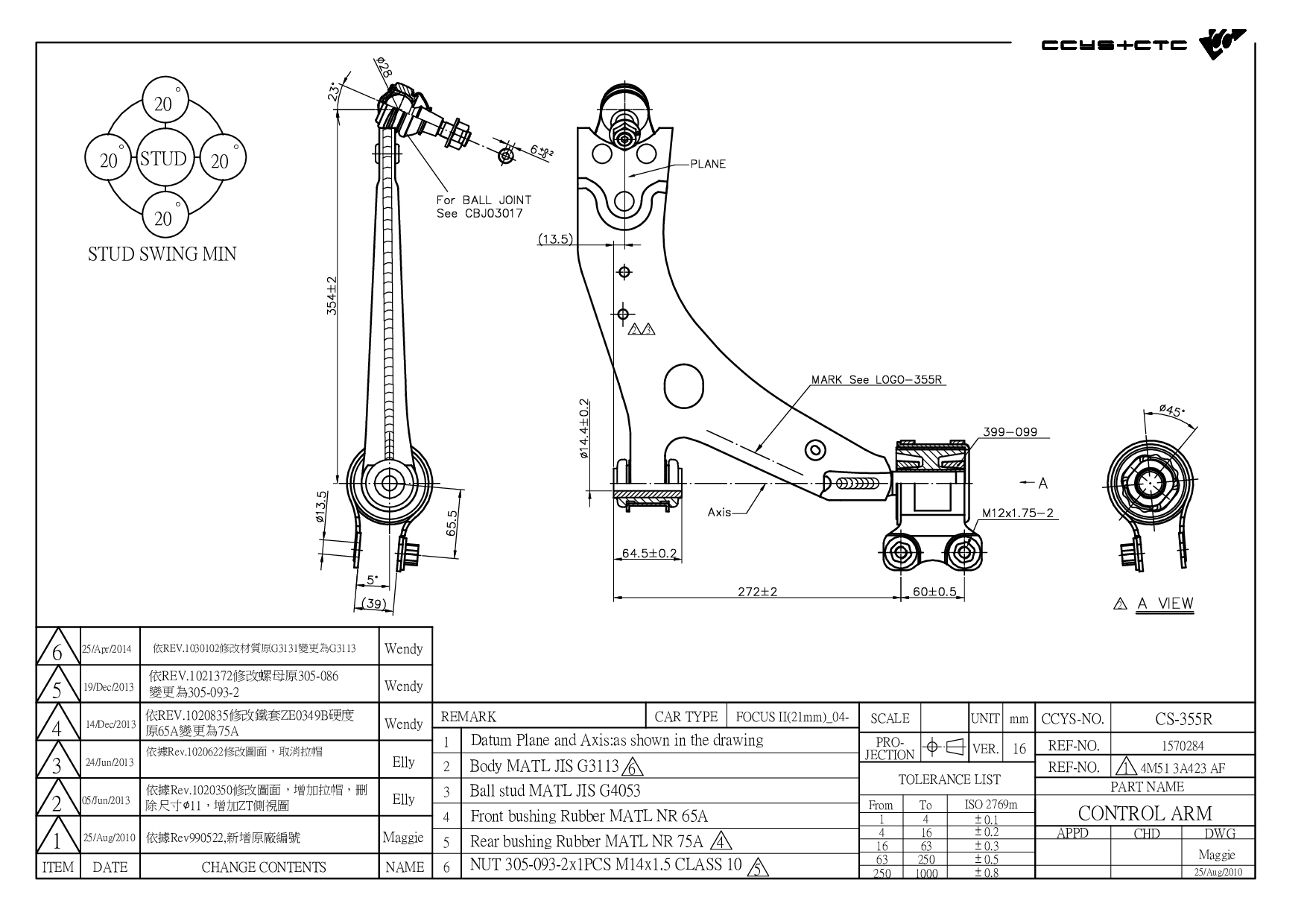

CS-355R
| Designation | Control Arm |
| Position | FRONT LOWER RH (D= 18mm) |
| OE No. | 1420795 / 1488110 / 1570284 / 4M51 3A423 AD / 4M51 3A423 AE / 4M51 3A423 AF |
| Length | 463 mm |
| Width | 383 mm |
| Height | 118 mm |
| Net Weight | 5.08 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH03020 | REAR LINK INNER/ OUTER | 6784590 6829045 93BB-5K653-AB |
|
 |
CBH03048 | REAR LINK | 1061668 1100983 1105524 1231455 1251941 1253734 13000384 13001121 30683067 3M51-5K653-AA 3M51-5K653-AB 3M51-5K653-AC 3M51-5K743-AC 98AG-5K743-AE 98AG-5K743-AF BBP3-28-500A BP4K-28-500A BP4K-28-500B BP4K-28-500C BP4K-28-500D BP4K-28-500E C236-28-500 C236-2 |
|
 |
CBH03060 | FRONT LOWER ARM REAR | 1502084 8V41-3A262-AB |
|
 |
CBH03061 | FRONT LOWER ARM INNER | 4M51-3063-AA |
|
 |
CBH03092 | FRONT LOWER ARM REAR | 1502084 8V41-3A262-AB |
|
 |
CBH17035 | FRONT LOWER ARM REAR | ||
 |
CBJ03015A | FRONT LOWER LH/ RH (B= 18 MM) | 1234382 1679384 3M51-3395-AA 3M51-3395-BB 3M51-3K209-AA ME3M5J-3395-AA |
|
 |
CBJ03017A | FRONT LOWER LH/ RH (B= 21 MM) | 1470387 1679388 30760279 30760280 31201180 31201181 31262037 31262039 3M513K209BA ME4M5J-3395-AA |
|
 |
CS-1722L | FRONT LOWER LH (D= 18MM) | 31277463 |
|
 |
CS-1722R | FRONT LOWER RH (D= 18MM) | 31277462 |
|
 |
CS-341 | REAR AXLE LH/ RH | 1061668 1100983 1105524 1223958 1231455 1253735 1388327 1500111 30666300 30683067 3M51-5K743-AC 3M51-5K743-AD 3N61-5K743-BB 8646064 8V41-5K743-AA 98AG-5K743-AF BBP3-28-500A BP4K-28-500A BP4K-28-500B BP4K-28-500C BP4K-28-500D BP4K-28-500E C236-28-500 C236- |
|
 |
CS-347 | REAR UPPER LH/ RH | 1061659 1061662 1073252 1100977 1113289 1136072 1223897 1231457 1253737 1317609 1329730 1484033 1503993 1517403 1524422 1752736 1M515500AA 1M515500AB 1M51-5500-AC 2512873 3093462 31201356 31212503 31277305 3M515500BA 74 85 104 224 85104224 8671921 8M51-55 |
|
 |
CS-349L | FRONT LOWER LH (D= 15MM) | 1234375 1254311 1303149 1305342 1309645 1328381 1328671 1332075 1348192 1355151 1362651 1477860 1570678 1570748 30714126 30714128 30714422 30730829 30736956 30748231 31212979 31277464 3M51-3A424-AB 3M51-3A424-AC 3M51-3A424-AD 3M51-3A424-AE 3M51-3A424-AF 3 |
|
 |
CS-349R | FRONT LOWER RH (D= 15MM) | 1234371 1254310 1305341 1309148 1309644 1328380 1328670 1332074 1348191 1355149 1362650 1362652 1477858 1477864 1570677 1570750 30714127 30714423 30730830 30748230 31212980 31277465 3M51-3A423-AB 3M51-3A423-AC 3M51-3A423-AD 3M51-3A423-AE 3M51-3A423-AF 3M5 |
|
 |
CS-355L | FRONT LOWER LH (D= 18MM) | 1420858 1488111 1570285 4M51 3A424 AD 4M51 3A424 AE 4M51 3A424 AF |
|
 |
CS-355R | FRONT LOWER RH (D= 18MM) | 1420795 1488110 1570284 4M51 3A423 AD 4M51 3A423 AE 4M51 3A423 AF |
|
 |
CSL03037 | REAR (A= 76MM) | 1223923 1231452 1253969 1304120 1310333 1335548 1469208 1734686 2408359 3M51 5C486 BE 3M515C486BC 3M515C486BD 3M515C486BF 3M5J-5C486-BF BP4K-28-170A BP4K-28-170C BP4K-28-170D BP4K-28-170E BP4K-28-170F BP4K-28-170G BP4K-28-170H |
|
 |
CSL03038 | FRONT (A= 306MM) | 1223792 1230909 1686594 1762149 1851900 31277652 31340273 3M513B438AA 3M513B438AB 8623576 AV61-3B438-AA AV61-3B438-BA B37F-34-170A BP4K-34-170 BP4K-34-170A BP4K-34-170B BP4K-34-170C BP4K-34-170D |
| Model (Year) |
|---|
|
C-MAX (DM2) FOCUS C-MAX (DM2) FOCUS II (DA_, HCP, DP) FOCUS II Convertible FOCUS II Saloon (DB_, FCH, DH) FOCUS II Turnier (DA_, FFS, DS) |
