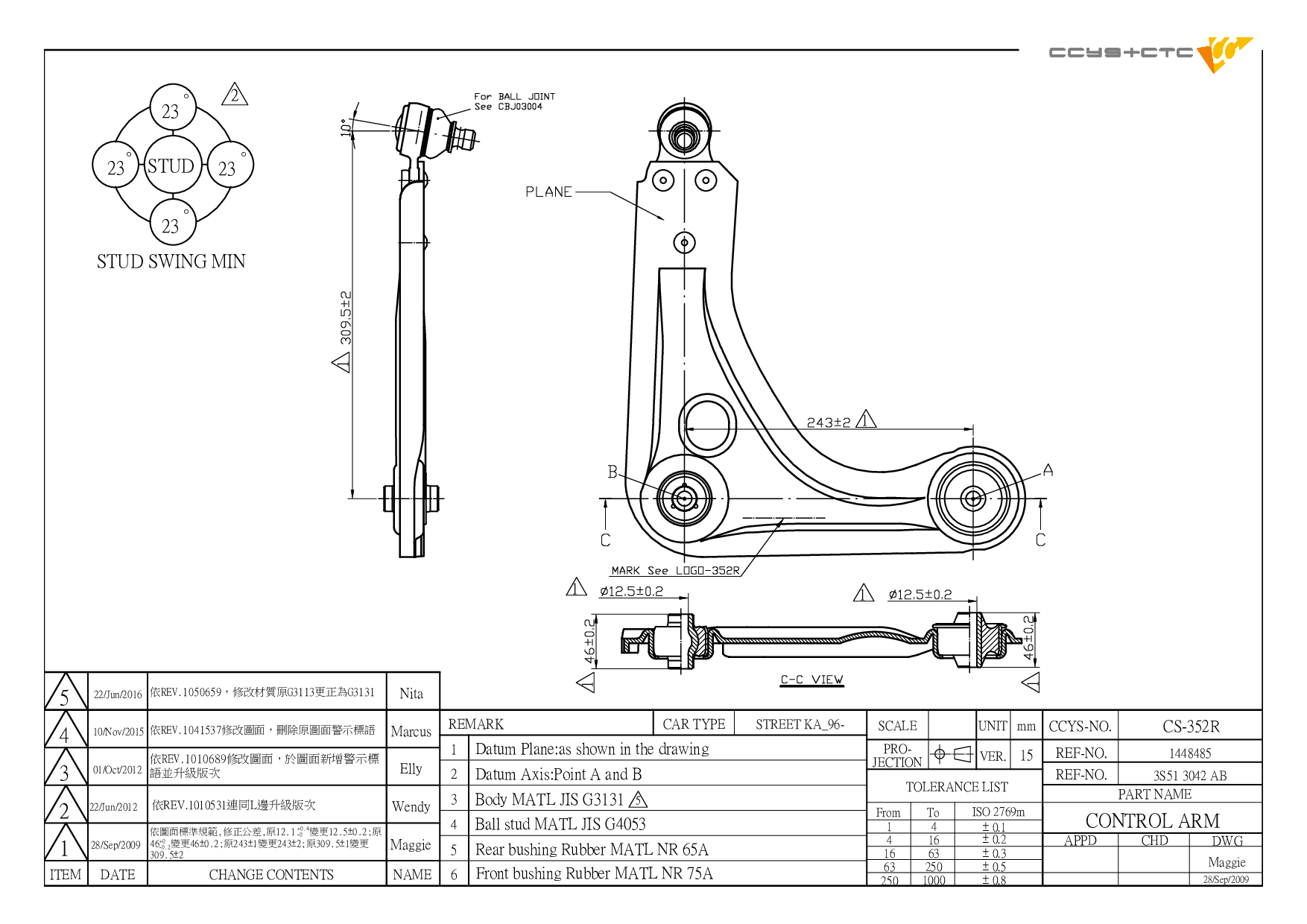

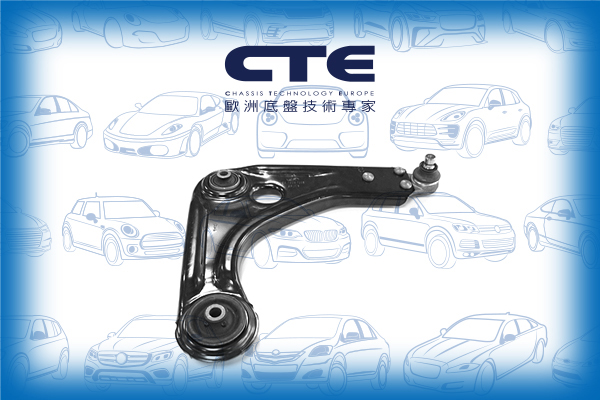

CS-352R
| Designation | Control Arm |
| Position | FRONT LOWER RH |
| OE No. | 1209244 / 1209245 / 1255371 / 1448485 / 3S51 3042 AB / 3S51-3042-AA / 3S51-3042-BA |
| Length | 336.3 mm |
| Width | 381.8 mm |
| Height | 77 mm |
| Net Weight | 2.84 kg |
KA (RB) without power steering
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH03021 | FRONT LOWER ARM REAR | 1035929 89FB-3A262-AC 91AB-3063-AA 91AB-3A262-AA |
|
 |
CBH03022 | FRONT LOWER ARM INNER | 1000445 1829508 89FB-3063-AD ME89FB-3063-AD |
|
 |
CBH03066 | REAR ARM INNER | 1011363 1016439 96FB-5K-653CA |
|
 |
CBH03070 | FRONT LOWER ARM INNER | ||
 |
CBJ03004A | FRONT LOWER LH/ RH | 1030025 1047797 1679398 94FB-3B376-AA 94FB-3B376-AB ME96FB-3395-AA |
|
 |
CRE03048 | D= 1/2"-20G, C= M14X1.5 | 1659374 4048739 6639188 6790700 89FB-3L555-BA 91FB-3L519-AA 92FB-3L519-AA XS5C-3L519-AA |
|
 |
CS-336L | FRONT LOWER LH (W/ POWER STEERING) | 1028443 1032101 1046455 1046459 1046502 1063986 1093986 1448622 1448622S1 97KB-3051-AB 97KB3051AC 97KB3051AD 97KB-3051-CC 97KB3051EB 97KB3051EC |
|
 |
CS-336R | FRONT LOWER RH (W/ POWER STEERING) | 1012404 1028438 1032099 1046444 1046447 1046501 1063985 1448621 1448621S1 97KB-3042-AB 97KB3042AC 97KB3042AD 97KB-3042-CC 97KB3042EB 97KB3042EC |
|
 |

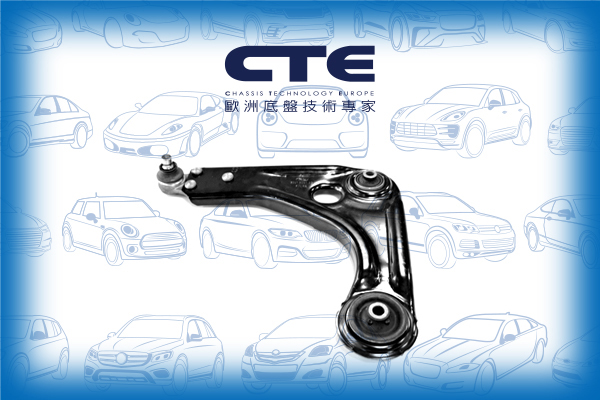

CS-352L | FRONT LOWER LH | 1209246 1255372 1448487 3S51 3051 AB 3S51-3051-AA 3S51-3051-BA |
|
 |
CS-352R | FRONT LOWER RH | 1209244 1209245 1255371 1448485 3S51 3042 AB 3S51-3042-AA 3S51-3042-BA |
|
 |
CSL11001 | FRONT (A= 238MM) | 1661237 96FB-3B-438AB |
| Model (Year) |
|---|
|
KA (RB_) STREET KA (RL2) |
