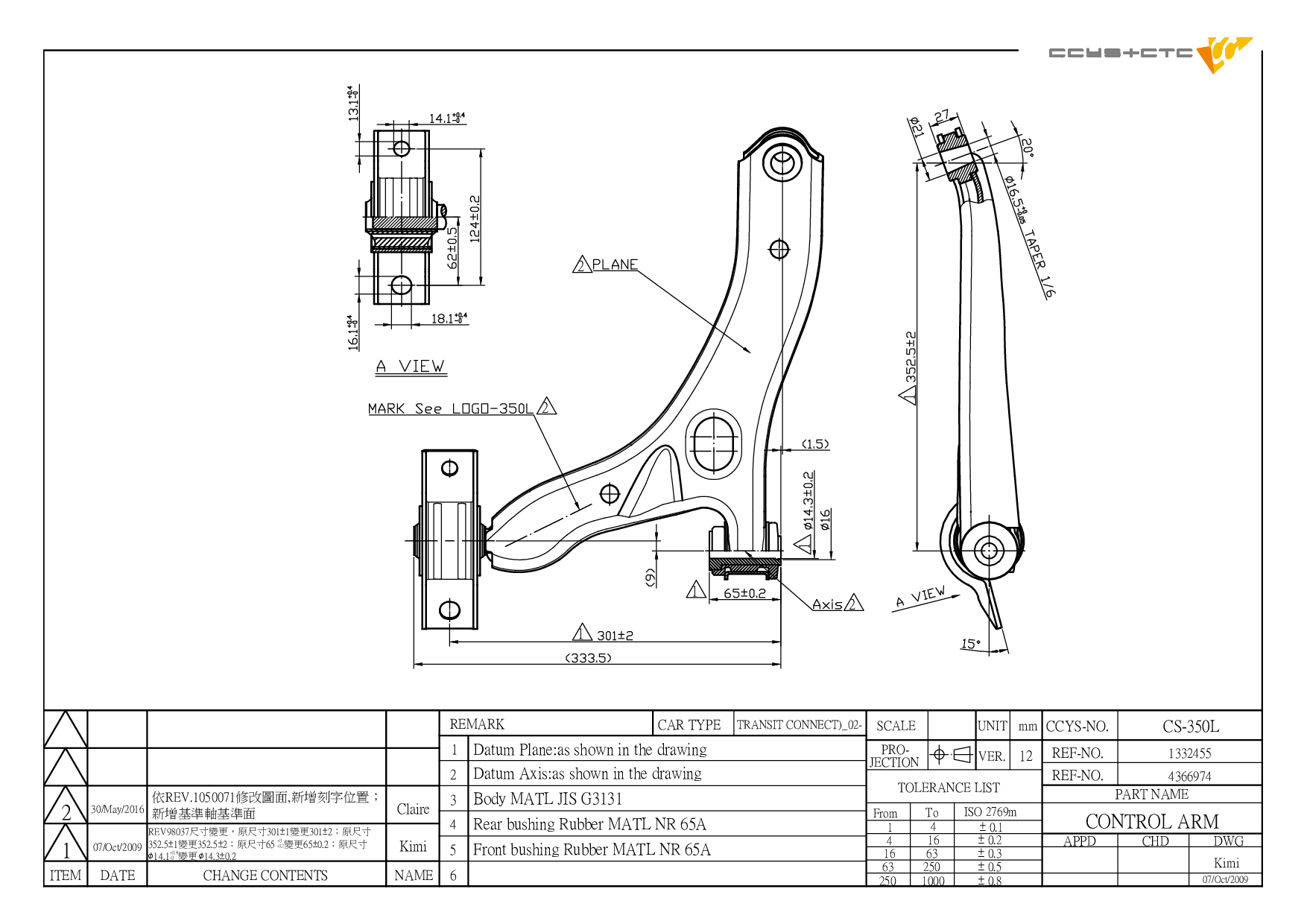

CS-350L
| Designation | Control Arm |
| Position | FRONT LOWER LH |
| OE No. | 1332455 / 1355050 / 2T14-3051-BF / 2T14-3051-BG / 2T14-3051-BH / 4366974 / 4371926 / 4T16-3051-AA / W12T1043051BG |
| Length | 456 mm |
| Width | 372 mm |
| Height | 79 mm |
| Net Weight | 5.1 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH03062 | FRONT LOWER ARM REAR | 1332454 1332455 1355048 1355050 2T14-3042-BF 2T14-3042-BG 2T14-3042-BH 2T14-3051-BF 2T14-3051-BG 2T14-3051-BH 4366973 4366974 4371925 4371926 4T16-3042-AA 4T16-3051-AA W12T1043042BG W12T1043051BG |
|
 |
CBH03063 | FRONT LOWER ARM INNER | 1332454 1332455 1355048 1355050 2T14-3042-BF 2T14-3042-BG 2T14-3042-BH 2T14-3051-BF 2T14-3051-BG 2T14-3051-BH 4366973 4366974 4371925 4371926 4T16-3042-AA 4T16-3051-AA W12T1043042BG W12T1043051BG |
|
 |
CS-350L | FRONT LOWER LH | 1332455 1355050 2T14-3051-BF 2T14-3051-BG 2T14-3051-BH 4366974 4371926 4T16-3051-AA W12T1043051BG |
|
 |
CS-350R | FRONT LOWER RH | 1332454 1355048 2T14-3042-BF 2T14-3042-BG 2T14-3042-BH 4366973 4371925 4T16-3042-AA W12T1043042BG |
|
 |
CSL03038 | FRONT (A= 306MM) | 1223792 1230909 1686594 1762149 1851900 31277652 31340273 3M513B438AA 3M513B438AB 8623576 AV61-3B438-AA AV61-3B438-BA B37F-34-170A BP4K-34-170 BP4K-34-170A BP4K-34-170B BP4K-34-170C BP4K-34-170D |
|
 |
CSL03053 | REAR (A= 133MM) | 1332463 2T14-5C486-AB 2T14-5C486-AC 2T14-5C486-AD 2T14-5C486-AE 2T14-5C486-AF 2T14-5C486-AG 4367076 4414780 4420546 4436609 4548398 |
| Model (Year) |
|---|
|
TRANSIT CONNECT (P65_, P70_, P80_) TRANSIT CONNECT MPV TRANSIT CONNECT V408 Box Body/MPV |
