Control Arm

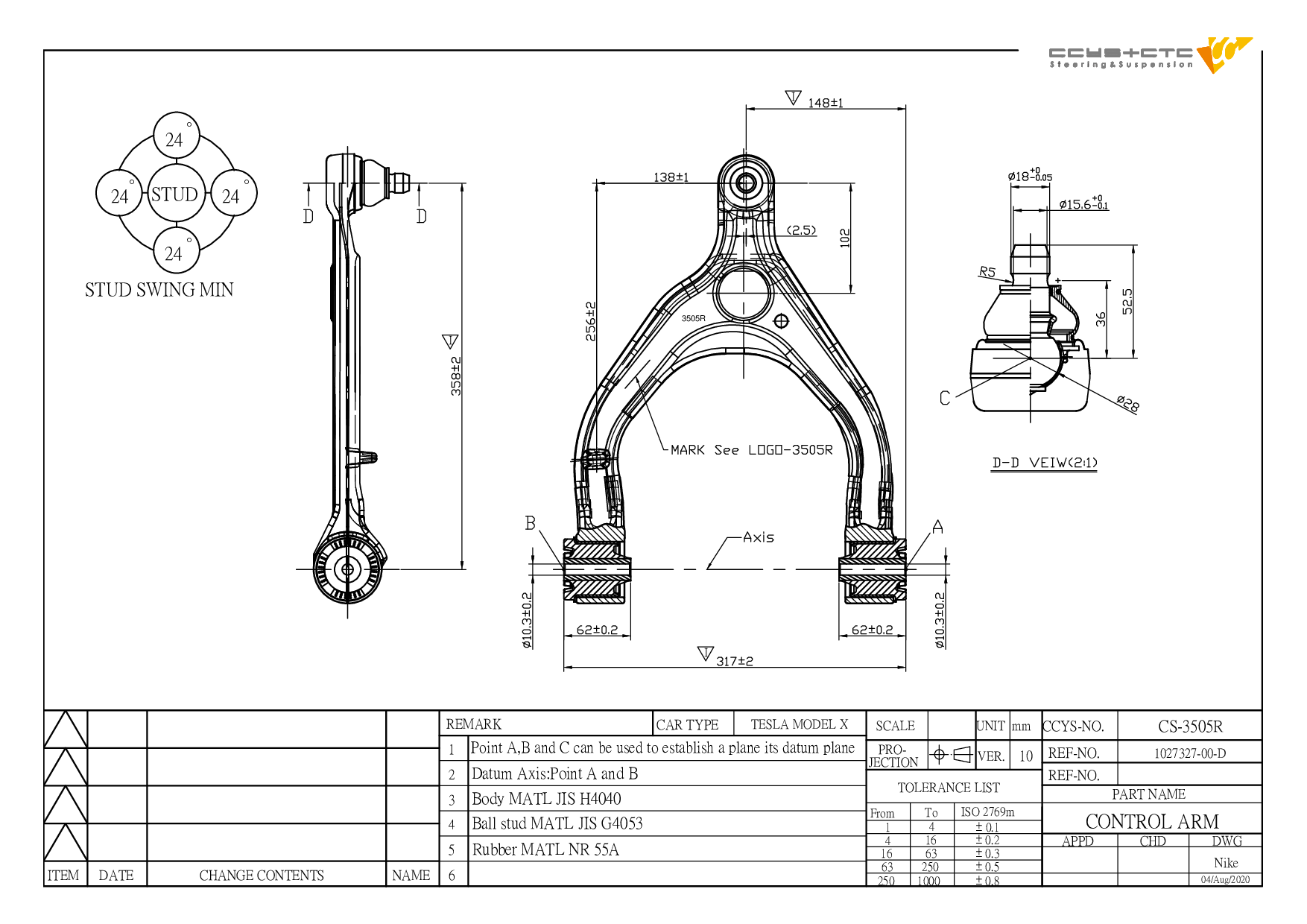

TESLA / MODEL X / Control Arm / Front Axle Right; Upper / CS-3505R

Technical Specification Matrix

CS-3505R 是 TESLA 專用的控制臂 (Front Axle Right; Upper)。本產品為 OEM 規格替代零件，適配原廠料號 1027327-00-D,1027327-00-E,1027327-00-F,1027327-99-D。

PARAMETER	METRIC / VALUE
Designation	Control Arm
Position	Front Axle Right; Upper
OE 替代料號 (Original Equipment Numbers)	1027327-00-D 1027327-00-E 1027327-00-F 1027327-99-D
Length	420 mm
Width	318 mm
Height	70 mm
Net Weight	2.6 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.
CBH35001	FRONT AXLE; UPPER	1043965-00-A 1043965-00-B 1043966-00-A 1043966-00-B 6006532-00-A 6006532-00-B 6008930-00-A 6008930-00-B
CBH35006	FRONT; FRONT AXLE	1041570-00-A 1041570-00-B 1041575-00-A 1041575-00-B 6006664-00-C 6007998-00-C
CBH35007	BEHIND THE AXLE; INNER; LOWER FRONT AXLE	1027351-00-C 1048951-00-A 1048951-00-B 6007997-00-D
COS35001	FRONT AXLE
CRE35001	FRONT AXLE LEFT; FRONT AXLE RIGHT	1070801-00-E 1070801-00-F 1070806-00-E
CS-3503L	LOWER; FRONT; FRONT AXLE LEFT	1041570-00-A 1041570-00-B 6007998-00-C
CS-3503R	LOWER; FRONT AXLE RIGHT; FRONT	1041575-00-A 1041575-00-B 6006664-00-C
CS-3504	FRONT AXLE; LOWER; BOTH SIDES; REAR	1027351-00-C 1027351-00-D 1027351-00-E 1048951-00-A 1048951-00-B 1048951-00-C 6007997-00-D
CS-3505L	FRONT AXLE LEFT; UPPER	1027322-00-D 1027322-00-E 1027322-00-F 1027322-99-D
CS-3505R	FRONT AXLE RIGHT; UPPER	1027327-00-D 1027327-00-E 1027327-00-F 1027327-99-D
CS-3512	REAR AXLE LEFT; FRONT; UPPER; REAR AXLE RIGHT	1021420-00-A 1021420-00-B 6006840-00-B
CS-3514	REAR; REAR AXLE LEFT; UPPER; REAR AXLE RIGHT	1021418-00-A 1021418-00-B 1021418-00-C 1027421-00-C 1027421-00-D 1027421-00-E SK600294
CSL35007	FRONT AXLE LEFT; FRONT AXLE RIGHT	1027391-00-B
CSL35008	REAR AXLE	1027491-00-A
CSL35010L	REAR AXLE LEFT	1044491-00-E 1044491-00-F 1288491-00-A
CSL35010R	REAR AXLE RIGHT	1044496-00-E 1044496-00-F 1288496-00-A
CSL35011	REAR AXLE LEFT; REAR AXLE RIGHT	1027441-00-A
CTE35002	FRONT AXLE LEFT; FRONT AXLE RIGHT	1027841-00-B
