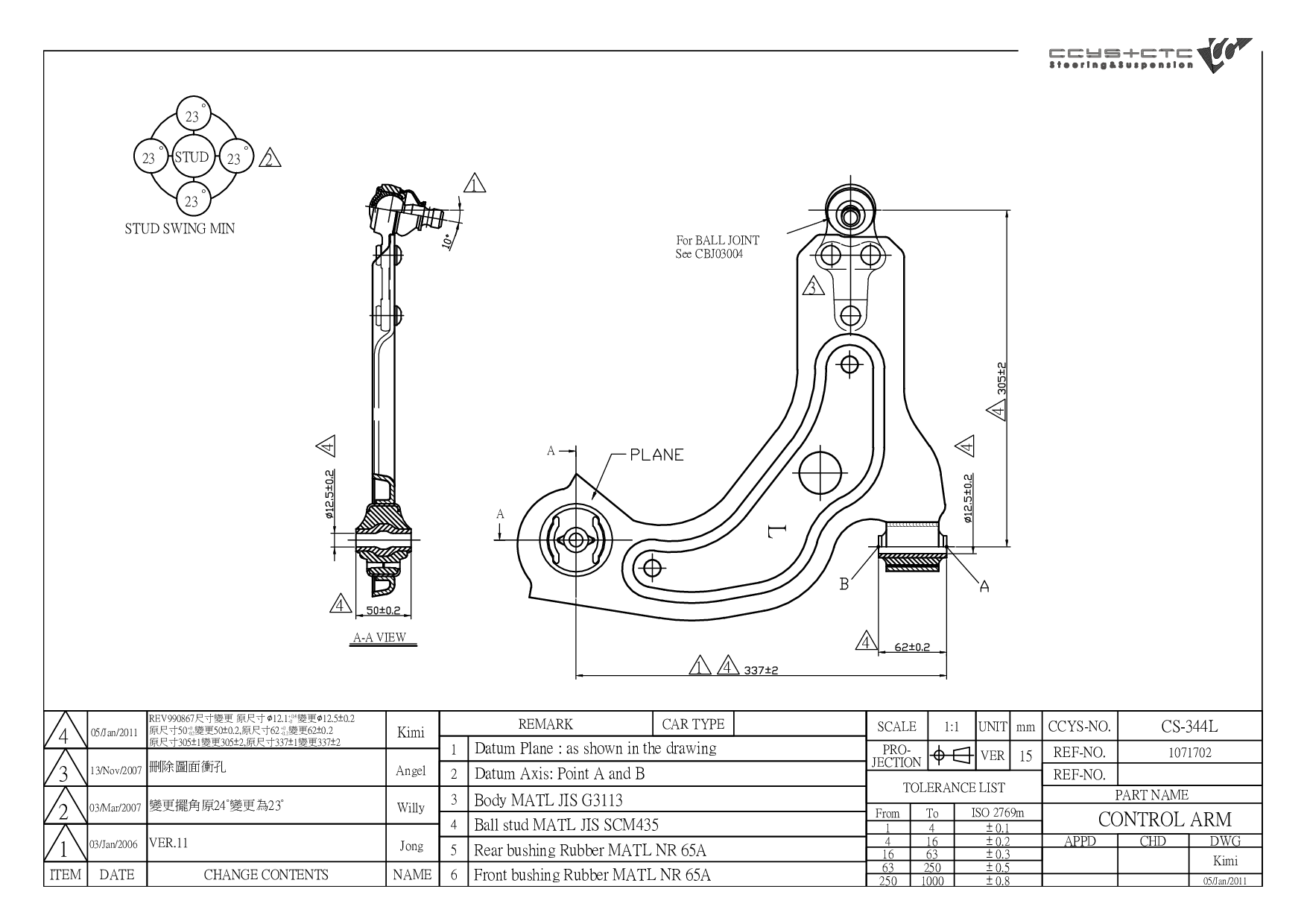

CS-344L
| Designation | Control Arm |
| Position | FRONT LOWER LH |
| OE No. | 1003584 / 1009594 / 1017014 / 1020221 / 1046072 / 1058326 / 1058332 / 1063246 / 1071702 / 1330237 / 4S61-3051-BA / 96FB-3051-AH / 98FB-3051-BC / 98FB-3051-BD |
| Length | 390 mm |
| Width | 396.5 mm |
| Height | 79.5 mm |
| Net Weight | 3.4 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH03030 | FRONT LOWER ARM REAR | 1004011 1014654 1063372 1E01-34153-A 96FB-3A262-AA 98FB-3A262-AA |
|
 |
CBH03031 | FRONT LOWER ARM INNER | 1010037 1055191 1E00-34-153 1E00-34-153A 96FB-3063-AA 96FB-3063-AB |
|
 |
CBH03066 | REAR ARM INNER | 1011363 1016439 96FB-5K-653CA |
|
 |
CBJ03004A | FRONT LOWER LH/ RH | 1030025 1047797 1679398 94FB-3B376-AA 94FB-3B376-AB ME96FB-3395-AA |
|
 |
CRE03049 | D= M14X2.0 , C= M14X1.5 | 1044014 1E0032240 96FB3L519BA |
|
 |
CS-328L | FRONT LOWER LH | 1003585 1009596 1015264 1021220 1045656 1052506 1058334 1063255 1072279 1330239 1710796 1E01-34-350 1E01-34-350A 1E01-34-350B 1E01-34-350C 1E01-34-350D 1E01-34-350E 1E01-34-350F 4S613051CA 96FB3051BF 96FB3051BG 98FB3051CC 98FB-3051-CD ME96FB3051CA |
|
 |
CS-328R | FRONT LOWER RH | 1003575 1009580 1015260 1021219 1045655 1052505 1056835 1063236 1071694 1330238 1710792 1E01-34-300 1E01-34-300A 1E01-34-300B 1E01-34-300C 1E01-34-300D 1E01-34-300E 1E01-34-300F 4S613042CA 96FB3042BF 96FB3042BG 98FB3042CC 98FB-3042-CD ME96FB3042CA |
|
 |
CS-344L | FRONT LOWER LH | 1003584 1009594 1017014 1020221 1046072 1058326 1058332 1063246 1071702 1330237 4S61-3051-BA 96FB-3051-AH 98FB-3051-BC 98FB-3051-BD |
|
 |
CS-344R | FRONT LOWER RH | 1003574 1009584 1017013 1020219 1046038 1058326 1063223 1063233 1071690 1330236 4S61-3042-BA 96FB-3042-AH 96FB-3042-AJ 98FB-3042-BB 98FB-3042-BC 98FB-3042-BD |
|
 |
CSL11001 | FRONT (A= 238MM) | 1661237 96FB-3B-438AB |
| Model (Year) |
|---|
|
COURIER Pickup |
