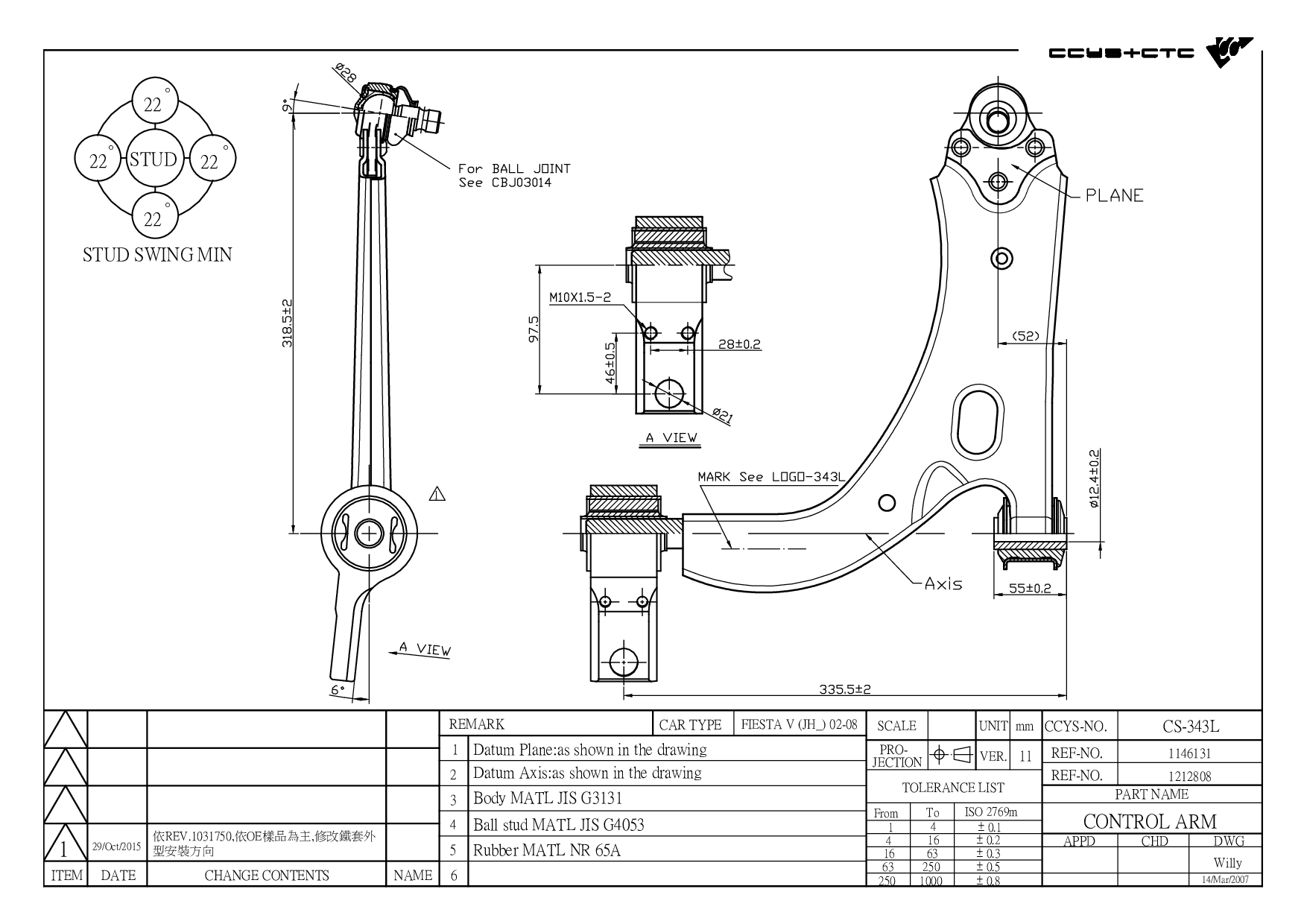

CS-343L
| Designation | Control Arm |
| Position | FRONT LOWER LH |
| OE No. | 1146131 / 1149933 / 1202214 / 1207448 / 1208512 / 1209077 / 1211757 / 1212808 / 1214682 / 1214912 / 1436095 / 1436170 / 1706971 / 2N11-3051-AE / 2N11-3051-AF / 2N11-3051-AG / 2N11-3051-AH / 2S61-3051-AD / 2S61-3051-AF / 2S61-3051-AH / 2S61-3051-AJ / 2S61-3051-AK / 2S61-3051-DA / DD32-34-350 / DD32-34-3 |
| Length | 368.5 mm |
| Width | 452.7 mm |
| Height | 282.7 mm |
| Net Weight | 4.46 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH03053 | FRONT LOWER ARM REAR | 1212807S2 1215649 1215650 1215930 1219819 1307830 1317221 1319420 |
|
 |
CBH03054 | FRONT LOWER ARM INNER | 1208084 1211117 1212807S1 1215176 1215648 1216000 1225687 1349278 DL3334470 |
|
 |
CBJ03014A | FRONT LOWER LH/ RH | 1679382 2S61-3395-AB ME2S6J-3395-AA |
|
 |
CS-343L | FRONT LOWER LH | 1146131 1149933 1202214 1207448 1208512 1209077 1211757 1212808 1214682 1214912 1436095 1436170 1706971 2N11-3051-AE 2N11-3051-AF 2N11-3051-AG 2N11-3051-AH 2S61-3051-AD 2S61-3051-AF 2S61-3051-AH 2S61-3051-AJ 2S61-3051-AK 2S61-3051-DA DD32-34-350 DD32-34-3 |
|
 |
CS-343R | FRONT LOWER RH | 1146130 1149932 1202213 1207447 1208511 1209076 1211756 1212807 1214681 1214911 1436097 1436169 1706970 2N11-3042-AE 2N11-3042-AF 2N11-3042-AG 2N11-3042-AH 2S61-3042-AD 2S61-3042-AF 2S61-3042-AH 2S61-3042-AJ 2S61-3042-AK 2S61-3042-DA DD32-34-300 DD32-34-3 |
| Model (Year) |
|---|
|
FIESTA Saloon FIESTA V (JH_, JD_) FIESTA V Van FUSION (JU_) |
| Model (Year) |
|---|
|
FIESTA Hatchback (WP, WQ) FIESTA Hatchback (WS) |
| Model (Year) |
|---|
|
2 (DY) | DEMIO |
