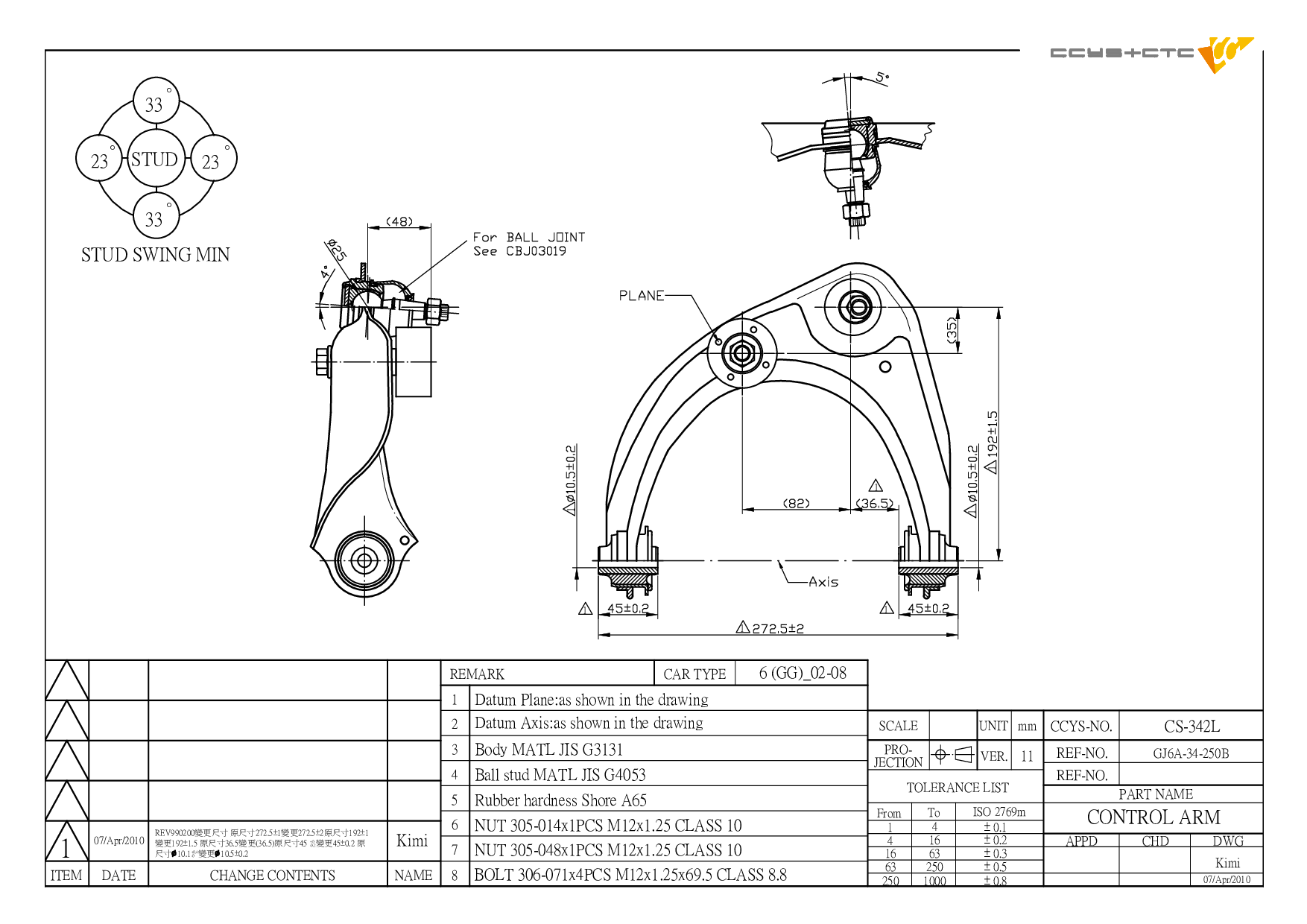

CS-342L
| Designation | Control Arm |
| Position | FRONT UPPER LH |
| OE No. | 6E5Z3084C / 6E5Z3084D / 6E5Z3085BA / 6E5Z3085C / 7E5Z3085L / AE5Z3085A / AE5Z-3085-B / AE5Z3085C / AE5Z3085D / GJ6A-34-250 / GJ6A-34-250A / GJ6A-34-250B / GK2A-34-250A / GK2A-34-250B / GK2A-34-250C / GN3A-34-250 / GN3A-34-250A / GP9A-34-250 / GP9A-34-250A / GP9A-34-250B / GP9A-34-250C / GR8C-34-2 |
| Length | 273 mm |
| Width | 253 mm |
| Height | 105 mm |
| Net Weight | 1.79 kg |
MAZDA 6 Hatchback Saloon (GG) production from 2005 to 2006
FORD FUSION (JU_) construction year from 08.2005 to 07.2012 Saloon (JU_) year to 08.2006 07.2012
MERCURY MILAN year from 02.2009 to 08.2006
FORD USA FUSION 2.3 from 02.2009 to 08.2006
FORD FUSION (JU_) construction year from 08.2005 to 07.2012 Saloon (JU_) year to 08.2006 07.2012
MERCURY MILAN year from 02.2009 to 08.2006
FORD USA FUSION 2.3 from 02.2009 to 08.2006
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH03053 | FRONT LOWER ARM REAR | 1212807S2 1215649 1215650 1215930 1219819 1307830 1317221 1319420 |
|
 |
CBH03054 | FRONT LOWER ARM INNER | 1208084 1211117 1212807S1 1215176 1215648 1216000 1225687 1349278 DL3334470 |
|
 |
CBJ03014A | FRONT LOWER LH/ RH | 1679382 2S61-3395-AB ME2S6J-3395-AA |
|
 |
CRE03045 | D= M14X1.5 , C= M14X1.5 | 2S6C-3280-KA 2S6C-3280-KB 4342539 4472940 DE90-32-240 |
|
 |
CS-342L | FRONT UPPER LH | 6E5Z3084C 6E5Z3084D 6E5Z3085BA 6E5Z3085C 7E5Z3085L AE5Z3085A AE5Z-3085-B AE5Z3085C AE5Z3085D GJ6A-34-250 GJ6A-34-250A GJ6A-34-250B GK2A-34-250A GK2A-34-250B GK2A-34-250C GN3A-34-250 GN3A-34-250A GP9A-34-250 GP9A-34-250A GP9A-34-250B GP9A-34-250C GR8C-34-2 |
|
 |
CS-342R | FRONT UPPER RH | 6E5Z3084BA 7E5Z3084R AE5Z3084A AE5Z-3084-B AE5Z3084C AE5Z3084D GJ6A-34-200 GJ6A-34-200A GJ6A-34-200B GK2A-34-200C GN3A-34-200 GN3A-34-200A GP9A-34-200 GP9A-34-200A GP9A-34-200B GP9A-34-200C GR8C-34-200 GV2W-34-200 |
|
 |
CS-343L | FRONT LOWER LH | 1146131 1149933 1202214 1207448 1208512 1209077 1211757 1212808 1214682 1214912 1436095 1436170 1706971 2N11-3051-AE 2N11-3051-AF 2N11-3051-AG 2N11-3051-AH 2S61-3051-AD 2S61-3051-AF 2S61-3051-AH 2S61-3051-AJ 2S61-3051-AK 2S61-3051-DA DD32-34-350 DD32-34-3 |
|
 |
CS-343R | FRONT LOWER RH | 1146130 1149932 1202213 1207447 1208511 1209076 1211756 1212807 1214681 1214911 1436097 1436169 1706970 2N11-3042-AE 2N11-3042-AF 2N11-3042-AG 2N11-3042-AH 2S61-3042-AD 2S61-3042-AF 2S61-3042-AH 2S61-3042-AJ 2S61-3042-AK 2S61-3042-DA DD32-34-300 DD32-34-3 |
|
 |
CSL03046L | FRONT LH (A= 155MM) | 3M8Z-5K-483L |
|
 |
CSL03046R | FRONT RH (A= 155MM) | 3M8Z-5K-483R |
|
 |
CSL03050 | FRONT (A= 283MM) | 1146150 1469212 1761200 2S61-3B438-AC 2S61-3B438-AD 2S61-3B438-AE DD32-34-170 DD32-34-170A DD32-34-170B |
| Model (Year) |
|---|
|
FUSION (JU_) FUSION Saloon |
| Model (Year) |
|---|
|
FUSION |
| Model (Year) |
|---|
|
MKZ |
| Model (Year) |
|---|
|
6 Hatchback (GG) | ATENZA 6 Saloon (GG) | ATENZA 6 Station Wagon (GY) | ATENZA |
| Model (Year) |
|---|
|
MILAN Saloon |
