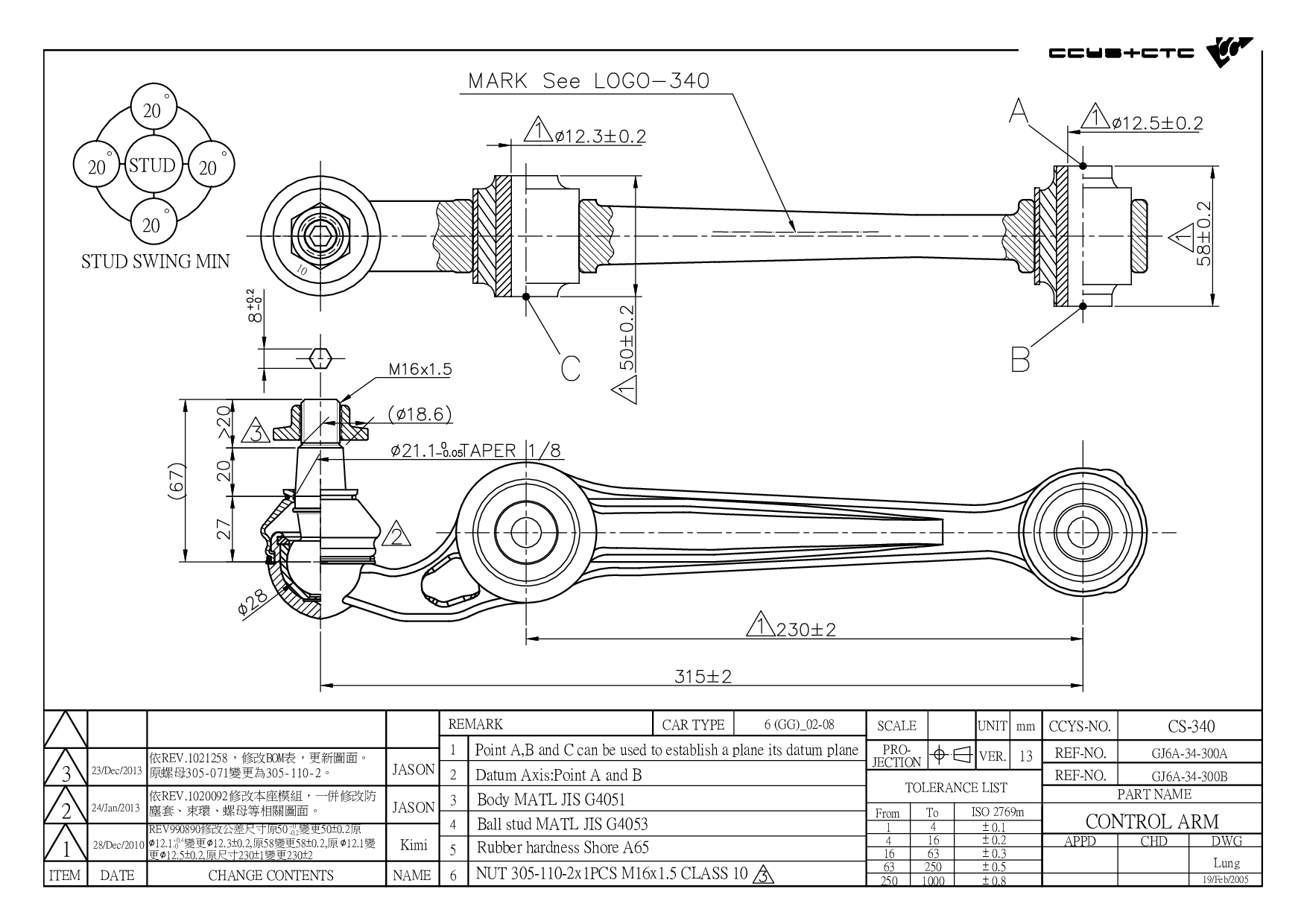

CS-340
| Designation | Control Arm |
| Position | FRONT LOWER LH/ RH |
| OE No. | G26A-28-300 / G26A-28-300A / GJ6A-28-300A / GJ6A-28-300B / GJ6A-34-300 / GJ6A-34-300A / GJ6A-34-300B / GJ6A-34-300C / GJ6A-34-300D / GJ6A-34-300E / GR1A-34-300 / GR1A-34-300A |
| Length | 368 mm |
| Width | 92 mm |
| Height | 55 mm |
| Net Weight | 2.28 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH03045 | FRONT LOWER ARM INNER | GJ6A-34-460 GJ6A-34-460A GJ6A-34-460B GR1A-34-460 |
|
 |

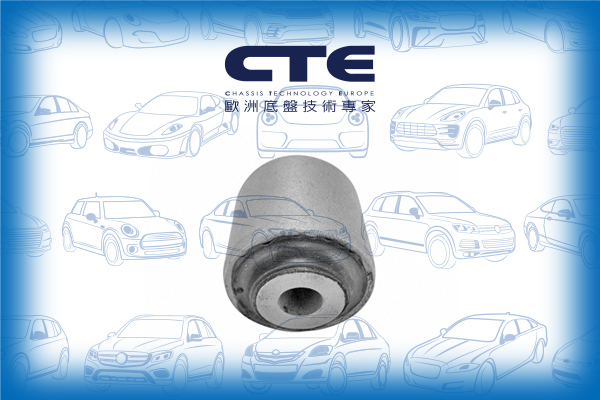

CBH03046 | FRONT LOWER ARM OUTER | GJ6A-34-710 GJ6A-34-710A GJ6A37710A |
|
 |

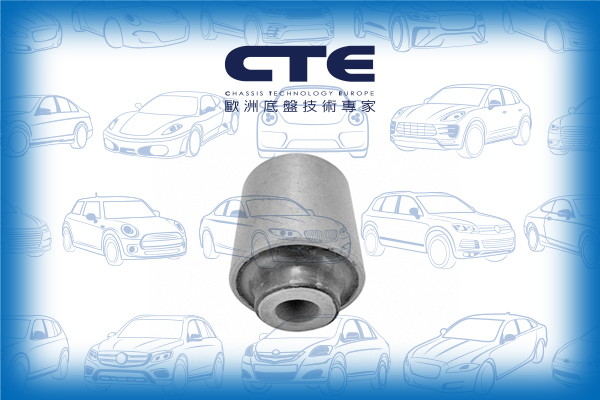

CBH03047 | FRONT LOWER ARM INNER | GJ6A-34-470A GJ6A-34-470B GJ6A-34-710B |
|
 |
CBH03051 | FRONT UPPER ARM INNER | GJ6A-34-200A GJ6A-34-200B GJ6A-34-250A GJ6A-34-250B GP9A-34-200 GP9A-34-200A GP9A-34-200B GP9A-34-200C GP9A-34-250 GP9A-34-250A GP9A-34-250B GP9A-34-250C GV2W-34-200 GV2W-34-250 |
|
 |
CBH03052 | FRONT UPPER ARM (REPAIR KIT) | GJ6A-34-200A GJ6A-34-200B GJ6A-34-250A GJ6A-34-250B GP9A-34-200 GP9A-34-200A GP9A-34-200B GP9A-34-200C GP9A-34-250 GP9A-34-250A GP9A-34-250B GP9A-34-250C GV2W-34-200 GV2W-34-250 |
|
 |

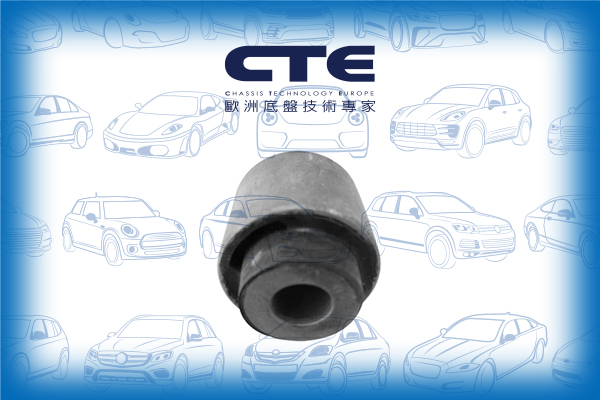

CBH03057 | REAR ARM INNER/ OUTER | G26A-28-450 GJ6A-28-450 GJ6A-28-C10 GP9A-28-450 HJ6A-28-450 |
|
 |
CBJ03019 | FRONT UPPER LH/RH | GG3P-34-200 GG3P-34-200A GG3P-34-200B GG3P-34-250A GG3P-34-250B GJ6A-34-200A GJ6A-34-200B GJ6A-34-250A GJ6A-34-250B GP9A-34-200 GP9A-34-200A GP9A-34-200B GP9A-34-200C GP9A-34-250 GP9A-34-250A GP9A-34-250B GP9A-34-250C GV2W-34-200 GV2W-34-250 |
|
 |
COS03005 | FRONT | ||
 |
CS-339L | FRONT LOWER LH | BE5Z-3079-A GJ6A-34-J50 GJ6A-34-J50A GJ6A-34-J50B GJ6A-34-J50C GJ6A-34-J50D GR1A-34-J50 GR1B-34-J50 |
|
 |
CS-339R | FRONT LOWER RH | BE5Z-3078-B GJ6A-34-J00 GJ6A-34-J00A GJ6A-34-J00B GJ6A-34-J00C GJ6A-34-J00D GR1A-34-J00 GR1B-34-J00 |
|
 |
CS-340 | FRONT LOWER LH/ RH | G26A-28-300 G26A-28-300A GJ6A-28-300A GJ6A-28-300B GJ6A-34-300 GJ6A-34-300A GJ6A-34-300B GJ6A-34-300C GJ6A-34-300D GJ6A-34-300E GR1A-34-300 GR1A-34-300A |
|
 |
CS-342L | FRONT UPPER LH | 6E5Z3084C 6E5Z3084D 6E5Z3085BA 6E5Z3085C 7E5Z3085L AE5Z3085A AE5Z-3085-B AE5Z3085C AE5Z3085D GJ6A-34-250 GJ6A-34-250A GJ6A-34-250B GK2A-34-250A GK2A-34-250B GK2A-34-250C GN3A-34-250 GN3A-34-250A GP9A-34-250 GP9A-34-250A GP9A-34-250B GP9A-34-250C GR8C-34-2 |
|
 |
CS-342R | FRONT UPPER RH | 6E5Z3084BA 7E5Z3084R AE5Z3084A AE5Z-3084-B AE5Z3084C AE5Z3084D GJ6A-34-200 GJ6A-34-200A GJ6A-34-200B GK2A-34-200C GN3A-34-200 GN3A-34-200A GP9A-34-200 GP9A-34-200A GP9A-34-200B GP9A-34-200C GR8C-34-200 GV2W-34-200 |
|
 |
CS-348 | REAR UPPER LH/ RH | G26A-28-C10 GJ6A18C10A GJ6A28C10A GP9A-28-C10 |
|
 |
CSL03034L | FRONT LH (A= 155MM) | GJ6A-34-170A GK2A-34-170 GS1D-34-170 |
|
 |
CSL03034R | FRONT RH (A= 155MM) | GJ6A-34-150A GK2A-34-150A GS1D-34-150 |
|
 |
CSL03039 | REAR (A= 78MM) | GJ6A-28-170 GJ6A-28-170A GJ6A-28-170B GJ6A-30-170B |
|
 |
CTE03008L | FRONT AXLE LH (C= M14X1.5) | AE5Z-3A130-B G26A-32-290 GJ6A-32-290 GJ6E-32-290 GJ6E-32-290A |
|
 |
CTE03008R | FRONT AXLE RH (C= M14X1.5) | AE5Z-3A130-A G26A-32-280 GJ6A-32-280 GJ6E-32-280 GJ6E-32-280A |
| Model (Year) |
|---|
|
6 Hatchback (GG) | ATENZA 6 Saloon (GG) | ATENZA 6 Station Wagon (GY) | ATENZA |
