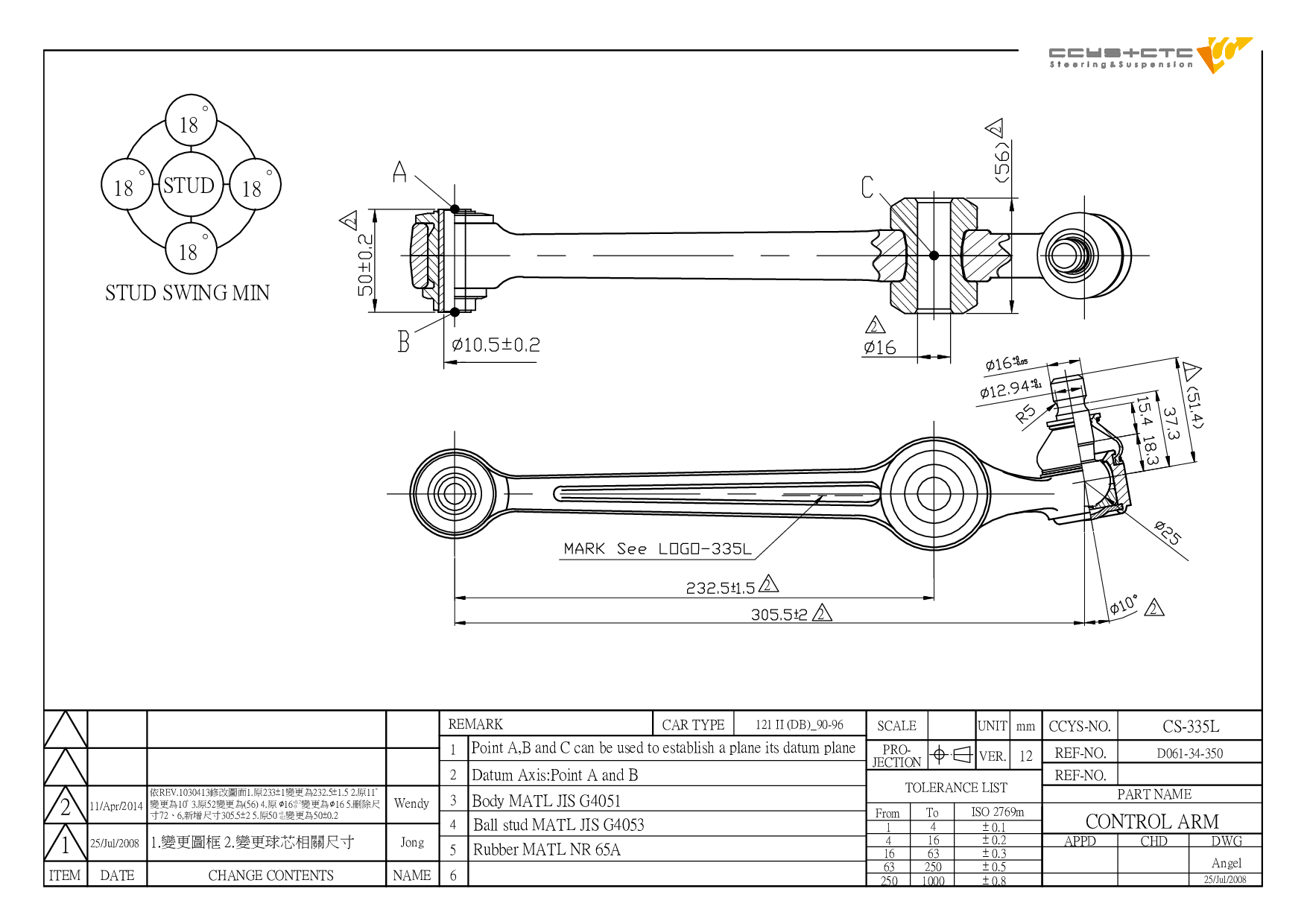

CS-335L
| Designation | Control Arm |
| Position | FRONT LOWER LH |
| OE No. | D061-34-350 |
| Length | 349.5 mm |
| Width | 50 mm |
| Height | 87.5 mm |
| Net Weight | 1.5 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH03008 | FRONT LOWER ARM OUTER | D031-34-310A D031-34-320A D061-34-300 D061-34-350 |
|
 |
CBH03040 | FRONT LOWER ARM INNER | D031-34-310A D031-34-320A D061-34-300 D061-34-350 |
|
 |
CS-335L | FRONT LOWER LH | D061-34-350 |
|
 |
CS-335R | FRONT LOWER RH | D061-34-300 |
|
 |
CTE03007 | FRONT AXLE LH/ RH (C= M12X1.25) | 8AB2-32-280 B455-32-280 |
| Model (Year) |
|---|
|
121 II (DB) | REVUE |
