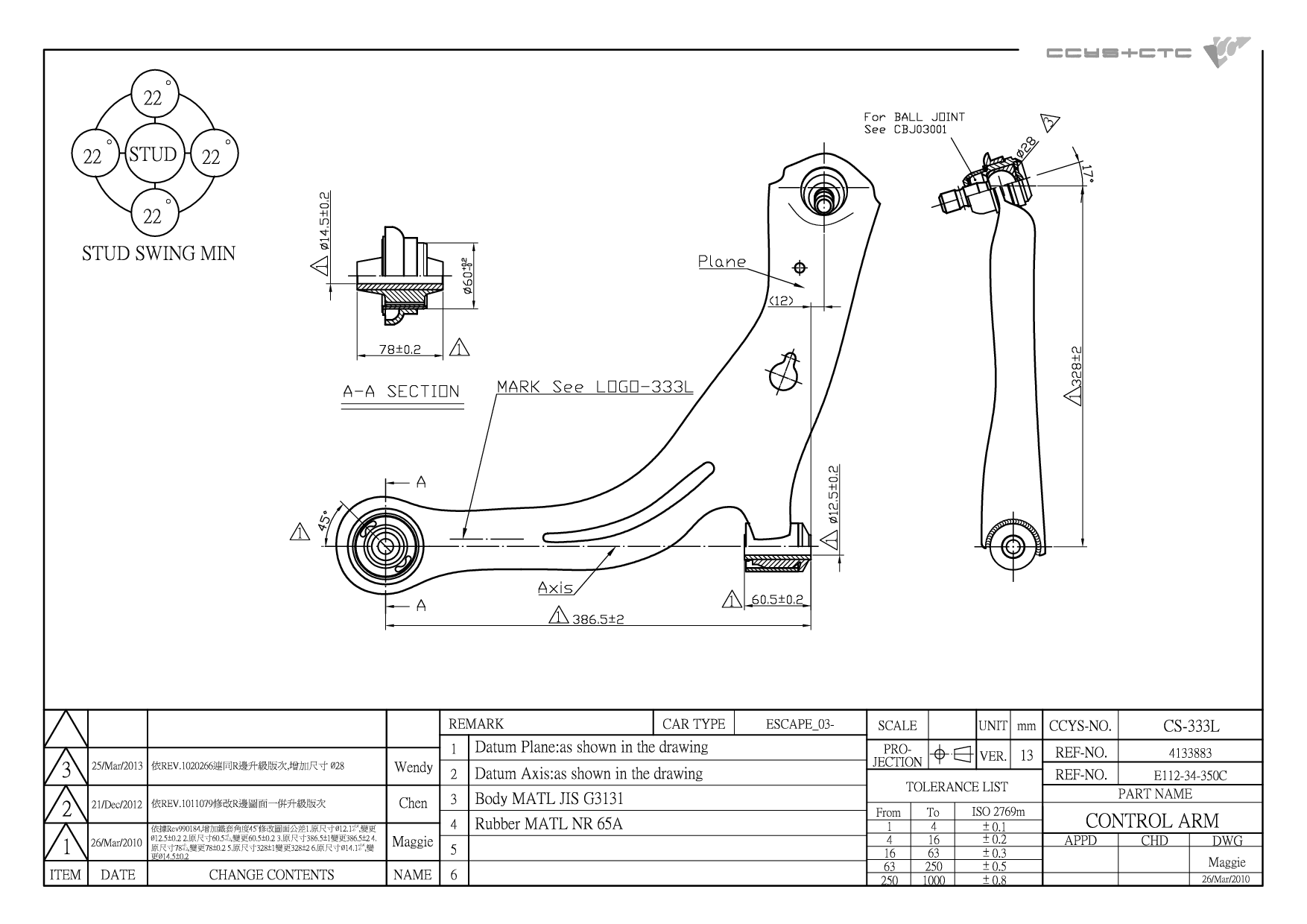

CS-333L
| Designation | Control Arm |
| Position | FRONT LOWER LH |
| OE No. | 2L8Z-3079A-A / 3L84-3A424-AC / 4133883 / 4165774 / 4484604 / 4484853 / 4511510 / 4631878 / 4633627 / 4763905 / 4974677 / 4L84-3A424-AA / 4L84-3A424-AB / 6L8Z-3079-AA / 8L84-3A424-AA / E112-34-350C / EC01-34-350E / EC01-34-350F / EC01-34-350G / EC01-34-350H / EC01-34-350J / EC01-34-350K / EC01-34-35 |
| Length | 494.3 mm |
| Width | 400.5 mm |
| Height | 96.6 mm |
| Net Weight | 4.63 kg |
MAVERICK Production date from 200312 to 200605 or 200701,construction year to 06.2008
MERCURY MARINER Construction year from 05.2006 to 06.2008
FORD USA ESCAPE 2.3 Construction year to 06.2008 ,ESCAPE 3.0 Construction year fromm 07.2004 to 05.2006
MERCURY MARINER Construction year from 05.2006 to 06.2008
FORD USA ESCAPE 2.3 Construction year to 06.2008 ,ESCAPE 3.0 Construction year fromm 07.2004 to 05.2006
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH03038 | FRONT LOWER ARM REAR | 4133882 4133883 E112-34-300C E112-34-350C EC01-34-300J EC01-34-300N EC01-34-350J EC01-34-350N |
|
 |
CBH03039 | FRONT LOWER ARM INNER | 4133882 4133883 E112-34-300C E112-34-350C EC01-34-300J EC01-34-300N EC01-34-350J EC01-34-350N |
|
 |
CS-333L | FRONT LOWER LH | 2L8Z-3079A-A 3L84-3A424-AC 4133883 4165774 4484604 4484853 4511510 4631878 4633627 4763905 4974677 4L84-3A424-AA 4L84-3A424-AB 6L8Z-3079-AA 8L84-3A424-AA E112-34-350C EC01-34-350E EC01-34-350F EC01-34-350G EC01-34-350H EC01-34-350J EC01-34-350K EC01-34-35 |
|
 |
CS-333R | FRONT LOWER RH | 2L8Z-3078A-A 4133882 4165773 4484852 4511509 4631871 4633628 4763903 4974675 4L84-3A423-AA 4L84-3A423-AB 8L84-3A423-AA E112-34-300C EC01-34-300E EC01-34-300F EC01-34-300G EC01-34-300H EC01-34-300J EC01-34-300K EC01-34-300L EC01-34-300M EC01-34-300N EF91-3 |
| Model (Year) |
|---|
|
MAVERICK | ESCAPE |
| Model (Year) |
|---|
|
ESCAPE |
| Model (Year) |
|---|
|
TRIBUTE (EP) |
| Model (Year) |
|---|
|
MARINER |
