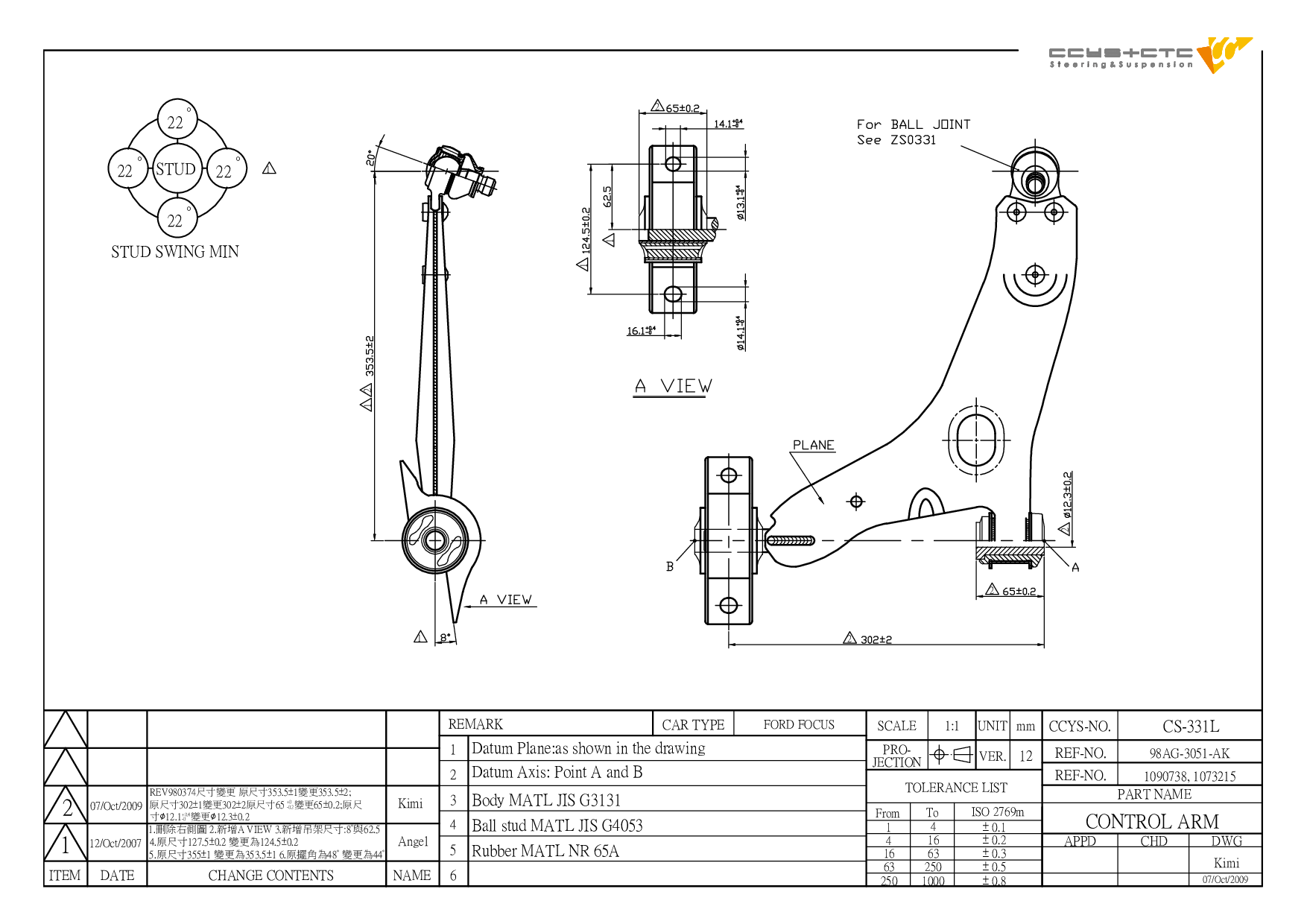

CS-331L
| Designation | Control Arm |
| Position | FRONT LOWER LH |
| OE No. | 1073215 / 1090738 / 1138161 / 1148932 / 1207974 / 1212810 / 1344968 / 2M513051BA / 2M513051BB / 2M513051BC / 2M513051BD / 2M513051BE / 98AG3051AJ / 98AG-3051-AK |
| Length | 365.5 mm |
| Width | 455.6 mm |
| Height | 91.4 mm |
| Net Weight | 3.73 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH03020 | REAR LINK INNER/ OUTER | 6784590 6829045 93BB-5K653-AB |
|
 |
CBH03034 | FRONT LOWER ARM INNER | 1061570 98AG-3063-AE |
|
 |
CBH03035 | FRONT LOWER ARM REAR | 1067918 2M51-3A262-AA 2M51-3A262-AB 98AG-3A262-AG 98AG-3A262-AH |
|
 |
CBJ03012 | FRONT LOWER LH/ RH | 1679401 96FB3395AB 98AG-3042-ZZ 98AG-3051-ZZ 98AG-3395-AE ME98AG-3395-AA |
|
 |
CBJ03012A | FRONT LOWER LH/ RH | 1679401 96FB3395AB 98AG-3042-ZZ 98AG-3051-ZZ 98AG-3395-AE ME98AG-3395-AA |
|
 |
CS-331L | FRONT LOWER LH | 1073215 1090738 1138161 1148932 1207974 1212810 1344968 2M513051BA 2M513051BB 2M513051BC 2M513051BD 2M513051BE 98AG3051AJ 98AG-3051-AK |
|
 |
CS-331R | FRONT LOWER RH | 1073214 1090730 1138160 1148931 1207973 1212809 1344966 2M513042BA 2M513042BB 2M513042BC 2M513042BD 2M513042BE 98AG3042AJ 98AG-3042-AK |
|
 |
CS-347 | REAR UPPER LH/ RH | 1061659 1061662 1073252 1100977 1113289 1136072 1223897 1231457 1253737 1317609 1329730 1484033 1503993 1517403 1524422 1752736 1M515500AA 1M515500AB 1M51-5500-AC 2512873 3093462 31201356 31212503 31277305 3M515500BA 74 85 104 224 85104224 8671921 8M51-55 |
|
 |
CSL03054 | REAR | 1061702 1061703 1136725 1203093 1487402 2M51-5E494-AA 2M51-5E494-AB 4056A052 98AG-5495-AB |
| Model (Year) |
|---|
|
FOCUS I (DAW, DBW) FOCUS I Estate Van (DNW) FOCUS I Saloon (DFW) FOCUS I Turnier (DNW) |
| Model (Year) |
|---|
|
FOCUS Hatchback (LR) FOCUS Saloon (LR) |
