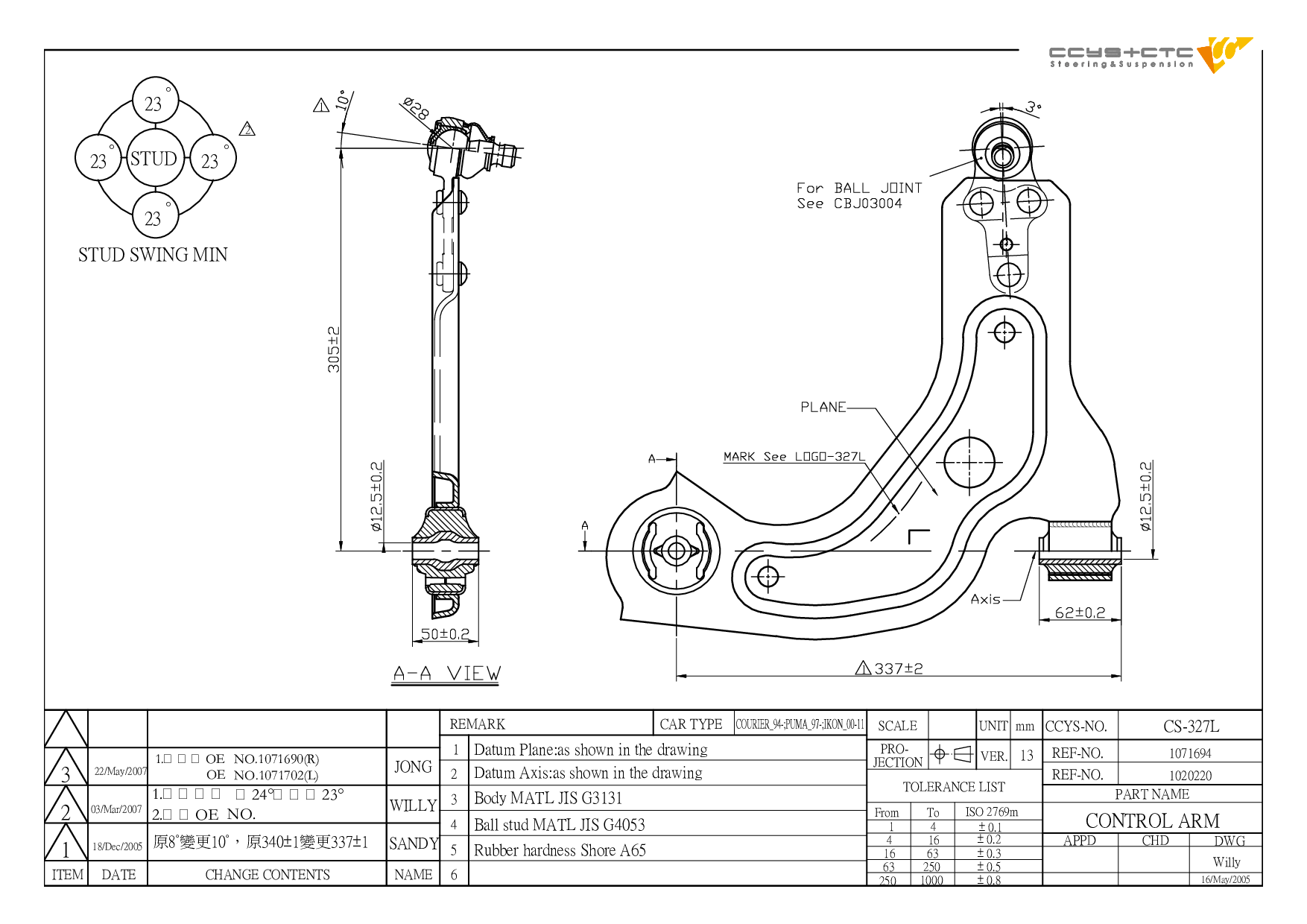

CS-327L
| Designation | Control Arm |
| Position | FRONT LOWER LH |
| OE No. | 1 009 598 / 1 015 265 / 1 046 073 / 1 058 331 / 1 063 248 / 1 710 795 / 1020220 / 1046279 / 1071701 / 1071701S1 / 1330235 / 1E00-34-350 / 1E00-34-350A / 1E00-34-350B / 1E00-34-350C / 1E00-34-350D / 1E00-34-350E / 1E00-34-350F / 1E00-34-350G / 4S61-3051-AA / 96FB-3051-CA / 96FB-3051-CB / 96FB-3051-C |
| Length | 390 mm |
| Width | 379.6 mm |
| Height | 78.4 mm |
| Net Weight | 3.4 kg |
For vehicle without power steering
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH03066 | REAR ARM INNER | 1011363 1016439 96FB-5K-653CA |
|
 |
CBJ03004A | FRONT LOWER LH/ RH | 1030025 1047797 1679398 94FB-3B376-AA 94FB-3B376-AB ME96FB-3395-AA |
|
 |
CRE03049 | D= M14X2.0 , C= M14X1.5 | 1044014 1E0032240 96FB3L519BA |
|
 |
CS-327L | FRONT LOWER LH | 1 009 598 1 015 265 1 046 073 1 058 331 1 063 248 1 710 795 1020220 1046279 1071701 1071701S1 1330235 1E00-34-350 1E00-34-350A 1E00-34-350B 1E00-34-350C 1E00-34-350D 1E00-34-350E 1E00-34-350F 1E00-34-350G 4S61-3051-AA 96FB-3051-CA 96FB-3051-CB 96FB-3051-C |
|
 |
CS-327R | FRONT LOWER RH | 1 009 582 1 015 263 1 046 039 1 058 325 1 063 226 1 710 791 1020214 1046278 1071683 1071683S1 1330219 1E00-34-300 1E00-34-300A 1E00-34-300B 1E00-34-300C 1E00-34-300D 1E00-34-300E 1E00-34-300F 4S61-3042-AA 96FB-3042-CA 96FB-3042-CB 96FB-3042-CC 96FB-3042-C |
|
 |
CS-328L | FRONT LOWER LH | 1003585 1009596 1015264 1021220 1045656 1052506 1058334 1063255 1072279 1330239 1710796 1E01-34-350 1E01-34-350A 1E01-34-350B 1E01-34-350C 1E01-34-350D 1E01-34-350E 1E01-34-350F 4S613051CA 96FB3051BF 96FB3051BG 98FB3051CC 98FB-3051-CD ME96FB3051CA |
|
 |
CS-328R | FRONT LOWER RH | 1003575 1009580 1015260 1021219 1045655 1052505 1056835 1063236 1071694 1330238 1710792 1E01-34-300 1E01-34-300A 1E01-34-300B 1E01-34-300C 1E01-34-300D 1E01-34-300E 1E01-34-300F 4S613042CA 96FB3042BF 96FB3042BG 98FB3042CC 98FB-3042-CD ME96FB3042CA |
| Model (Year) |
|---|
|
FIESTA Box Body/MPV (J5_, J3_) | COURIER FIESTA Hatchback Van (JV_) | COURIER FIESTA IV (JA_, JB_) |
| Model (Year) |
|---|
|
121 III (JASM, JBSM) |
