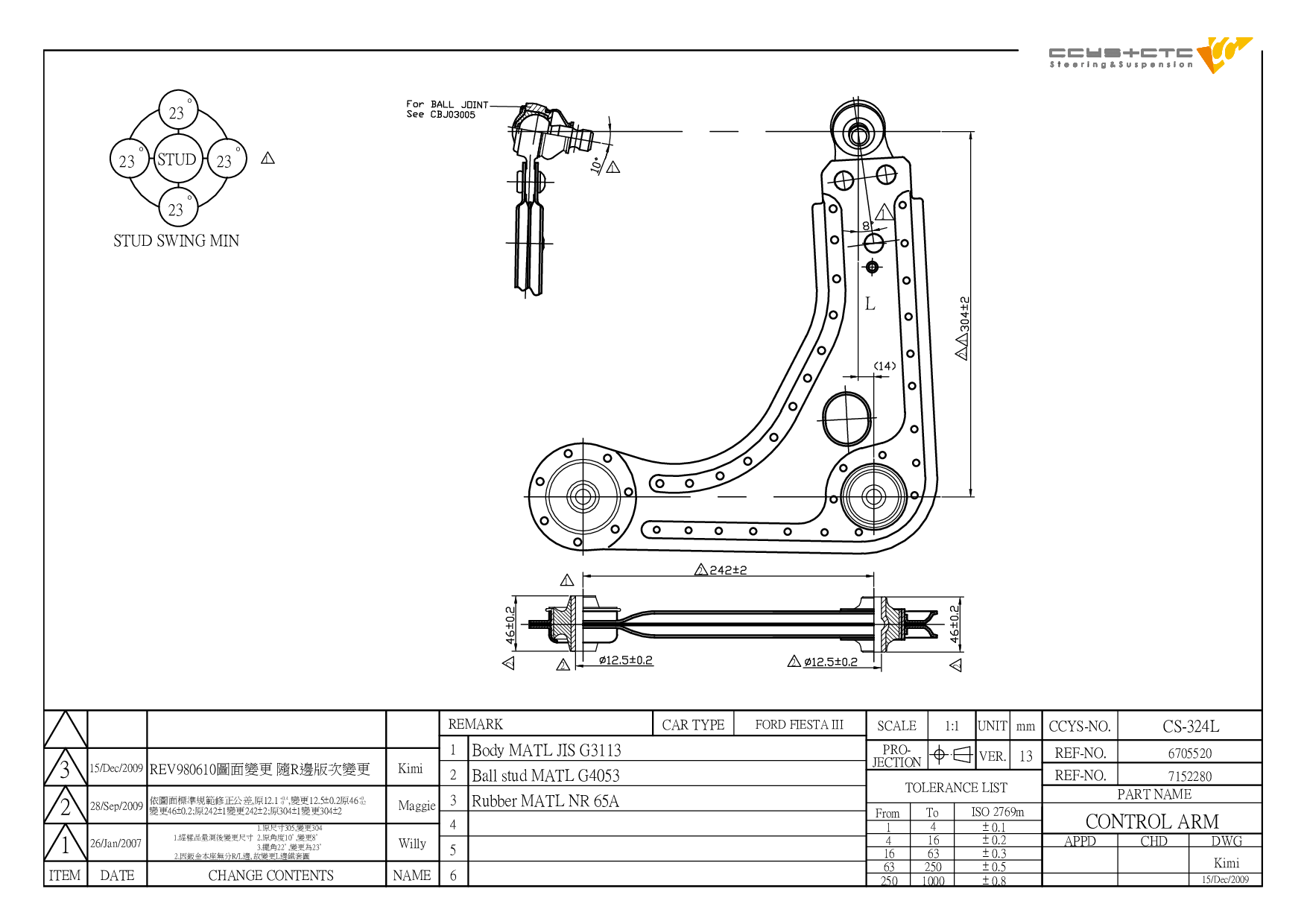

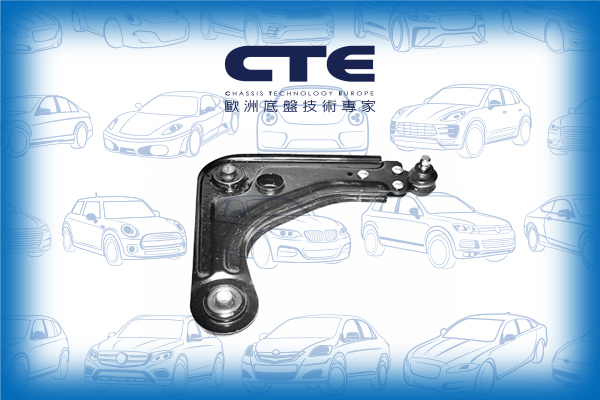

CS-324L
| Designation | Control Arm |
| Position | FRONT LOWER LH |
| OE No. | 1054987 / 6705520 / 7152280 / 94FB3051DA / 94FB3051DB |
| Length | 339.3 mm |
| Width | 377.4 mm |
| Height | 46.8 mm |
| Net Weight | 3.1 kg |
Ford (GFJ) Construction Year to 01.1994 for vehicles without power steering
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH03021 | FRONT LOWER ARM REAR | 1035929 89FB-3A262-AC 91AB-3063-AA 91AB-3A262-AA |
|
 |
CBH03022 | FRONT LOWER ARM INNER | 1000445 1829508 89FB-3063-AD ME89FB-3063-AD |
|
 |
CBH03023 | FRONT LOWER ARM INNER | ||
 |
CBJ03003A | FRONT LOWER LH/ RH | 6615742 6615743 94FB-3395-A1B 95AB-3395-A1A |
|
 |
CBJ03004A | FRONT LOWER LH/ RH | 1030025 1047797 1679398 94FB-3B376-AA 94FB-3B376-AB ME96FB-3395-AA |
|
 |
CBJ03005A | FRONT LOWER LH/ RH | 94FB-3395-A2B |
|
 |
CRE03048 | D= 1/2"-20G, C= M14X1.5 | 1659374 4048739 6639188 6790700 89FB-3L555-BA 91FB-3L519-AA 92FB-3L519-AA XS5C-3L519-AA |
|
 |
CS-318L | FRONT LOWER LH | 6193086 6645156 91FB-3051-AA |
|
 |
CS-318R | FRONT LOWER RH | 6193085 6645154 91FB-3042-AA |
|
 |
CS-319L | FRONT LOWER LH | 7152271 7152279 94FB-3051-AB |
|
 |
CS-319R | FRONT LOWER RH | 7152269 7152276 94FB-3042-AB |
|
 |
CS-320L | FRONT LOWER LH | 7152281 |
|
 |
CS-320R | FRONT LOWER RH | 7152278 |
|
 |
CS-323L | FRONT LOWER LH | 7152272 94FB3051BA |
|
 |
CS-323R | FRONT LOWER RH | 7152270 94FB3042BA |
|
 |
CS-324L | FRONT LOWER LH | 1054987 6705520 7152280 94FB3051DA 94FB3051DB |
|
 |
CS-324R | FRONT LOWER RH | 1054986 6705519 7152277 94FB3042DA 94FB3042DB |
|
 |
CS-346L | FRONT LOWER LH | 1054985 |
|
 |
CS-346R | FRONT LOWER RH | 1054984 |
|
 |
CSL11001 | FRONT (A= 238MM) | 1661237 96FB-3B-438AB |
| Model (Year) |
|---|
|
FIESTA III (GFJ) |
