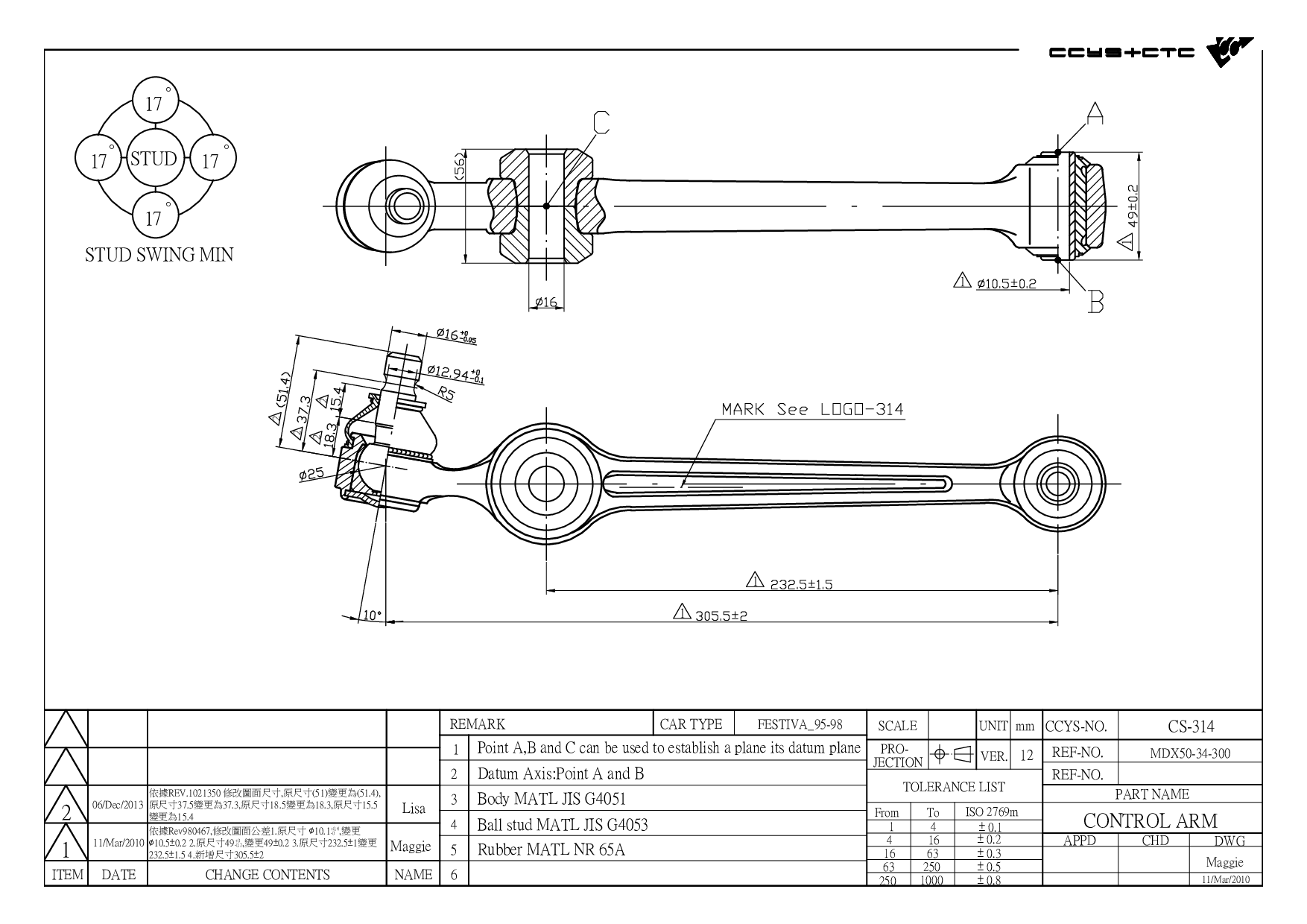

Control Arm

CS-314

Designation Control Arm
Position FRONT LOWER LH/ RH
OE No. D201-34-300C / D201-34-300E / MDX50-34-300
Length 349.6 mm
Width 51.8 mm
Height 87.36 mm
Net Weight 4.6 kg
CTE No. DESIGNATION POSITION OE NO.

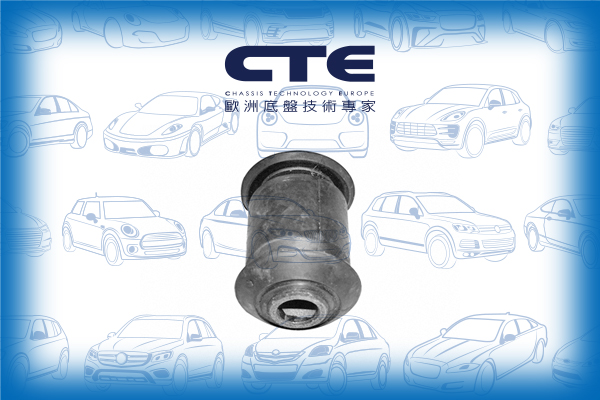

CBH03017 FRONT LOWER ARM INNER
MDX50-34-300

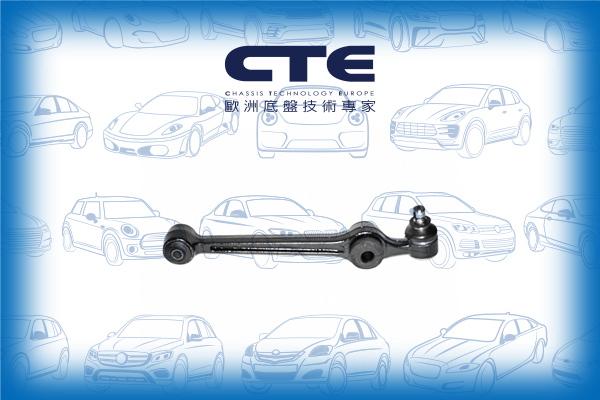

CS-314 FRONT LOWER LH/ RH
D201-34-300C
D201-34-300E
MDX50-34-300

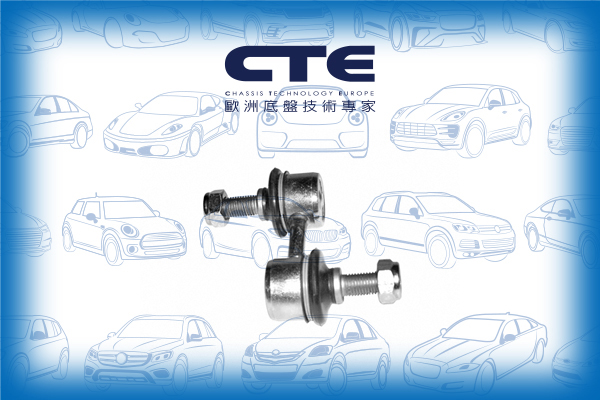

CSL03022 FRONT (A= 55MM)
EA03-34-170
EA03-34-170A
Model (Year)
DEMIO (DW)
