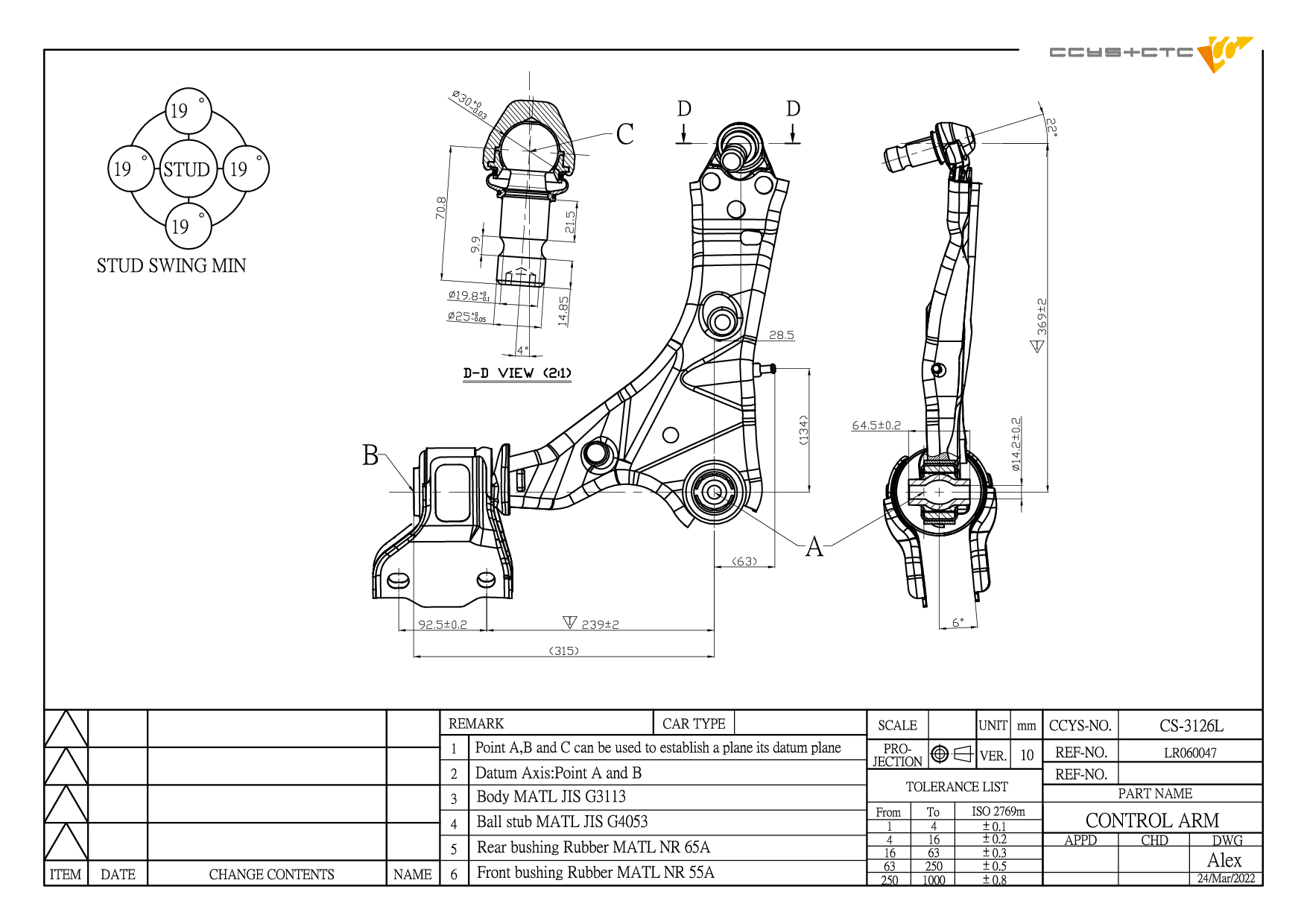

CS-3126L
| Designation | Control Arm |
| Position | FRONT LOWER LH |
| OE No. | LR060047 / LR086108 / LR096362 |
| Length | 510 mm |
| Width | 438 mm |
| Height | 119 mm |
| Net Weight | 7.2 kg |
(L538) for vehicles with heavy duty suspension
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH31023 | REAR AXLE LH/RH | ||
 |
CBH31028 | REAR AXLE ARM | ||
 |
CBH31029 | REAR AXLE ARM | ||
 |
CBJ31009A | FRONT LOWER LH/RH | ||
 |
CS-3118 | REAR AXLE LH/RH | LR002575 LR029576 LR032308 |
|
 |
CS-3119 | REAR AXLE LH/RH | LR002576 LR068326 |
|
 |
CS-3126L | FRONT LOWER LH | LR060047 LR086108 LR096362 |
|
 |
CS-3126R | FRONT LOWER RH | LR060046 LR086107 LR096363 |
|
 |
CSL31015 | REAR AXLE LH/RH | 6H525C486AB LR002876 |
| Model (Year) |
|---|
|
DISCOVERY SPORT (L550) RANGE ROVER EVOQUE (L538) RANGE ROVER EVOQUE Convertible (L538) |
