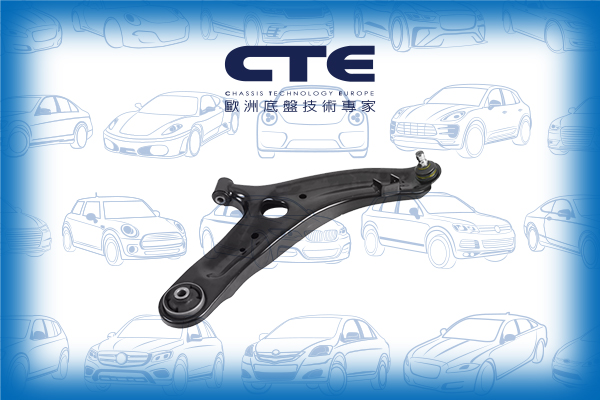

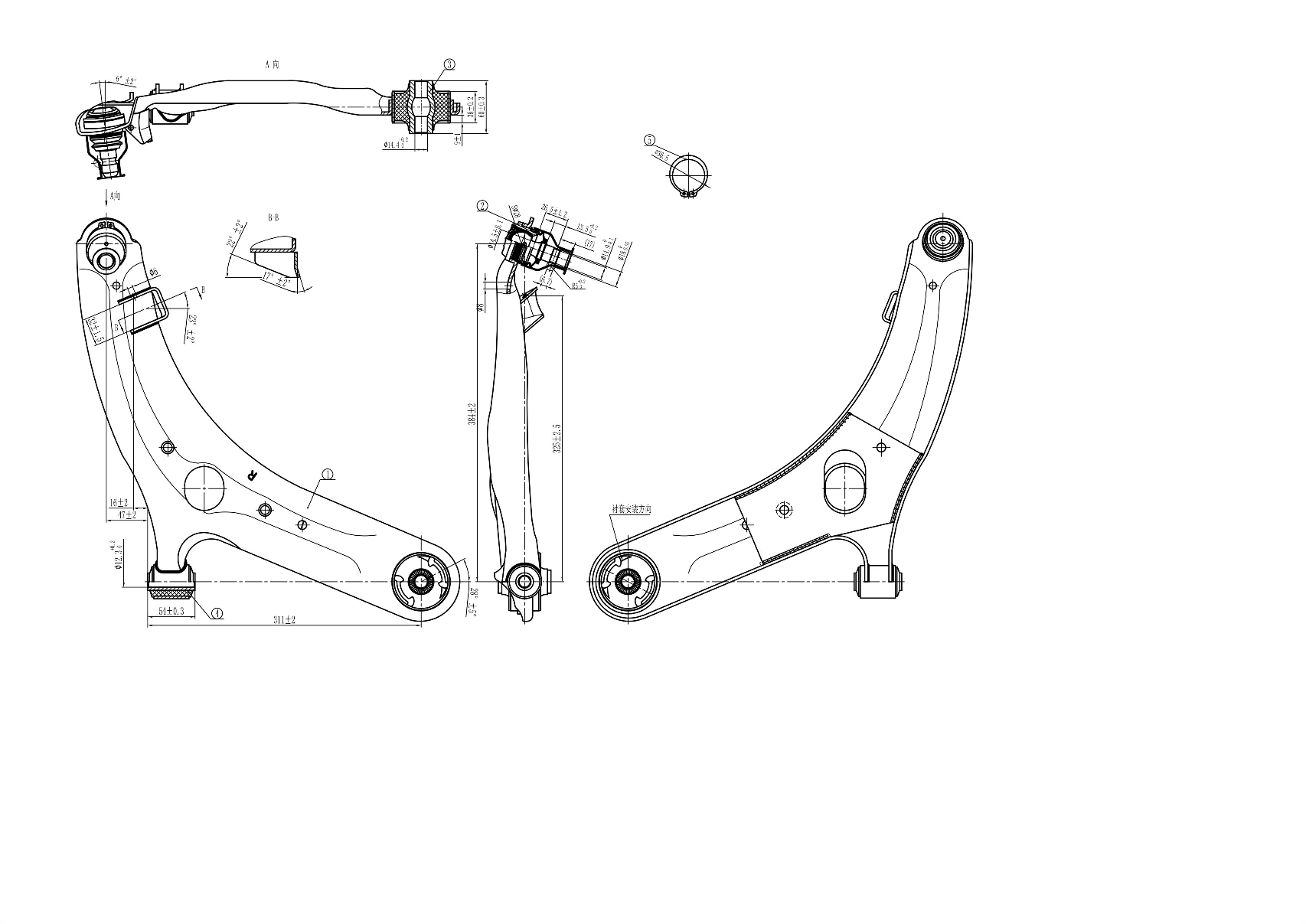

CS-2912L
| Designation | Control Arm |
| Position | FRONT LOWER LH |
| OE No. | 54500-2K200 / 54500-2K500 / 54500-2K600 |
| Length | 458 mm |
| Width | 445 mm |
| Height | 95 mm |
| Net Weight | 3.95 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CS-2912L | FRONT LOWER LH | 54500-2K200 54500-2K500 54500-2K600 |
|
 |

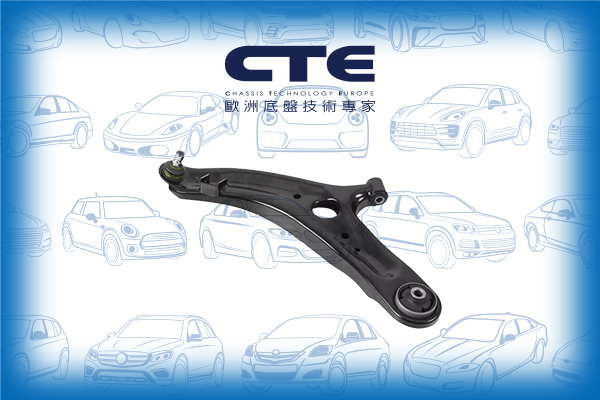

CS-2912R | FRONT LOWER RH | 54501-2K200 54501-2K500 54501-2K600 |
|
 |
CS-2913L | FRONT LOWER LH | 54500-2K200 54500-2K600 |
|
 |
CS-2913R | FRONT LOWER RH | 54501-2K200 54501-2K600 |
|
 |
CSL02056 | FRONT (A= 285MM) | 1064000097 20984481 48820-02030 48820-02040 48820-02050 48820-02100 48820-47010 48820-58010 54618-BA60A 54618-BA60B 54618-CY00A 54618-EN000 54830-0U000 54830-2V000 54830-4L000 54830-A6000 88970146 |
| Model (Year) |
|---|
|
SOUL I (AM) |
