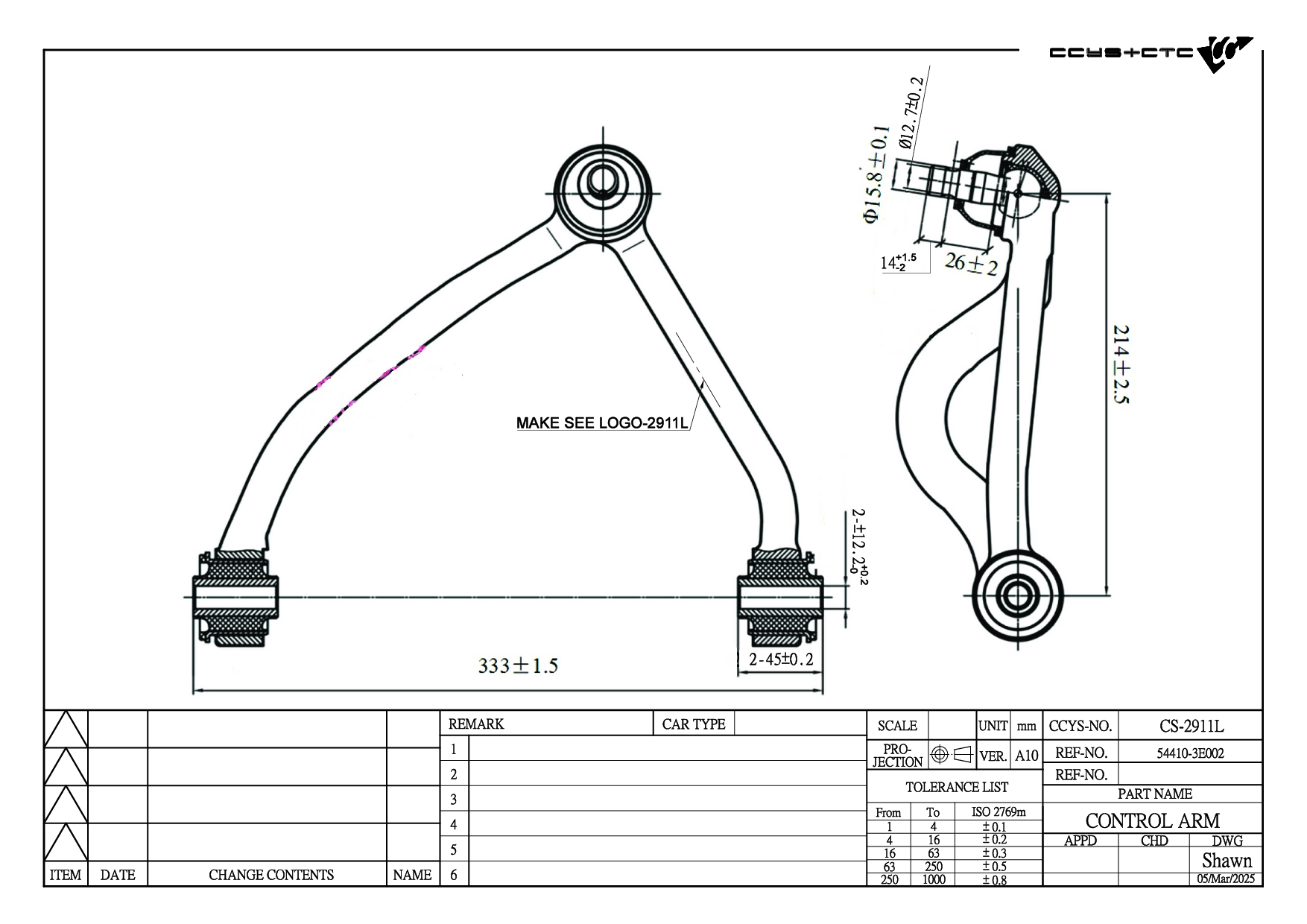

CS-2911L
| Designation | Control Arm |
| Position | FRONT UPPER LH |
| OE No. | 54410-3E000 / 54410-3E001 / 54410-3E002 |
| Length | 334 mm |
| Width | 270 mm |
| Height | 90 mm |
| Net Weight | 2.32 kg |
KIA Sorento I (JC) VIN Code JC521
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH29011 | FRONT LOWER ARM INNER | 54580-3E000 54580-3E001 54580-3E002 54580-3E100 |
|
 |
CS-2910L | FRONT LOWER LH | 54510-3E000 54510-3E001 54510-3E002 54510-3E003 54510-3E100 54510-3E150 |
|
 |
CS-2910R | FRONT LOWER RH | 54520-3E000 54520-3E001 54520-3E002 54520-3E003 54520-3E100 54520-3E150 |
|
 |
CS-2911L | FRONT UPPER LH | 54410-3E000 54410-3E001 54410-3E002 |
|
 |
CS-2911R | FRONT UPPER RH | 54420-3E000 54420-3E001 54420-3E002 |
| Model (Year) |
|---|
|
SORENTO I (JC) SORENTO I VAN (JC) |
