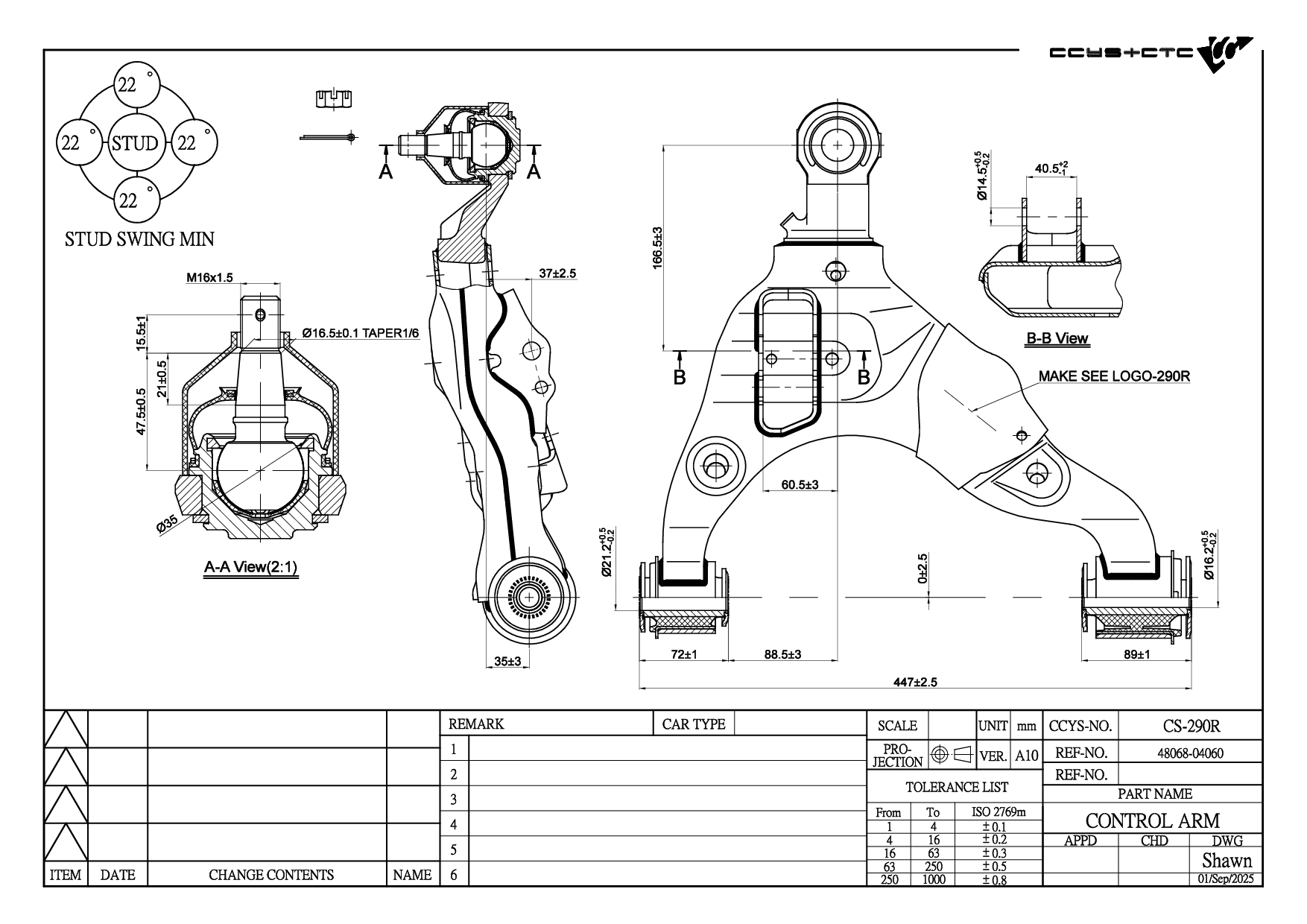

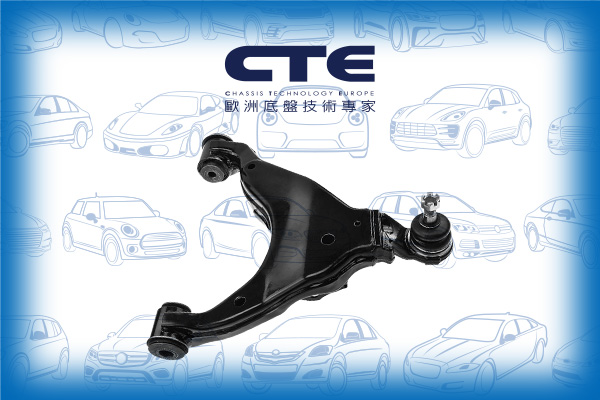

CS-290R
| Designation | Control Arm |
| Position | FRONT LOWER RH |
| OE No. | 48068-04060 |
| Length | 447 mm |
| Width | 439 mm |
| Height | 144 mm |
| Net Weight | 7.63 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH02094 | FRONT LOWER ARM | 48068-04030 48068-04040 48068-04060 48069-04030 48069-04040 48069-04060 |
|
|
CBH02095 | FRONT LOWER ARM | 48068-04030 48068-04040 48068-04060 48069-04030 48069-04040 48069-04060 |
|
|
CBJ02024 | FRONT LOWER LH/RH | 43330-09295 43330-09490 43330-09510 48068-04030 48068-04040 48068-04060 48068-0K040 48068-0K050 48068-0K090 48069-04030 48069-04040 48069-04060 48069-0K040 48069-0K050 48069-0K090 |
|
 |
CRE02091 | FRONT AXLE LH/ RH | 45503-09490 45503-09520 45503-09550 |
|
 |

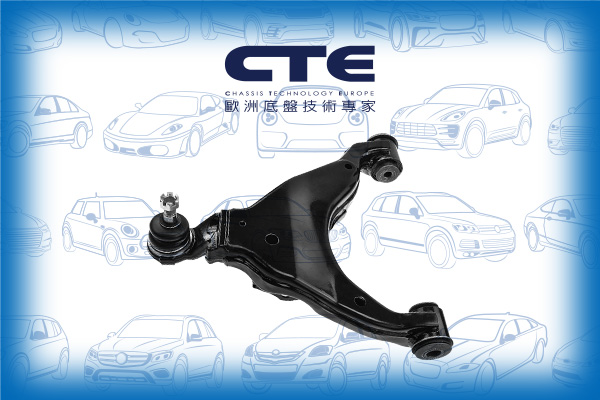

CS-290L | FRONT LOWER LH | 48069-04060 |
|
 |
CS-290R | FRONT LOWER RH | 48068-04060 |
| Model (Year) |
|---|
|
TACOMA Pickup (_N3_) |
