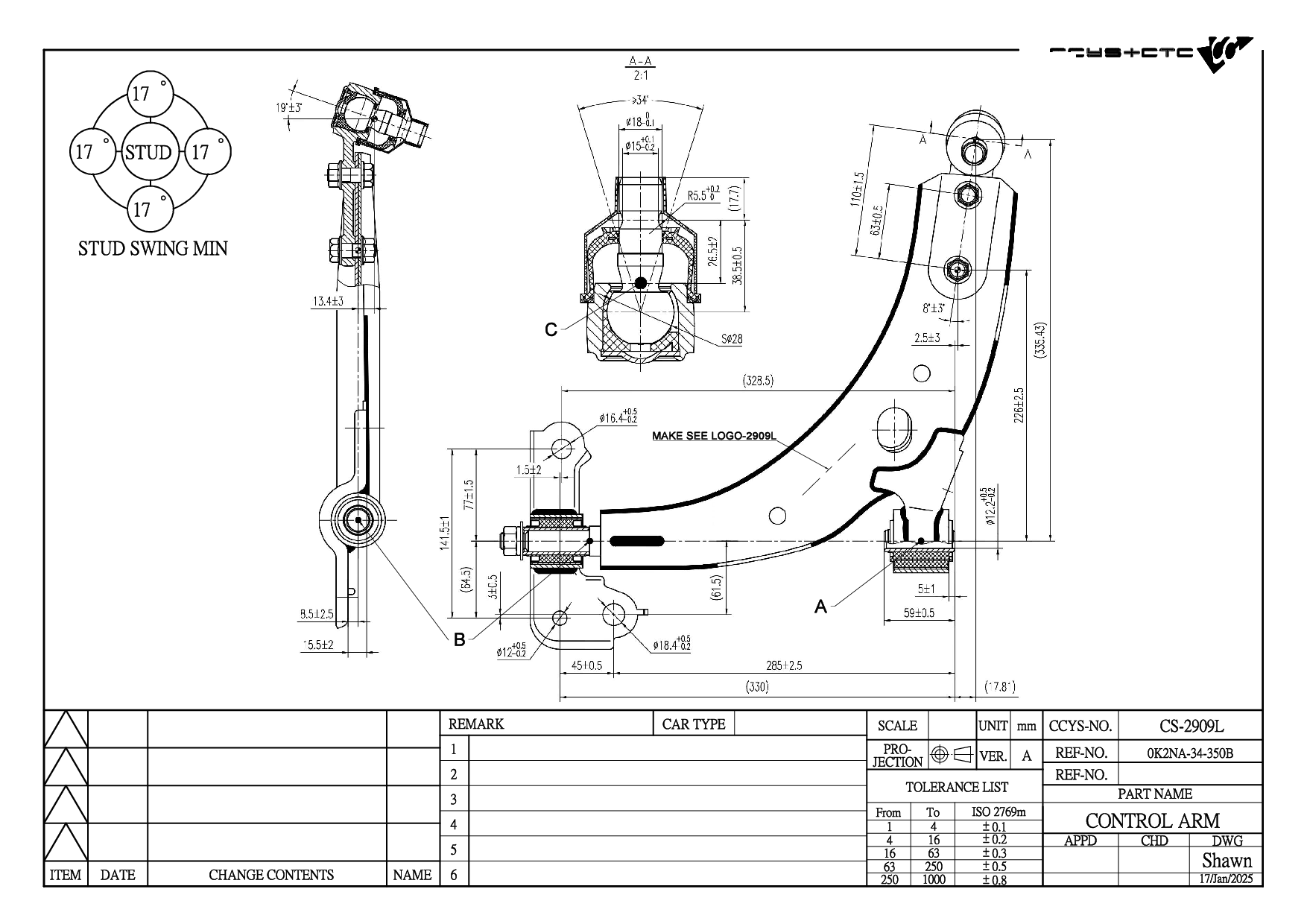

CS-2909L
| Designation | Control Arm |
| Position | FRONT LOWER LH |
| OE No. | 0K2C0-34-350 / 0K2C0-34-350A / 0K2NA-34-350 / 0K2NA-34-350A / 0K2NA-34-350B / 0K2NA-34-350P / OK2C0-34-350 / OK2NA-34-350 / OK2NA-34-350A / OK2NA-34-350B |
| Length | 380 mm |
| Width | 457 mm |
| Height | 91 mm |
| Net Weight | 4.93 kg |
KIA Shuma (AFB222) construction year from 06.1999 to 03.2001
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBJ05010 | FRONT LOWER LH/ RH | 4013A033 4013A034 4013A175 AW 311699 MB 133618 MB 241883 MB 349963 MB 349964 MB 518041 MB 518042 MB 518205 MB 518712 MB 518713 MB 518960 MB 518961 MB 573093 MB 573094 MB 573098 MB 860817 MB 860818 MB 891787 MB 891788 MN 133617 |
|
 |
CBJ26003 | FRONT LOWER LH/RH | 54503-22000 54503-22A00 54503-25A00 54503-31600 54503-38A00 54520-31600 54530-0U000 54530-25000 54530-25A00 54530-2F000 54530-31600 |
|
 |
CRE26011 | FRONT AXLE LH/ RH | 57724-2E000 |
|
 |
CRE26016 | FRONT AXLE LH/ RH | 57724-1M000 |
|
 |
CRE29006 | FRONT AXLE LH/ RH | 56540-A7000 |
|
 |
CS-2644L | FRONT LOWER LH | 54500-0Q000 |
|
 |
CS-2644R | FRONT LOWER RH | 54501-0Q000 |
|
 |
CS-2909L | FRONT LOWER LH | 0K2C0-34-350 0K2C0-34-350A 0K2NA-34-350 0K2NA-34-350A 0K2NA-34-350B 0K2NA-34-350P OK2C0-34-350 OK2NA-34-350 OK2NA-34-350A OK2NA-34-350B |
|
 |
CS-2909R | FRONT LOWER RH | 0K2C0-34-300 0K2C0-34-300A 0K2NA-34-300 0K2NA-34-300A 0K2NA-34-300B OK2C0-34-300 OK2NA-34-300 OK2NA-34-300A OK2NA-34-300B |
|
 |
CSL01044 | FRONT AXLE LH/ RH | 52320-SJK-003 |
|
 |
CSL02056 | FRONT (A= 285MM) | 1064000097 20984481 48820-02030 48820-02040 48820-02050 48820-02100 48820-47010 48820-58010 54618-BA60A 54618-BA60B 54618-CY00A 54618-EN000 54830-0U000 54830-2V000 54830-4L000 54830-A6000 88970146 |
|
 |
CSL26031 | REAR AXLE LH/ RH | 55530-17000 55530-17010 55530-29000 55530-29300 55530-29500 |
|
 |
CSL29012L | FRONT AXLE LH | 54830-2F000 |
|
|
CSL29012R | FRONT AXLE RH | 54840-2F000 |
|
 |
CTE26001 | FRONT AXLE LH/ RH (C= M14X1.5) | 56820-22000 56820-25000 56820-28500 56820-28520 56820-29500 56820-2F000 56820-37000 56820-37010 56820-3B000 57780-3B000 |
| Model (Year) |
|---|
|
CARENS I MPV (FC, FJ) CERATO I Saloon (LD) | SPECTRA CERATO Saloon (FB) | SPECTRA SHUMA I (FB) | SEPHIA SHUMA II (FB) SHUMA II Saloon (FB) SHUMA Saloon (FB) | SEPHIA |
