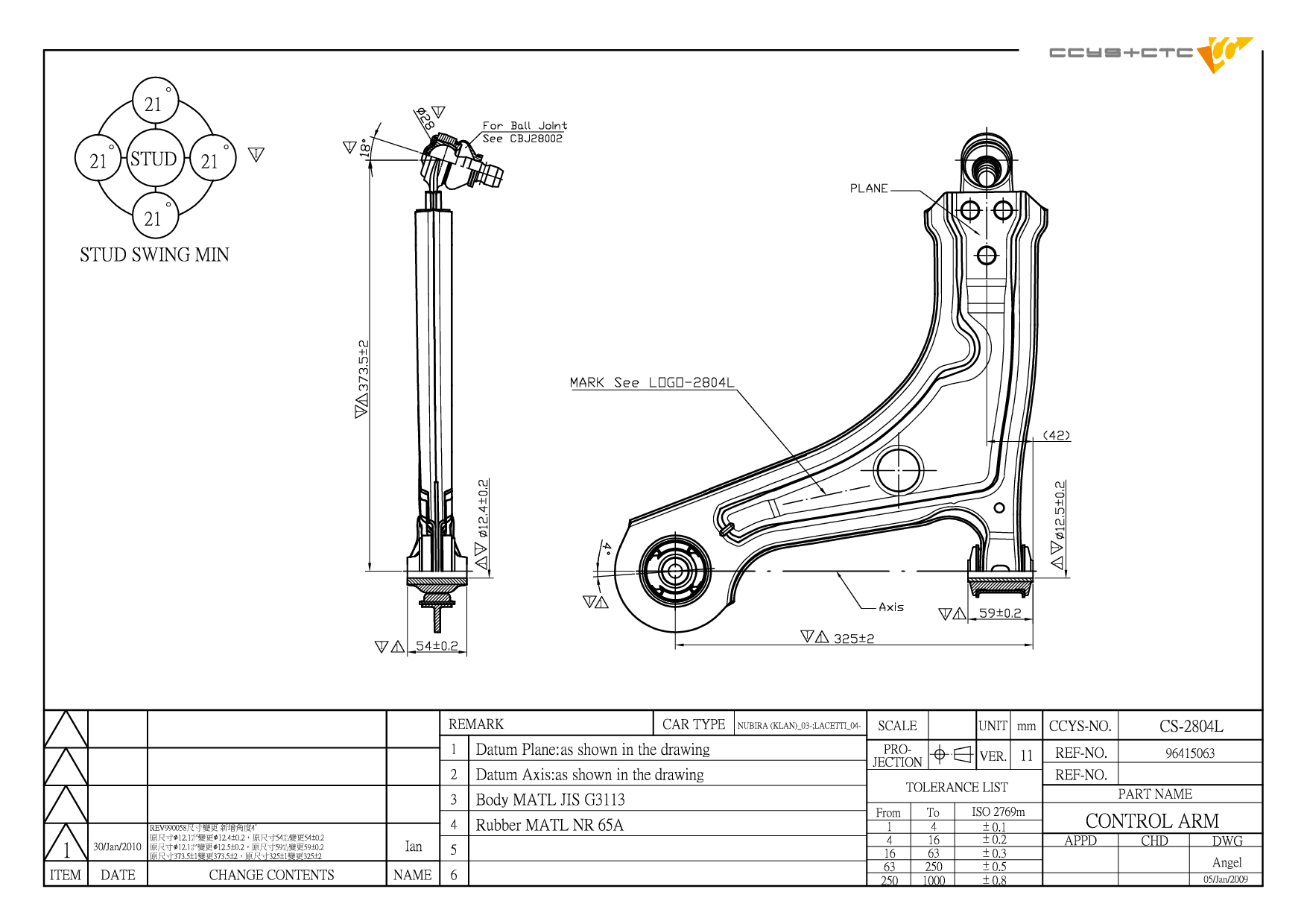

CS-2804L
| Designation | Control Arm |
| Position | FRONT LOWER LH |
| OE No. | 7476162 / 96391850 / 96391850D / 96415063 / 96415063D |
| Length | 453.7 mm |
| Width | 393.2 mm |
| Height | 87 mm |
| Net Weight | 3.91 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH28003 | FRONT LOWER ARM REAR | 96391856 |
|
 |
CBH28004 | FRONT LOWER ARM INNER | 96378346 |
|
 |
CBJ28002A | FRONT LOWER LH/ RH | 19347692 45201-85Z00 45201-85Z01 45202-85Z00 45202-85Z01 45700-85Z00 96413122 96490218 96490218 SK |
|
 |
CS-2804L | FRONT LOWER LH | 7476162 96391850 96391850D 96415063 96415063D |
|
 |
CS-2804R | FRONT LOWER RH | 7476161 96391851 96391851D 96415064 96415064D |
|
 |
CSL02002 | REAR (A= 205MM) | 48830-32030 |
|
 |
CSL28006 | REAR LH/RH | 96561754 |
|
 |
CSL28008L | FRONT AXEL LH | 46640-85Z00 96403099 |
|
|
CSL28008R | FRONT AXEL RH | 46630-85Z00 96403100 |
|
 |
CSL28010 | REAR LH/RH | 96561754 |
| Model (Year) |
|---|
|
LACETTI (J200) LACETTI Estate (J200) LACETTI Saloon (J200) NUBIRA Estate | ESTATE NUBIRA Saloon |
| Model (Year) |
|---|
|
LACETTI Hatchback (KLAN) NUBIRA Saloon (J100) NUBIRA Saloon (J200) NUBIRA Wagon (J100) | ORION NUBIRA Wagon (J200) |
