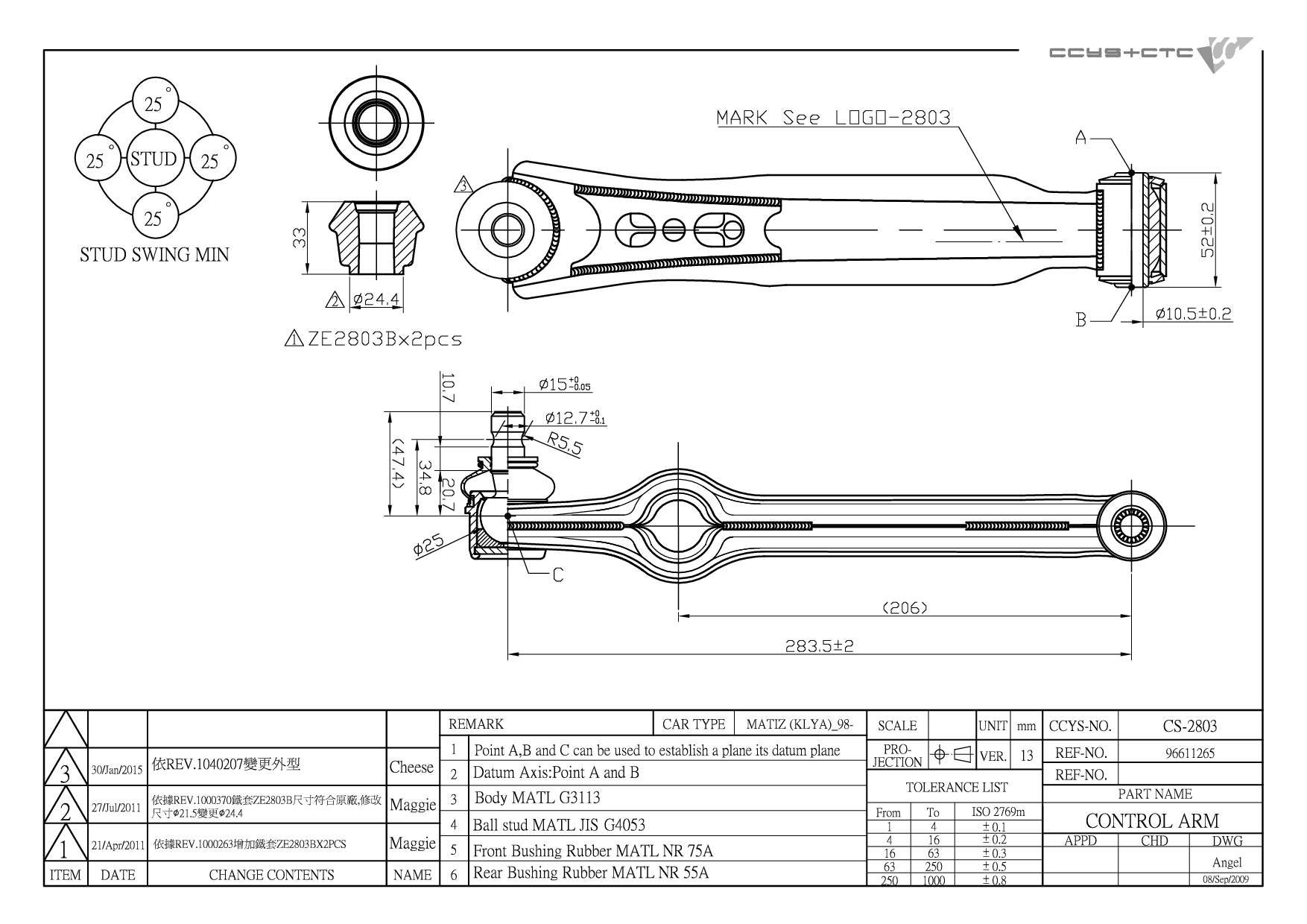

CS-2803
| Designation | Control Arm |
| Position | FRONT LOWER LH/ RH |
| OE No. | 96611265 |
| Length | 322.7 mm |
| Width | 60.1 mm |
| Height | 76.6 mm |
| Net Weight | 1.18 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH07001 | FRONT LOWER ARM INNER | 009208989 009212533 09208989 09212533 09319-10030 09319-10030-000 09319M10002 09319M10030 09319M10030000 09319M10030-000 45261-77A00 45261-77A00-000 45261-77A10 45261-77A10-000 45261-84E00 4526184E00000 45261A-78B00 47 03 866 47 06 664 9208989 9212533 963 |
|
 |
CBH28007 | FRONT LOWER ARM OUTER | 963805860 |
|
 |
CS-2803 | FRONT LOWER LH/ RH | 96611265 |
|
 |
CTE03009 | FRONT AXLE LH/ RH (C= M12X1.25) | 009204751 009210168 009210351 09204751 09210168 09210351 47 01 744 47 05 655 47 05 716 47 09 195 485204A00B 48810-60810 48810-60J00 48810-63J00 48810-83E00 48810-83E00-000 48810-83E01 48810-83E01-000 48810-83E02 48810-83E02-000 48810-84M00 48810-84M00-000 |
| Model (Year) |
|---|
|
MATIZ (M200, M250) SPARK SPARK (M150) | MATIZ SPARK (M400) |
| Model (Year) |
|---|
|
MATIZ (M100, M150) |
