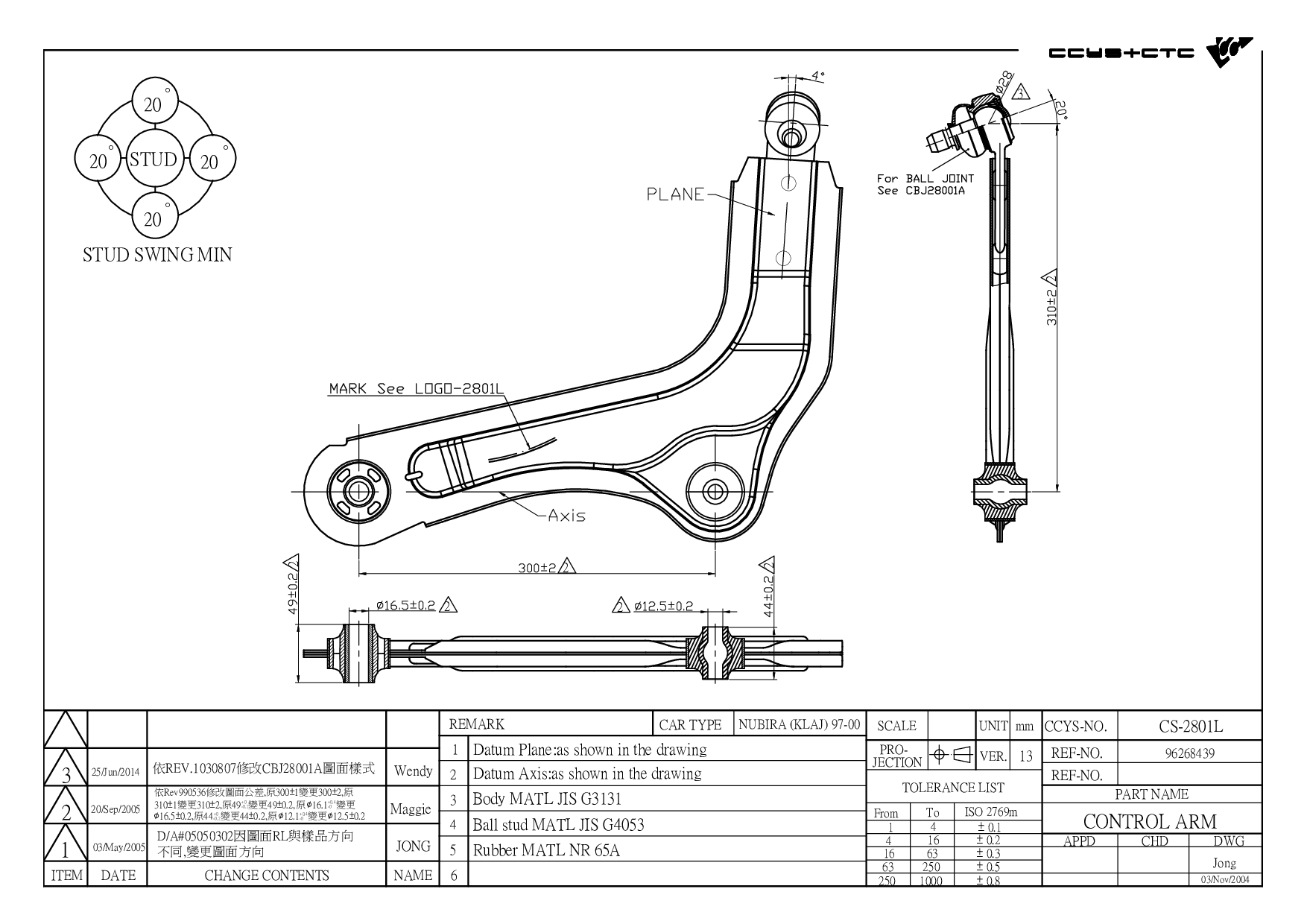

CS-2801L
| Designation | Control Arm |
| Position | FRONT LOWER LH |
| OE No. | 96268439 / 96269454 / 96305974 |
| Length | 383 mm |
| Width | 454 mm |
| Height | 87.6 mm |
| Net Weight | 3.8 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH28001 | FRONT LOWER ARM REAR | 96308002 |
|
 |
CBH28002 | FRONT LOWER ARM INNER | 96259768 96298000 96492383 |
|
 |
CBH28003 | FRONT LOWER ARM REAR | 96391856 |
|
 |
CBH28004 | FRONT LOWER ARM INNER | 96378346 |
|
 |
CBJ28001A | FRONT LOWER LH/ RH | 0K20134550B 0K20134550C 0K20134550D 0K20134550E 5043202 5043212 96300030 96300048 96300648 B00134550 B09234550 B092345509A E7GZ3050A |
|
 |
CS-2801L | FRONT LOWER LH | 96268439 96269454 96305974 |
|
 |
CS-2801R | FRONT LOWER RH | 96268430 96268440 96305975 |
|
 |
CS-2802L | FRONT LOWER LH | 96268454 |
|
 |
CS-2802R | FRONT LOWER RH | 96268455 |
|
 |
CS-2804L | FRONT LOWER LH | 7476162 96391850 96391850D 96415063 96415063D |
|
 |
CS-2804R | FRONT LOWER RH | 7476161 96391851 96391851D 96415064 96415064D |
|
 |
CSL02002 | REAR (A= 205MM) | 48830-32030 |
|
 |
CSL28004 | FRONT (A= 267MM) | 96300627 |
|
 |
CSL28005 | REAR (A= 246MM) | 96300222 96391876 |
| Model (Year) |
|---|
|
LACETTI Saloon NUBIRA (J100) | ORION NUBIRA Saloon (J100) NUBIRA Wagon (J100) | ORION |
