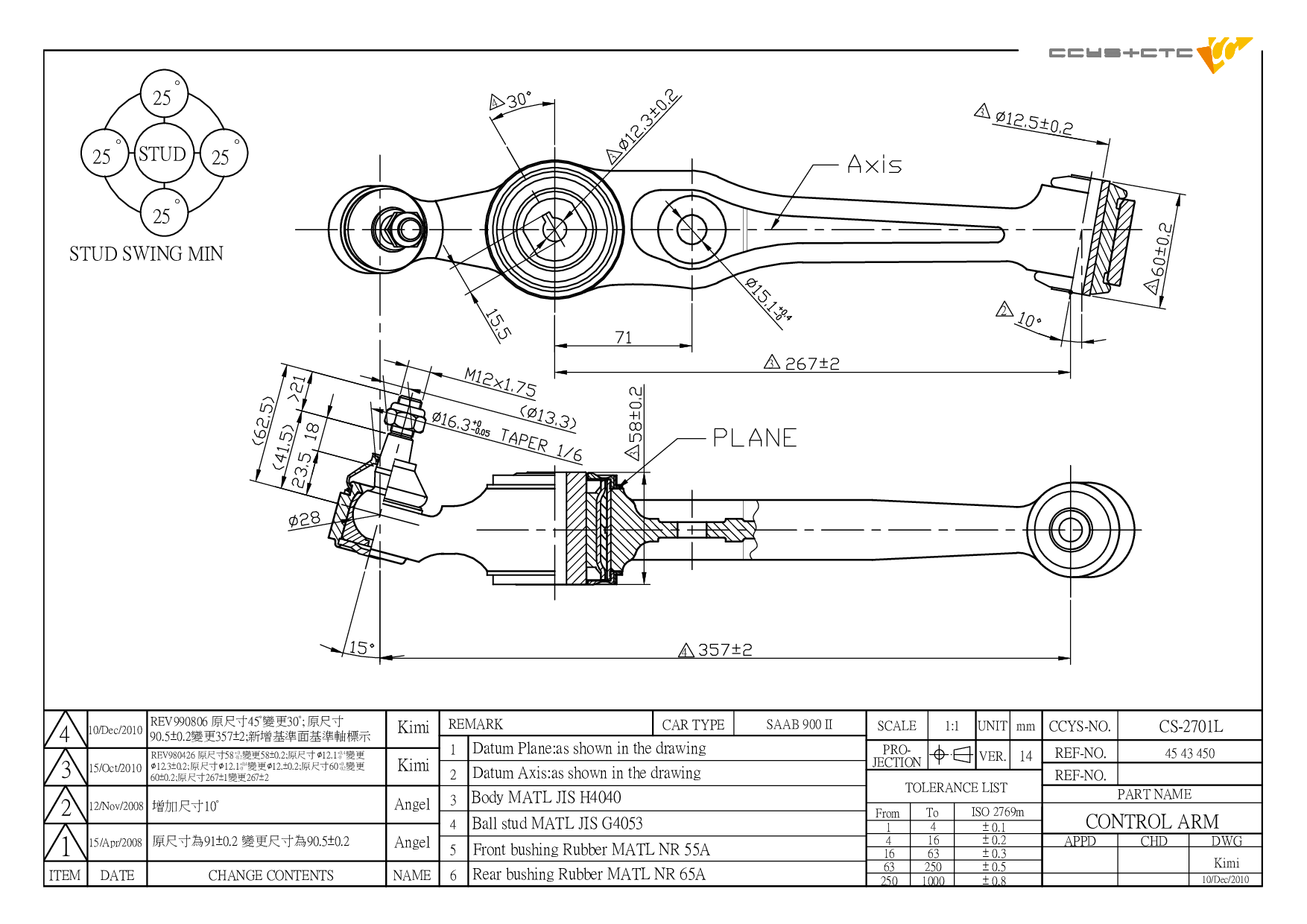

CS-2701L
| Designation | Control Arm |
| Position | FRONT LOWER LH |
| OE No. | 45 43 450 |
| Length | 417.1 mm |
| Width | 98 mm |
| Height | 71.7 mm |
| Net Weight | 1.7 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |

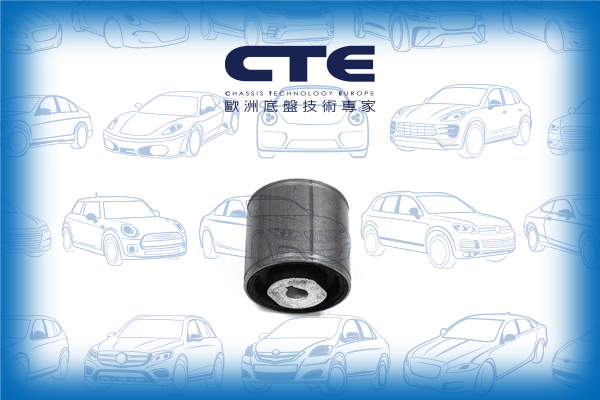

CBH27003 | FRONT LOWER ARM OUTER | 4545711 |
|
 |

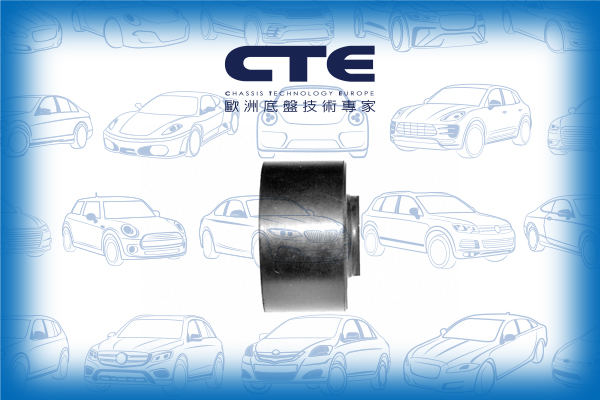

CBH27005 | REAR AXLE | 4246112 |
|
 |
CBH27007 | REAR AXLE | 44 82 402 |
|
 |

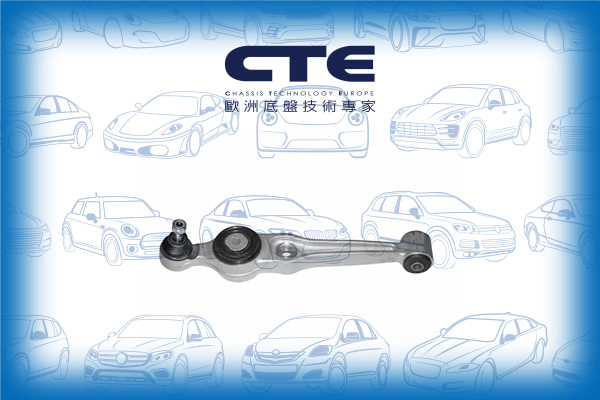

CS-2701L | FRONT LOWER LH | 45 43 450 |
|
 |

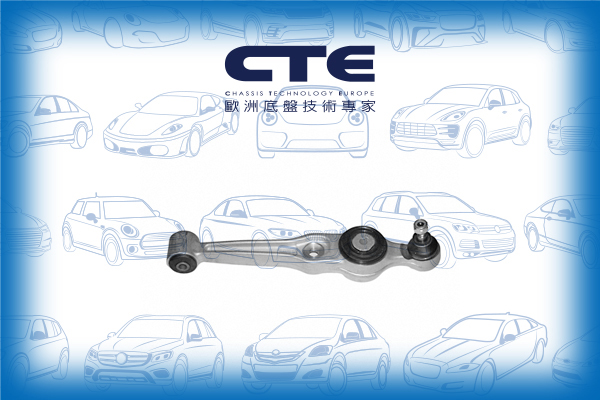

CS-2701R | FRONT LOWER RH | 45 43 468 |
|
 |
CS-2703L | REAR LOWER LH | 45 43 476 4544995 4647004 |
|
 |
CS-2703R | REAR LOWER RH | 45 43 484 4545000 4647012 |
|
 |
CSL27005 | FRONT (A= 88MM) | 0 350 263 03 50 263 S1 3 50 263 S1 4544599 90495045 90495045 S1 |
| Model (Year) |
|---|
|
9-3 (YS3D) 900 II |
